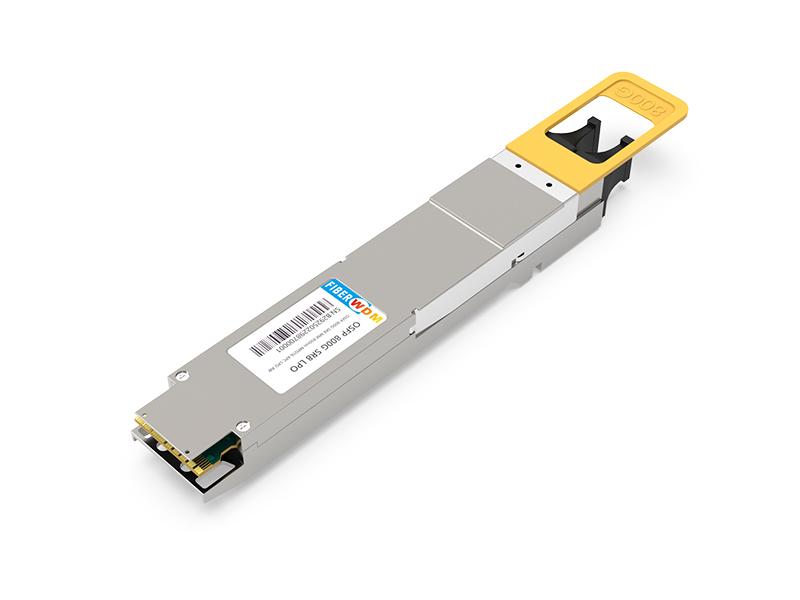

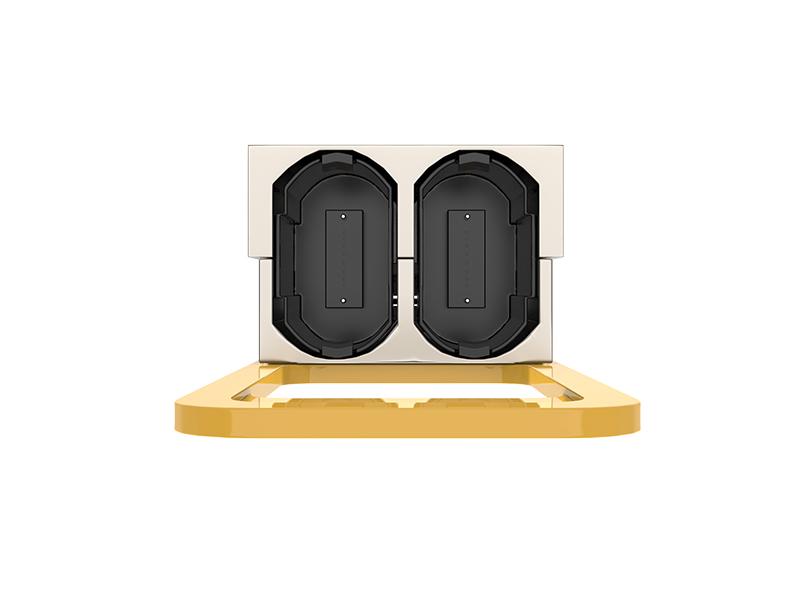

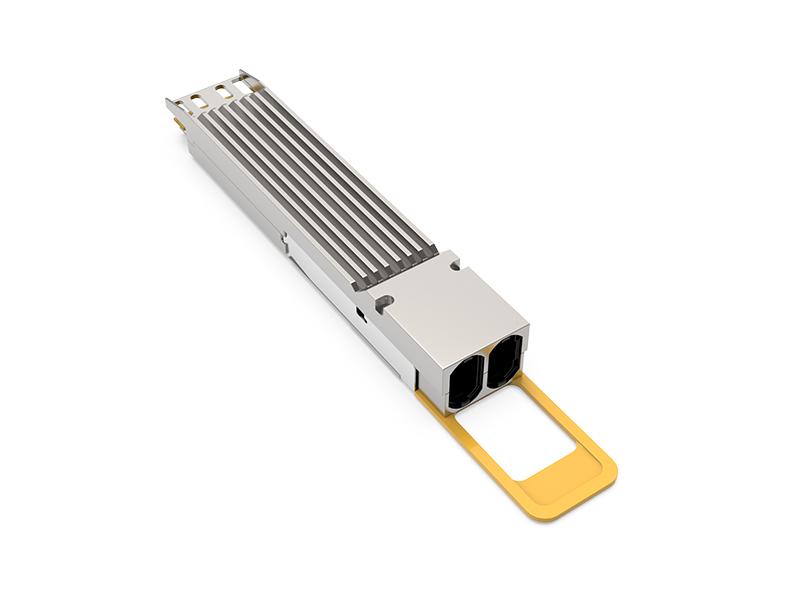

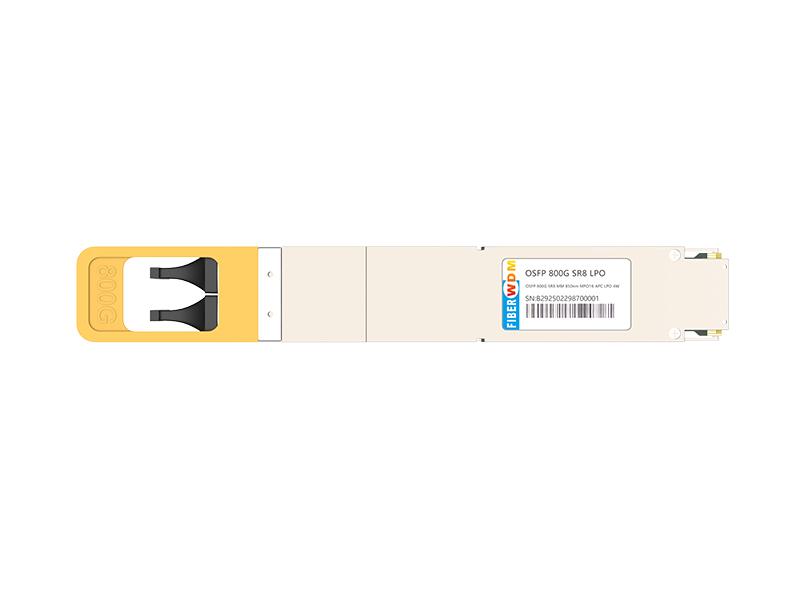

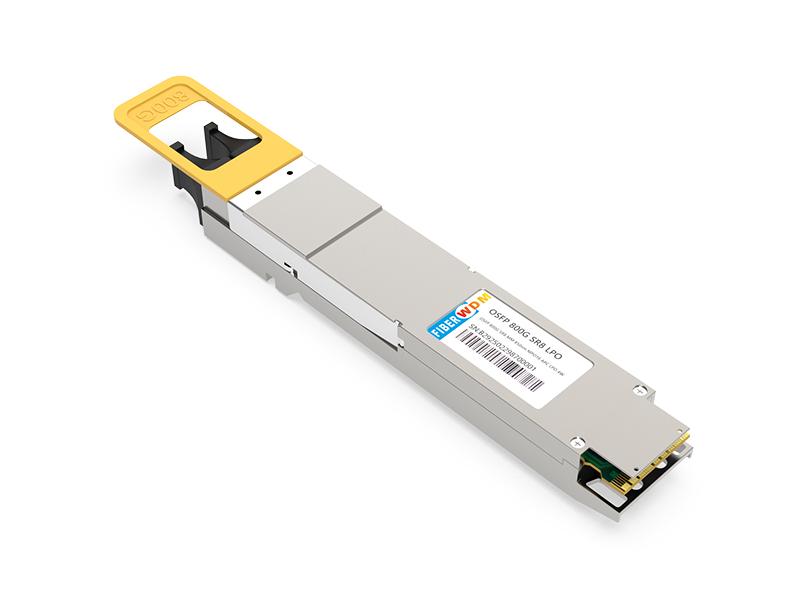

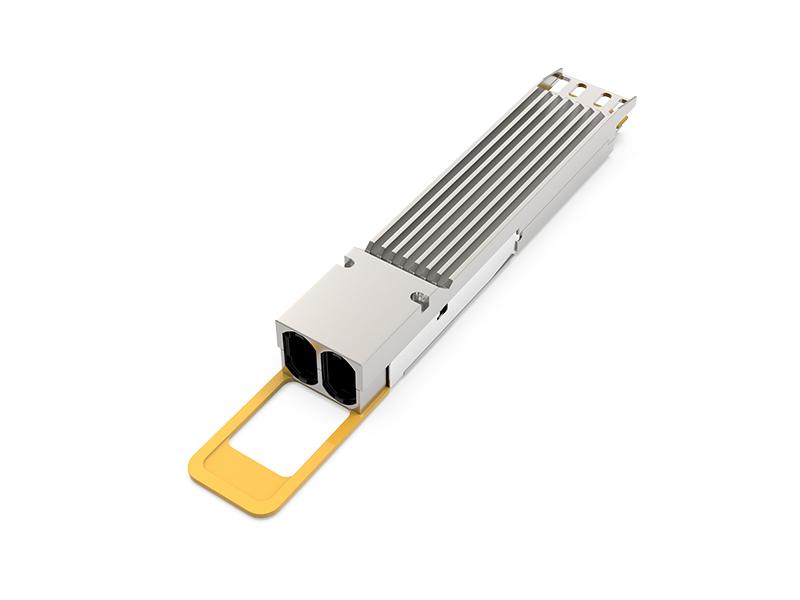

800G SR8 OSFP LPO Transceiver
800G SR8 OSFP LPO Transceiver 800G SR8 OSFP LPO Transceiver 800G SR8 OSFP LPO Transceiver 800G SR8 OSFP LPO Transceiver 800G SR8 OSFP LPO Transceiver 800G SR8 OSFP LPO Transceiver

800G-SR8 OSFP LPO Transceiver

FEATURES：

  • Hot-pluggable OSFP 800G SR8 multimode transceiver
  • Compliant with OSFP MSA Type2 flat top
  • Compliant with CMIS Rev 4.0 or above revision
  • Integrated 850nm VCSEL array and PD array w/o DSP or CDR
  • MPO-16 APC receptacles  Maximum power consumption 4W
  • Single 3.3V power supply
  • Case operating temperature 0°C to 70°C
Inquire now Download
  • Product Detail

800G-SR8 OSFP LPO Transceiver



Absolute Maximum Ratings



Paramete Symbo Min Max Unit

Storage Temperature

TS

-40

85

ºC

Supply Voltage

VCC

-0.5

3.6

 V

Relative Humidity (non-condensing)

RH

5

95

 %



Recommended Operating Conditions



Parameter

 Symbol

Min.

Typical

Max.

Unit

Notes

Operating Case Temperature

TOPR

0

   70 ℃

Power Supply Voltage

VCC

3.135

 3.3

3.465

 V

Maximum Power Dissipation

PD

     4 W

Signaling Rate per Lane

SRL



53.125



GBd

PAM4



Transmitter Optical Specifications



Parameter

Symbol

Min.

 Typical Max. Unit

Wavelength

λC

844

 850 863

nm

RMS spectral width

∆λrms



0.6

nm

Average Launch Power, each lane

AOPL

 -1.0   3.0

dBm

Average Launch Power of OFF Transmitter, each lane

TOFF

     -30

dBm

Extinction Ratio, each lane

ER

   3

dB

Optical Return Loss Tolerance

ORL

     14

dB

Transmitter Reflectance

TR

     -26

dB



Receiver Optical Specifications



Parameter Symbol Min. Typical Max. Unit

Wavelength

λC

842

 850 863

nm

Damage Threshold, average optical power, each lane

AOPD

 5

dBm

Average Receive Power, each lane

AOPR

 -6.3   4.0

dBm

Receive Power (OMAouter), each lane

OMAR

     3.5

dBm

Receiver Reflectance

RR

     -20

dB

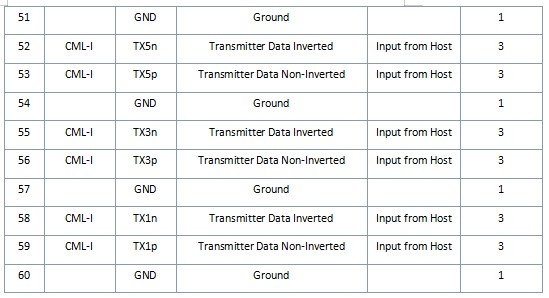

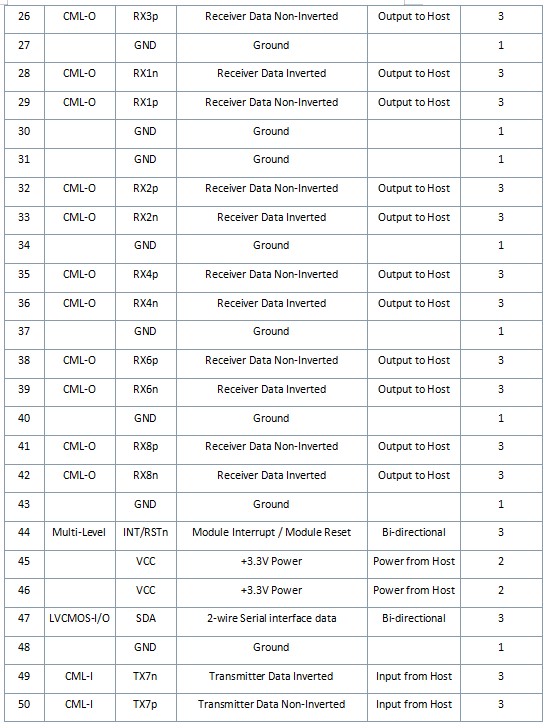

Pin Definitions



800G LPO Transceiver

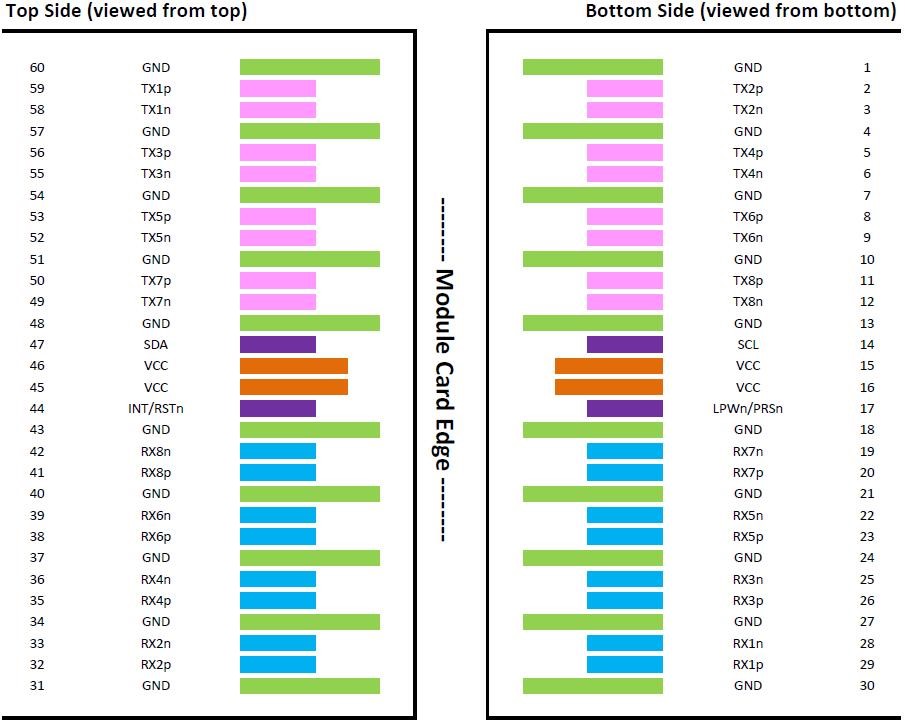

Figure 1 – OSFP module Pinou



800G LPO Transceiver800G LPO Transceiver800G LPO Transceiver



Mechanical Dimensions



800G SR8 OSFP LPO

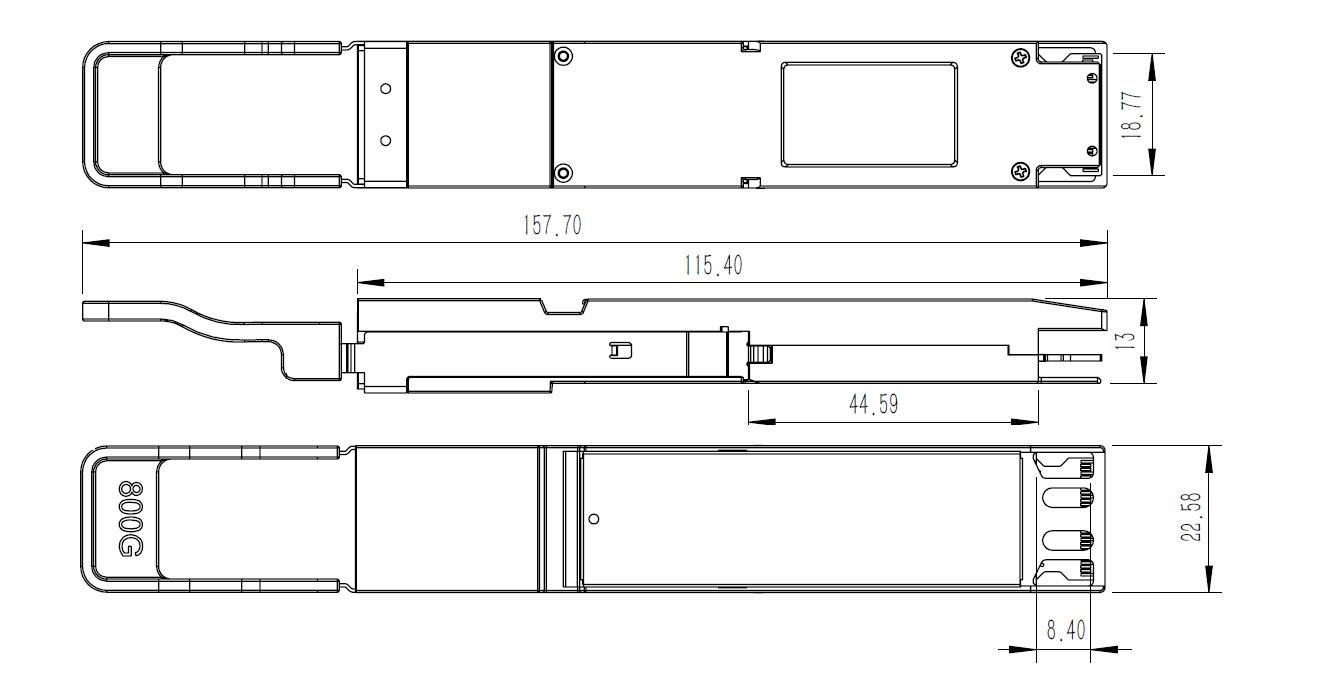

Figure 2 – Mechanical Dimensions.



Ordering Information



Part Number

Description

OSFP-800G-LPO-SR8

800Gb/s, OSFP, MPO16, 850nm MMF, SR8, LPO, Type2 flat top
