The 4ch O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜1.5dB; ). Waves are 1295.56/300.05/1303.58/1309.14nm, support 4CH business on two fiber transmission.

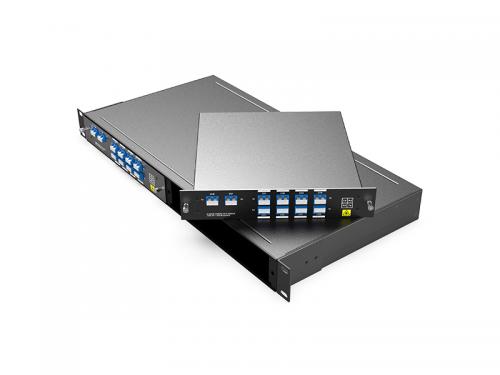

The 8ch O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.0dB; ). Waves are 1304.58/1305.72/1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm, support 8CH business on two fiber transmission.
The 8ch O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.0dB; ). Waves are 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45nm, support 8CH business on two fiber transmission.

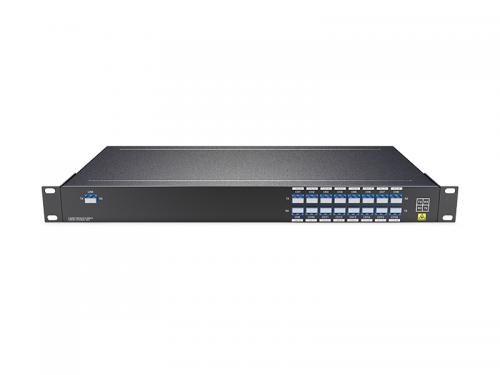

The 16ch O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜4.8dB; ). Waves are 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45/1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm, support 16CH business on two fiber transmission.
