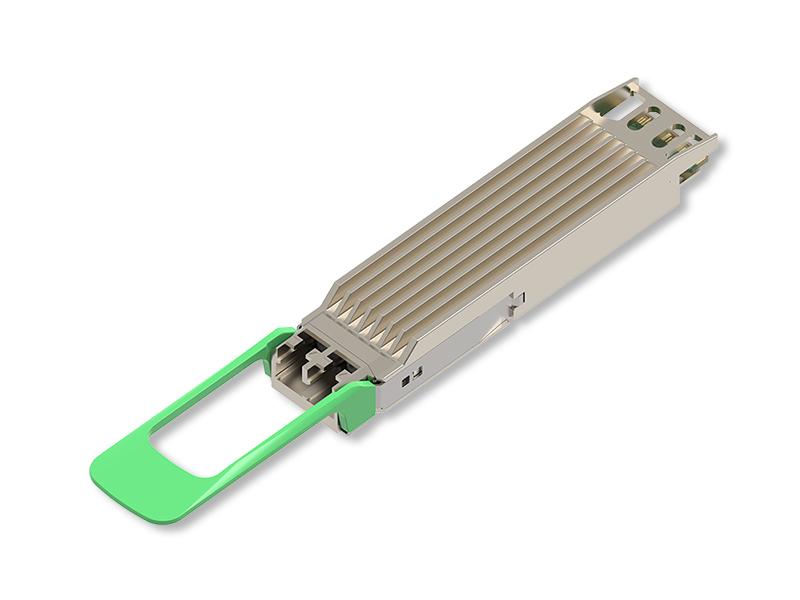

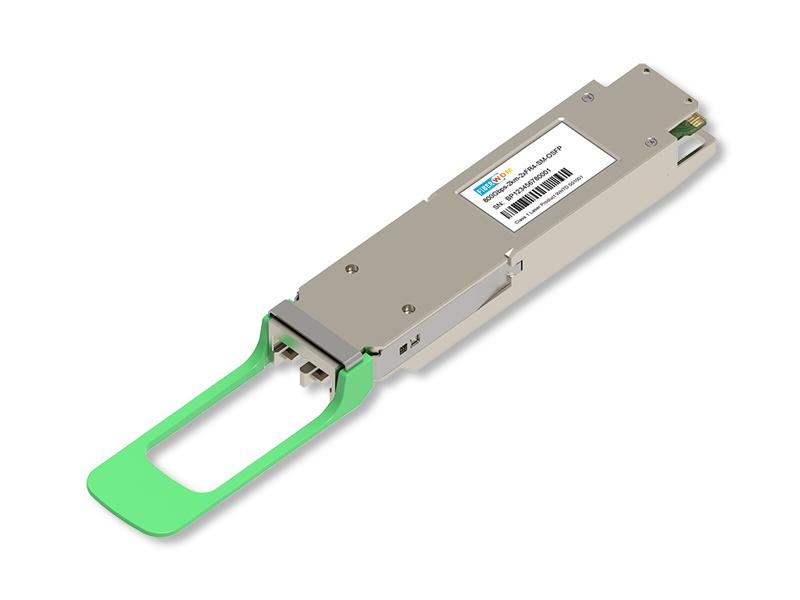

OSFP-800G-2FR4 PAM4 CWDM4 2km DOM Dual CS SMF Optical Transceiver Module

  Features QSFP-DD Serial Optical Interface               8x100G PAM4 retimed 800GAUI-8 electrical interface               MPO-16 APC connector               8 channel VCSEL arrays and 8 channels PIN photo detector arrays               Maximum link length of 60m on OM3 or 100m on OM4 QSFP-DD MSA Compliant               Hot Pluggable QSFP-DD form factor               Compliant to QSFP-DD-Hardware-Rev 6.3 MSA               Compliant to CMIS 5.2 Support Protocol               Compliant to IEEE 802.3db               Compliant to IEEE 802.3ck Low Power Consumption               Less than 14W in temperature range of 0 to 70℃

Features OSFP Serial Optical Interface 8x100G PAM4 retimed 800GAUI-8 electrical interface Dual MPO-12 APC connector and MPO16 APC connector are provided 8 channel VCSEL arrays and 8 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 OSFP MSA Compliant Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Support Protocol Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 14W in temperature range of 0 to 70℃ Applications 800GBASE-SR8 800G Ethernet Data center

Features Form Factor: Hot-pluggable OSFP800 form factor Data Rate: Aggregate data rate of 850 Gb/s and Breakout data rate of 106.25 Gb/s Optical Interface: Compliant to 2×400GBASE-DR4 and 8x100GBASE-DR Electrical Interface: Compliant to 2×400GAUI-4 and 8x100GAUI-1 Management Interface: I2C management interface Reach: Up to 500m over MPO/APC single mode fiber Power consumption: 16 W max Operating case temperature: 0 ~ 70 ℃ Power Supply: Single 3.3V power supply Compliance Form Factor: OSFP MSA Rev 5.0  Optical: IEEE802.3cd /IEEE802.3bs  Electrical: IEEE802.3ck  Firmware: CMIS 5.2  Environment: RoHS  Stability: GR-468-CORE Applications 800Gb/s Ethernet  Data Center

This product is a 800Gb/s OSFP 2xSR4 optical module designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.   On the receiver side, the module converts 8 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4) electrical output data.   An optical fiber cable with dual MPO-12 connector can be plugged into the OSFP 800G SR8 module receptacle.  Host FEC is required to support up to 100m fiber transmission.

800G QSFP-DD800 2xFR4 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP-DD MSA,IEEE 802.3cu and 100G Lambda MSA.The optical transceiver is RoHS compliant.

800G QSFP-DD800 2xLR4 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP-DD MSA and 100G Lambda MSA.The optical transceiver is RoHS compliant.

800G QSFP-DD DR8 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFP-DD MSA and IEEE 802.3bs.The optical transceiver is RoHS compliant.

800G QSFP-DD DR8+ transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP-DD MSA and IEEE 802.3cu.The optical transceiver is RoHS compliant.
