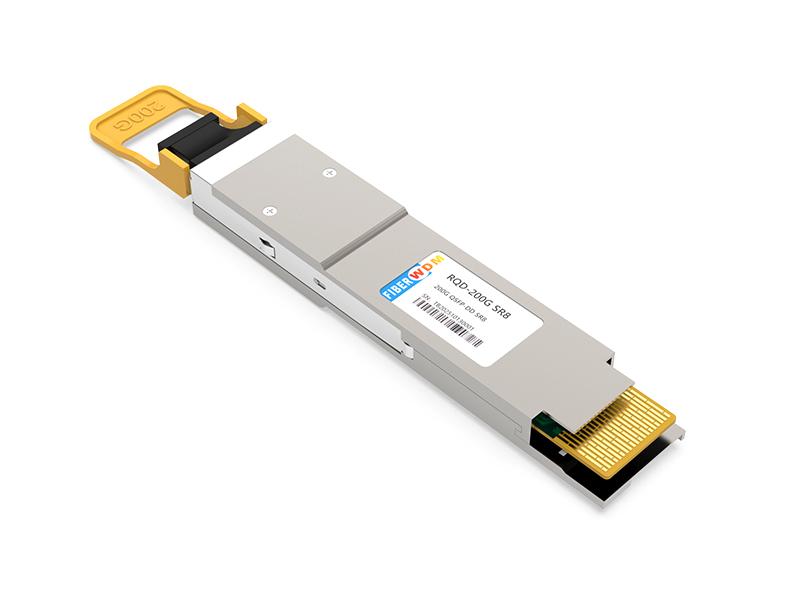

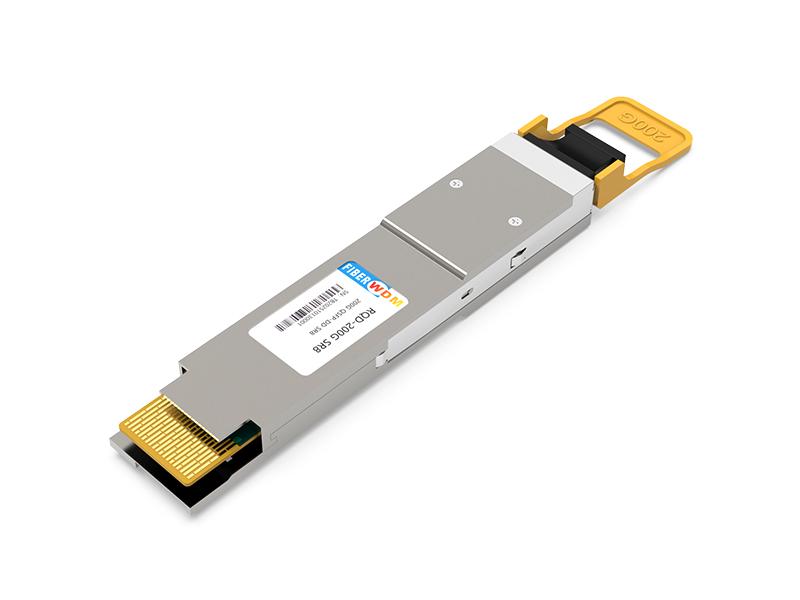

200G QSFP-DD SR8

200G QSFP-DD SR8

Features:



  • Up to 28.05 Gbps data rate per channel by NRZ modulation
  • Support 200GAUI-8 electrical interface
  • Integrated 850nm VCSEL array and PD array
  • Hot-pluggable QSFP-DD form factor
  • Supported MPO-16 APC or 2*MPO-12 UPC
  • Compliant to QSFP-DD HW
  • Compliant with CMIS 4.0
  • Maximum power consumption 3.5W
  • Single 3.3V power supply
  • Case operating temperature 0°C to 70°C
  • Class 1 laser
  • RoHS compliant
  • Product Detail

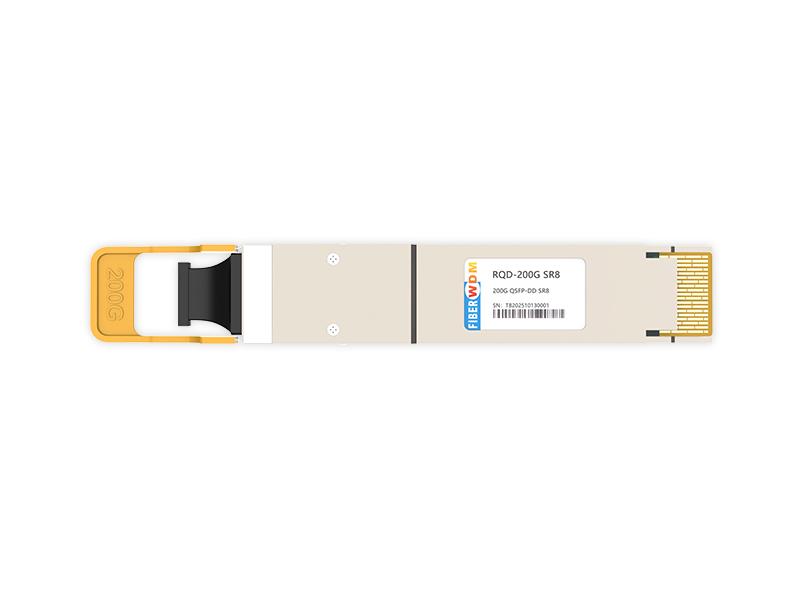

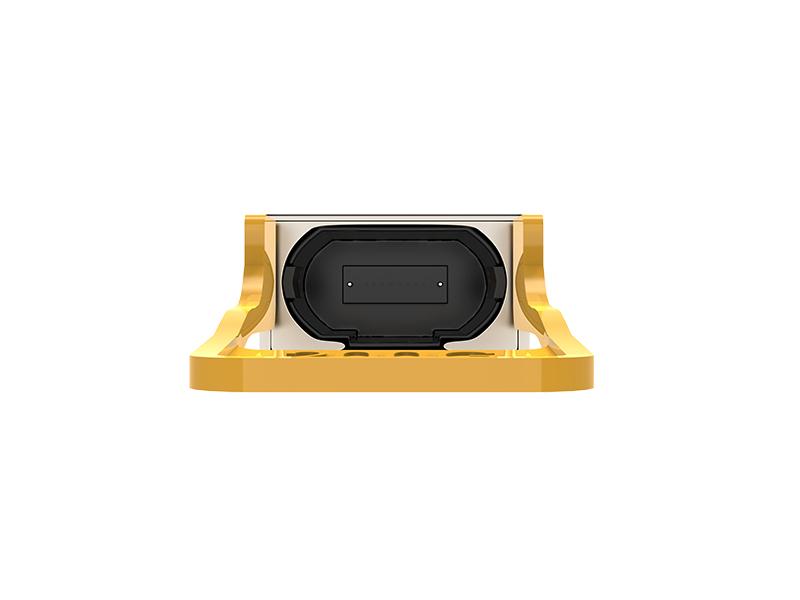

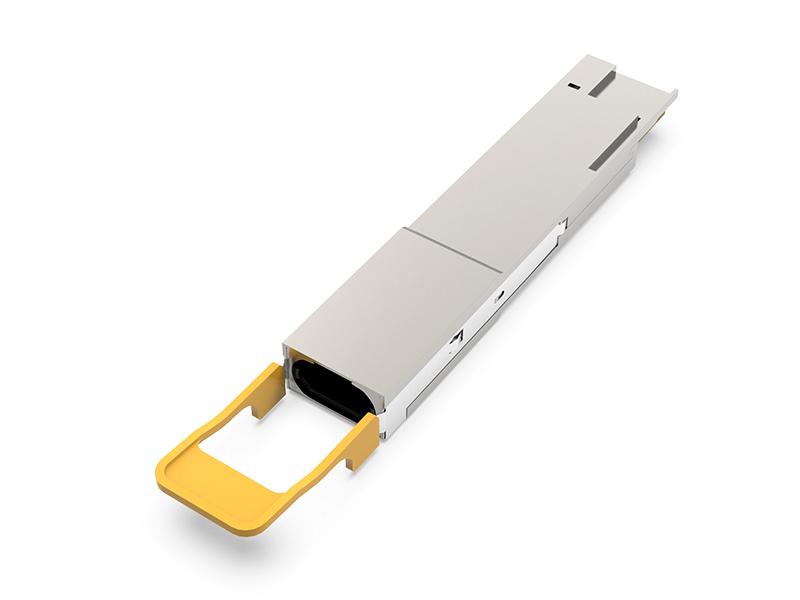

200G QSFP-DD SR8  RQD-200GSR8



Absolute Maximum Ratings



Parameter

Symbol

Min

Max

Unit

Storage Temperature

TS

-40

85

ºC

Power Supply Voltage

VCC

-0.3

3.6 V

Control Input Voltage

VI

-0.3

3.465

V

Relative Humidity (non-condensing)

RH

15 85 %



Recommended Operating Conditions



Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Operating Case Temperature

TOPR

    70

Power Supply Voltage

VCC

3.135

3.3

3.465

V



Maximum Power Consumption

Pmax

    3.5 W

Signaling Rate per Lane

SRL

1.25-

  28.05

Gbps

1

Rx Differential Data Output Load

    100

Ohm



Operating Distance (OM3)

      70 m

Operating Distance (OM4)

      100 m

Notes:

1. For Rate <25.78 Gb/s, CDR must be in Bypass mode



Transmitter Optical Specifications



Parameter

Symbol

Min.

Typical

Max.

Unit

Center Wavelength

λC

840

850 860 nm

RMS spectral width

∆λrms



  0.6 nm

Average launch power, each lane

AOPL

-6.4

  3

dBm

Optical Modulation Amplitude (OMAouter), each lane

TOMA

-6.4

  3.5

dBm

Average Launch Power of OFF Transmitter, each lane

ToFF

    -30

dBm

Extinction ratio, each lane

ER

2

dB

Optical return loss tolerance

      -12

dB

Transmitter Eye mask definition Eye mask definition {X1, X2, X2, Y1, Y2, Y3}



{0.3,0.38,0.45,0.35,0.41,0.5}





Receiver Optical Specifications



Parameter

Symbol

Min.

Typical

Max

Unit

Center Wavelength

λC

840   860 nm

Damage threshold

  3.4

dBm

Average Receive Power, each lane

  -10.3   2.4

dBm

Stressed Receiver sensitivity (OMA)

SOMA

    -5.2

dBm

Receiver reflectance



    -12

dB

LOS Assert

LOSA

-30

dBm

LOS De-Assert

LOSD

    -10.5

dBm

LOS Hysteresis

LOSH

0.5

dB



Pin Definitions



200G QSFP-DD SR8 Transceiver

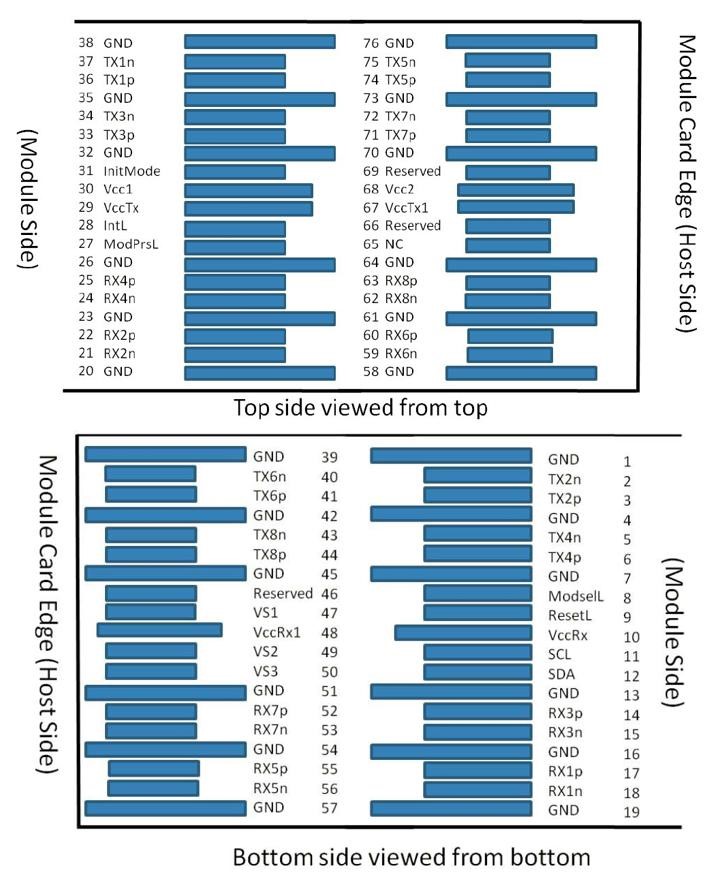

Figure 1 –Module Pad Layout



Pin

Logic

Symbol

Description

Pin Logic Symbol

Description

1

GND

Ground

39   GND

Ground

2

CML-I

Tx2n

Transmitter Inverted Data Input

40

CML-I

Tx6n

Transmitter Inverted Data Input

3

CML-I

Tx2p

Transmitter Non-inverted Data Input

41

CML-I

Tx6p

Transmitter Non-inverted Data Input

4

GND

Ground

42

GND

Ground

5

CML-I

Tx4n

Transmitter Inverted Data Input

43

CML-I

Tx8n

Transmitter Inverted Data Input

6

CML-I

Tx4p

Transmitter Non-inverted Data Input

44

CML-I

Tx8p

Transmitter Non-inverted Data Input

7

GND

Ground

45

GND

Ground

8

LVTTL-I

ModSelL

Module Select

46

Reserved


9

LVTTL-I

ResetL

Module Reset

47



VS1

Module Vendor Specific 1

10

VccRx

+3.3V Power Supply Receiver

48

VccRx1

3.3V Power Supply

11

LVCMOS-I/O

SCL

2-wire serial interface clock

49

VS2

Module Vendor Specific 2

12

LVCMOS-I/O

SDA

2-wire serial interface data

50

VS3

Module Vendor Specific 3

13

GND

Ground

51

GND

Ground

14

CML-O

Rx3p

Receiver Non-inverted Data Output

52

CML-O

Rx7p

Receiver Non-inverted Data Output

15

CML-O

Rx3n

Receiver Inverted Data Output

53

CML-O

Rx7n

Receiver Inverted Data Output

16

GND

Ground

54

GND

Ground

17

CML-O

Rx1p

Receiver Non-inverted Data Output

55

CML-O

Rx5p

Receiver Non-inverted Data Output

18

CML-O

Rx1n

Receiver Inverted Data Output

56

CML-O

Rx5n

Receiver Inverted Data Output

19

GND

Ground

57

GND

Ground

20

GND

Ground

58

GND

Ground

21

CML-O

Rx2n

Receiver Inverted Data Output

59

CML-O

Rx6n

Receiver Inverted Data Output

22

CML-O

Rx2p

Receiver Non-inverted Data Output

60

CML-O

Rx6p

Receiver Non-inverted Data Output

23

GND

Ground

61

GND

Ground

24

CML-O

Rx4n

Receiver Inverted Data Output

62

CML-O

Rx8n

Receiver Inverted Data Output

25

CML-O

Rx4p

Receiver Non-inverted Data Output

63

CML-O

Rx8p

Receiver Non-inverted Data Output

26

GND

Ground

64

GND

Ground

27

LVTTL-O

ModPrsL

Module Present

65

NC

Not connected

28

LVTTL-O

IntL

Interrupt

66

Reserved





Mechanical Dimensions



200G QSFP-DD SR8

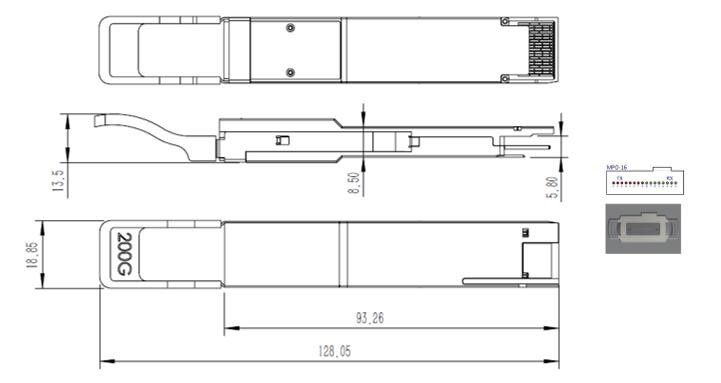

Figure 2 – Mechanical Dimensions for MPO16



200G QSFP-DD SR8

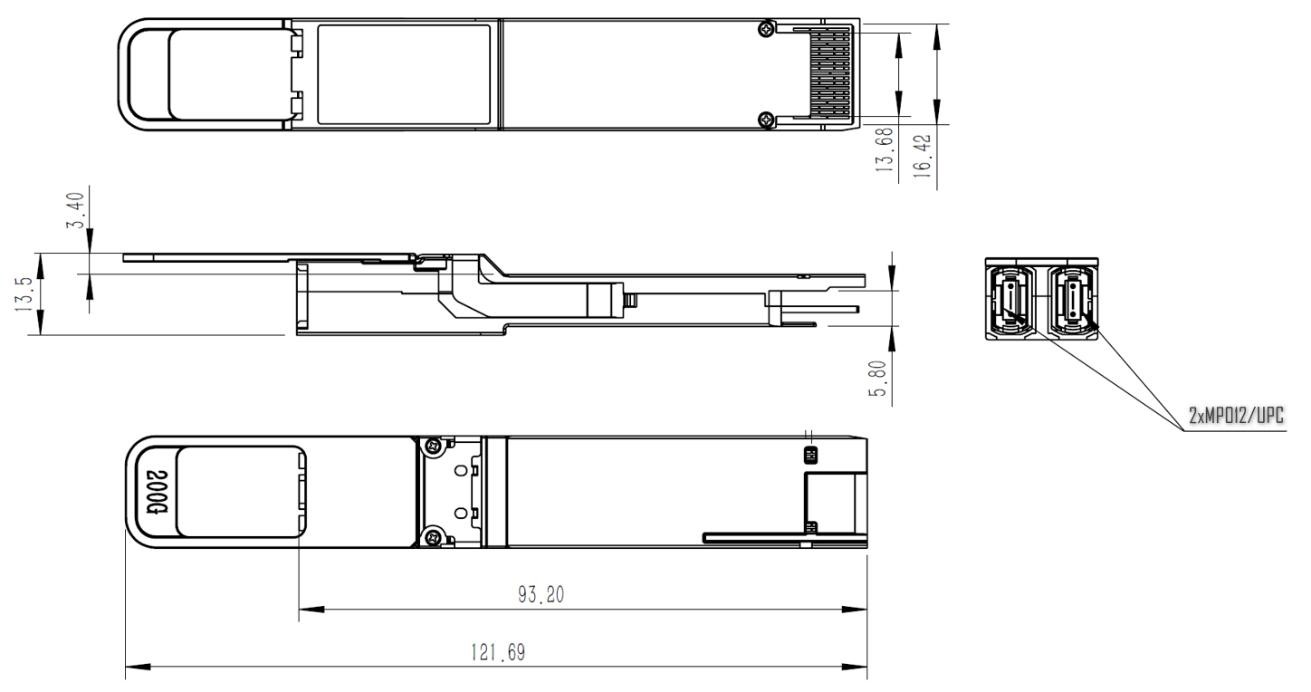

Figure 3 – Mechanical Dimensions for 2*MPO12



Ordering Information



Part Number

Description

RQD-200GSR8

200Gb/s, QSFP-DD, 2*MPO12, UPC, MMF, 850nm, SR8, up to 100m

200Gb/s, QSFP-DD, MPO16, APC, MMF, 850nm, SR8, up to 100m
