400G Breakout Applications

(Fiberwdm All rights Reserved)

Key words: 400G QSFP-DD, 400G Breakout, 400G TO 4X100G

400G QSFP-DD  TO  4X100G QSFP28

How to breakout 400G QSFP-DD  to 4x 100G ?

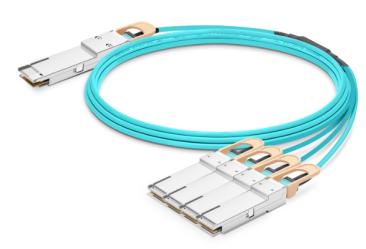

Solution 1:  AOC Cable 400G QSFP-DD TO 4X100G QSFP56 AOC Breakout Cable

Solution 2:  DAC Cable  400G QSFP-DD to 4x100G QSFP56 DAC Breakout Cable

Solution 3:

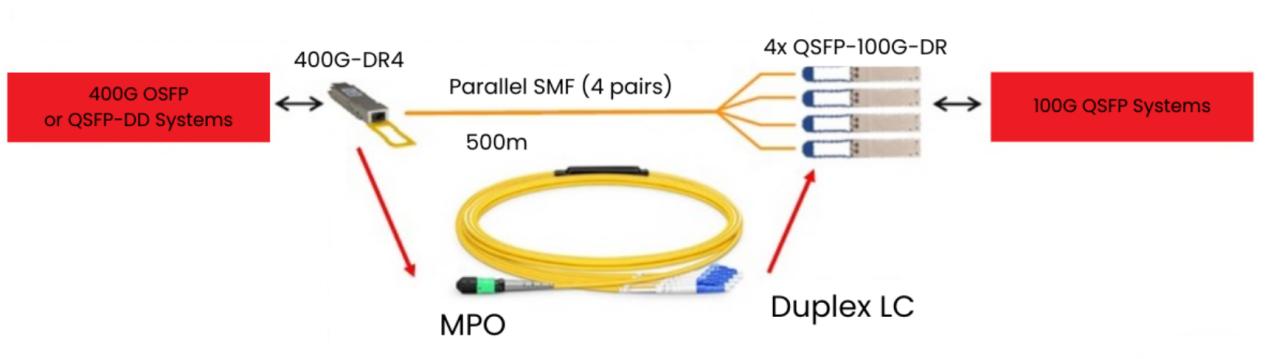

400G QSFP-DD DR4 TO 4X100G DR1 With Breakout cable MPO TO 4*DLC SM

400G QSFP-DD DR4 SM 1310nm MPO-12
100G QSFP28 DR1 SM 1310nm Single lambda 2*LC
Breakput patch cord MPO-12 TO 4*DLC SM

Solution 4:

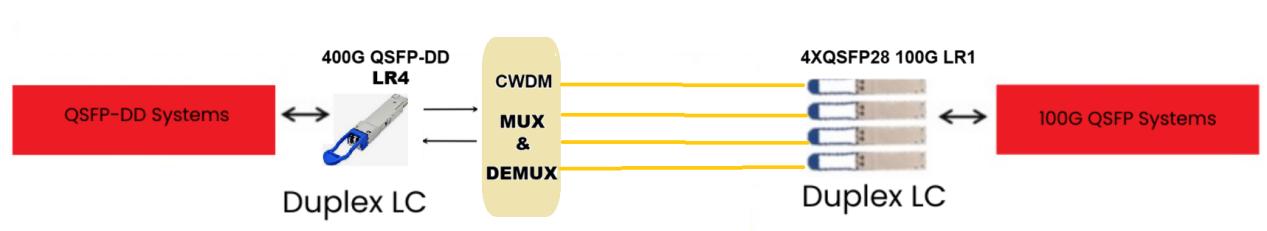

400G QSFP-DD LR4 TO 4X100G LR1 with CWDM MUX/DEMUX

400G QSFP-DD LR4 CWDM4(1271/1291/1311/1331)  2*LC
100G QSFP28 LR1 CWDM single lambada 2*LC (1271/1291/1311/1331)
CWDM MUX/DEMUX Dual Fiber 4ch(1271/1291/1311/1331)
