Optical Transmission Network System OTN1000
With the rapid development of the Internet, the bandwidth pressure caused by the spurt growth of data traffic makes it imperative to introduce a 100G system into the transmission network. Therefore, Fiberwdm has introduced a new generation of high-capacity, long-distance 100G wavelength division transmission Equipment OTN1000 series products. The product uses advanced transmission technology and high integration technology to support single-channel transmission rate from 100Mbps to 100Gbps, and provides wide bandwidth, large capacity and fully transparent transmission for 200Gbps and 400Gbps expansion, enabling smooth upgrade of capacity. It provides a stable platform for multi-service operation and future network upgrade and expansion. It is widely used in operators, broadcasting, IDC, finance, government, cloud network, big data and other industries.
OTN1000A 1U RACK |
OTN1000B 2U RACK |

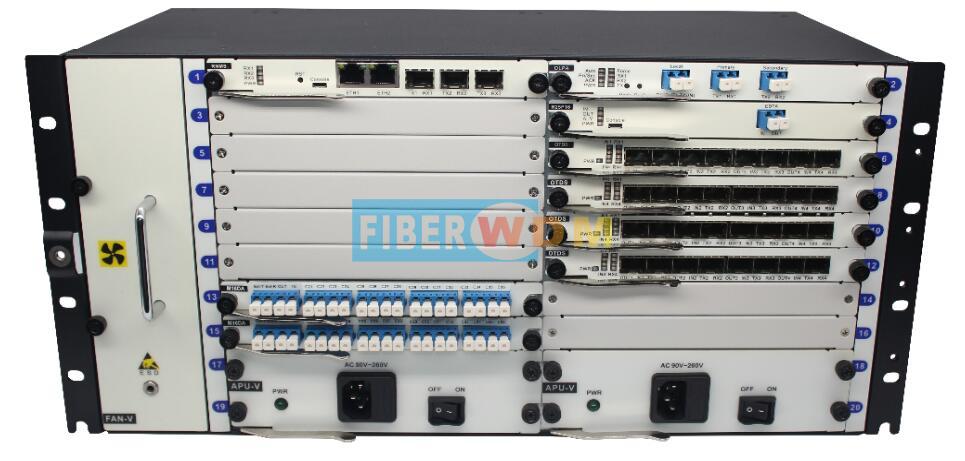

OTN1000C 5U RACK
|
Features
Supports 96×100G ultra-large capacity transmissions, that is, single fiber transmission capacity up to 9.6Tb/s, and support 80/96×10G/100G hybrid transmission, supporting smooth upgrade from 40 waves to 80 waves, 48 waves to 96 waves. It ensures low investment and smooth expansion in the early stage of network construction to meet the growing bandwidth demand in the future.
100G system adopts PDM-QPSK coding technology for coherent detection, supports SD-FEC, B2B OSNR tolerance index is excellent, adopts industry advanced DSP processing technology, dispersion tolerance is 22000 ps/nm, and supports 1200 km or more of non-electric relay transmission. Save investment and greatly facilitate operation and maintenance.
Supports 100M-100G any service access: CPRI1~10, eCPRI, FE/GE/10GE/25GE/40GE/100GE, FC 1G~32G, STM-N, OTU1/2/3/4, etc. Transparent transmission reduces the cross-transmission delay of the circuit.
Supports multiple network protection schemes such as optical layer 1+1 channel protection and optical line side 1+1 protection, providing multiple protection for important equipment units and optical fiber lines.
Support AC 220V, DC -48V power supply, 1+1 power protection.
It adopts 1U, 2U, 5U standard 19-inch rack design, completely configuration-free installation, device plug-and-play, and unified network management platform, providing complete network and equipment performance monitoring capabilities.
Product specification
Function |
Note |
||
Product model |
OTN1000A |
OTN1000B |
OTN1000C |
Equipment Size (H x W x D, mm) |
1U: (back-power supply) 44×442×280 |
2U: (front -power supply) 88×442×220 |
5U: (front -power supply) 220×442×220 |
Service slot |
4 slots |
8 slots |
16 slots |
Power consumption |
120W (Max) |
180W (Max) |
450W (Max) |
Max channel number |
CWDM: 18 wavelength, DWDM: 96 wavelength(50GHz) |
||
Single channel max rate |
100Gbit/s |
||
Line side rate |
1.25Gbit/s, 2.5Gbit/s, 8Gbit/s, 10Gbit/s, 16Gbit/s, 25Gbit/s, 40Gbit/s, 100Gbit/s |
||
Support service |
STM-1/4/16/64/256、OC-3/12/48/192/768 OTU-1/2/3/4 FE/GE/10GE/25GE/40GE/100GE FC 1G/2G/4G/8G/16G/32G EPON, GPON, CPRI 1/2/3/6/7/10, eCPRI |
||
Clock features |
Support IEEE 1588V2 |
||
Network topology |
Point to point, chain type, star type, ring type |
||
Network level protection |
Optical channel 1+1 protection, optical multiplex 1+1 protection, optical line 1+1 protection |
||
Equipment level protection |
Power supply backup |
||
Network management |
SNMP, Web, CLI, Telnet |
||
Installation |
"19"and 23" cabinets, ETSI 300mm/600mm cabinets Wireless outdoor base station cabinet, FTTX outdoor cabinet, hanging wall |
||
Working temperature range |
-10℃~60℃ |
||
Working humidity range |
5~95% no condensation |
||
Storage temperature range |
-40℃~85℃ |
||
Heat dissipation |
Fan cooling |
||
Power supply mode |
AC: 90 ~ 260V or DC: -36 ~ -72 V |
Product List
Picture |
Name |
Product Description |
1U Rack,4-Slot,With Network Management Card,and Fans Unit, Daul power(AV90~ 264V or DC -48~ -60 V) |
||
2U Rack,8-Slot,With Network Management Card,and Fans Unit, Daul power(AV90~ 264V or DC -48~ -60 V) |
||
5U Rack,16-Slot, With Network Management Card,and Fans Unit, Daul power(AV90~ 264V or DC -48~ -60 V) |
||
4*10Gbit/s Transponder(OEO) Card,Support 2.5~10G, 3R,8*SFP+, used in ONT1000 series take one slot |
||
4*25Gbit/s Transponder(OEO) Card,Support 10G~25G,8*SFP28, used in ONT1000 series take one slot |
||
|
4*100Gbit/s Transponder(OEO) Card,Support 100G,4*QSFP28, used in ONT1000 series, take one slot |
|
4*25/10Gbit/s TO 1*100/40Gbit/s Transponder(OEO) Card,Support 100G,4*SFP28 TO 1*QSFP28, used in ONT1000 series, take one slot |
||
|
2*100Gbit/s to 1x200Gbit/s Transponder Card,Support 2*QSFP28 to 1X CFP2, used in ONT1000 series,take two slot |
|
OLP Card,Optical line 1+1 protection LC/UPC used in ONT1000 series, take one slot |
||
DWDM EDFA Card, BA G15/20dB, Gain 20dB, Max Output 20dB, LC/UPC, used in OTN1000 series, take one slot |
||
DWDM EDFA Card, LA G25/20dB,Gain 20dB, Max Output 20dB, LC/UPC, used in OTN1000 series, take one slot |
||
DWDM EDFA Card, PA G20/20dB,Gain 20dB, Max Output 16dB, LC/UPC, used in OTN1000 series, take one slot |
||
DWDM EDFA Card, PA G25/20dB,Gain 25dB, Max Output 20dB, LC/UPC, used in OTN1000 series, take one slot |
||
40G 100G SOA amplifier 1260-1340m Gain 14dB, Max Output 10dB, LC/UPC, used in OTN1000 Series, take one slot |
||
DCM,20KM DCF-based Passive Dispersion Compensation Module, LC/UPC, used in OTN1000 series, take 2-slots |
||
DCM,40KM DCF-based Passive Dispersion Compensation Module, LC/UPC, used in OTN1000 series, take 2-slots |
||
DCM,80KM DCF-based Passive Dispersion Compensation Module, LC/UPC, used in OTN1000 series, take 2-slots |
||
1x2 Single Fiber DWDM Splitter Red/Blue C Band Filter, used in OTN1000 series, take one slot |
||
CWDM MUX DEMUX Card, 4~18ch 1270-1610nm, LC/UPC, used in OTN1000 series |
||
DWDM MUX DEMUX Card,8~40CH C21-C60, LC/UPC, used in OTN1000 series |
Applications of OTN transmission bandwidth cloud
Description:
With deepening of informatization in the industry, larger-particle Ethernet services have been gradually rising, which leads to the fast growth of the traffic in the access layer, metro area layer and backbone network. Therefore, the construction of the multiple service transmission platform and the provision of high capacity channel has become a new development direction for the transmission network technology. The solution of "OTN transmission broadband cloud" is just born for this. The "OTN transmission broadband Cloud" is a blend of advanced technology of 10G~100G and large capacity OTN photoelectric cross. Just like the "cloud computing", it has formed a large-capacity, dynamic shared, quickly accessible, intelligent and reliable network.
Highlights in the Solution
1.Construct the large volume pipe with the 100G technology, and allow the entire network to share 100G broadband channel via OTN technology at the same time;
2.Meet the scheduling demand for large capacity and flexible network, support 40->80 wave or 10G->100G modular expansion, ensure the network to smoothly upgrade to 8T massive transfer, which not only saves the initial investment but also satisfies the future network development for many years;
3.OTN transmission broadband cloud solves the industry various clients’ challenges in the industry planning, construction, maintenance and other aspects and brings the client a experience of "zero waste large broadband, rapid release and zero waiting, and zero service interruption"
4.Unified management, intelligent network management, real-time monitoring of network running status all guarantee the stability of the network.
