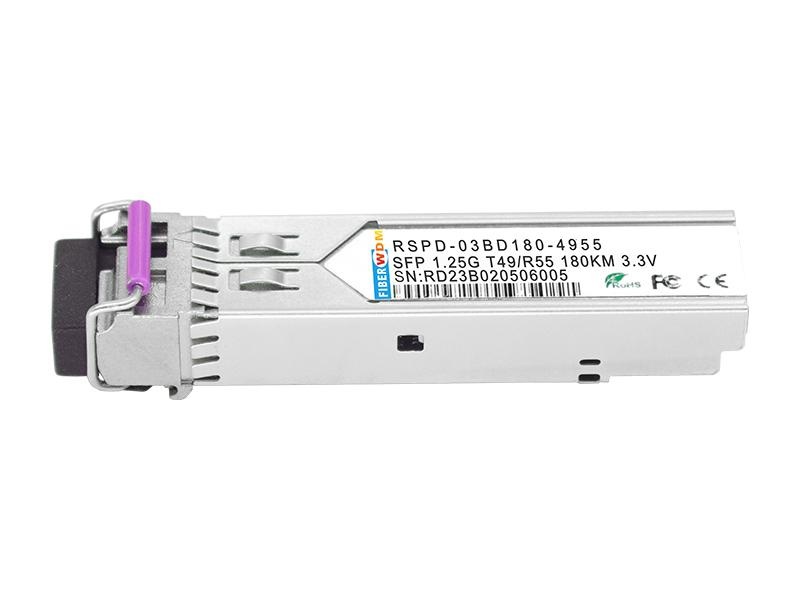

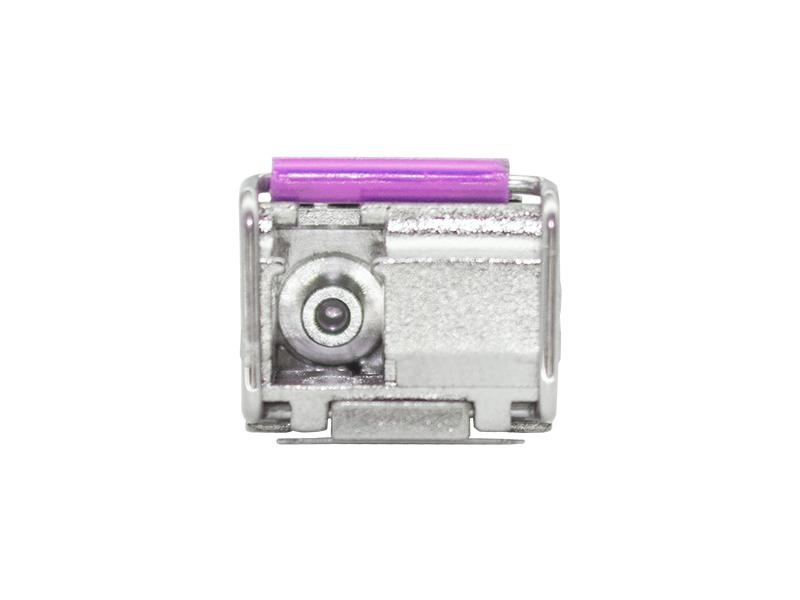

SFP 1.25G TX 1490 RX 1550 CWDM 180KM DDM Optical Transceiver

Features:

  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Single LC connector
  • Up to 180km on 9/125μm SMF
  • 1490nm DFB laser transmitter
  • APD Receiver
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Power dissipation<1.5W
  • operating temperature range: 0°C to 70°C
  • RoHS compliant and Lead Free


Applications:

  • 1000Base-ZX Ethernet
  • Metro/Access Networks
  • 1×Fibre Channel
  • Other Optical Links


Inquire now Download
  • Product Detail

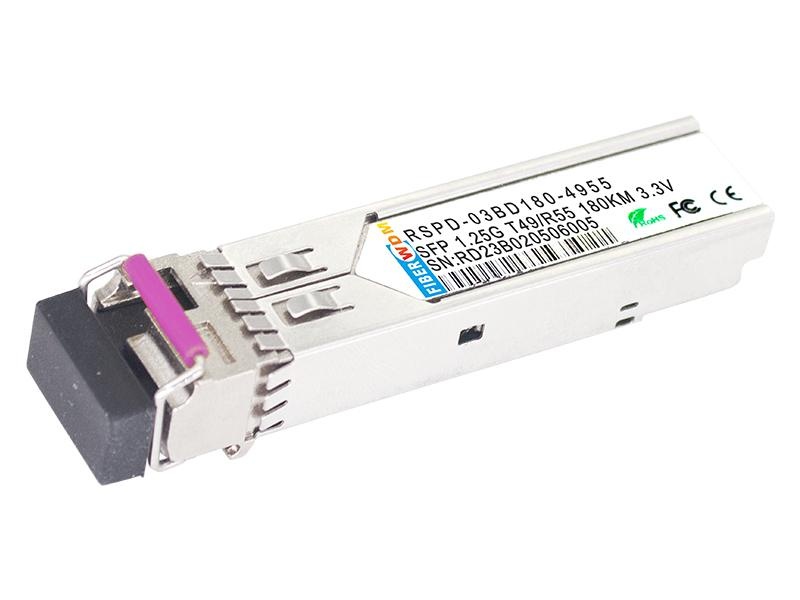

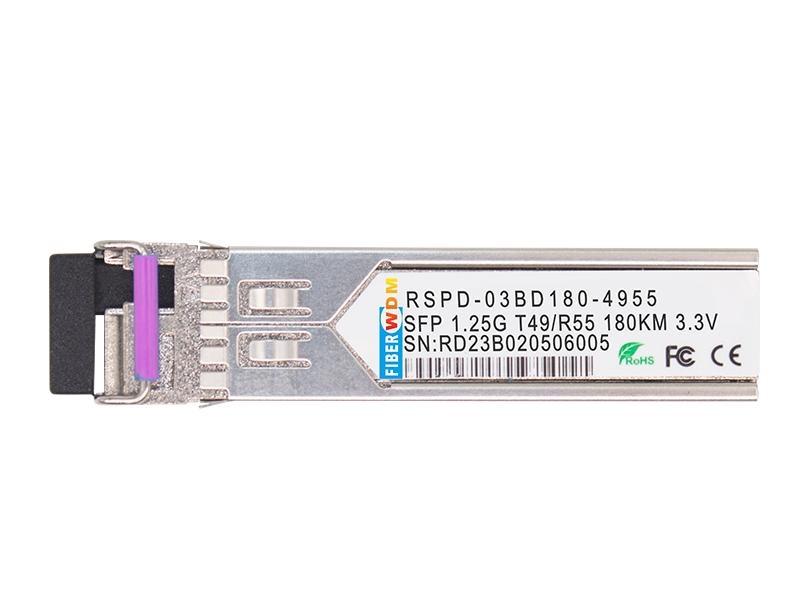

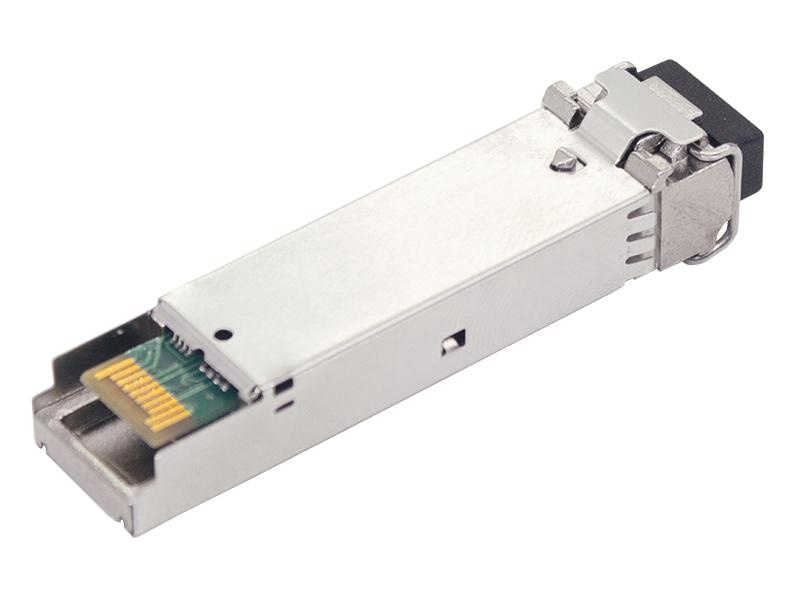

RSPD-03BD180-4955

1.25Gb/s 180km LC BiDi SFP Transceiver

Hot Pluggable, Single LC, +3.3V, 1490nm Tx/1550nm Rx, DFB-LD&APD, Single-mode, DDM



Description:

FIBERWDM RSPD-03BD180-4955 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472.The receiver section uses a PIN receiver and the transmitter uses a 1490 nm DFB laser, more than 40dB link budge ensure this module 1000Base-ZX Ethernet 180km application.


Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Storage Temperature

TS

-40


+85

°C

Supply Voltage

VCC

-0.5


4

V

Relative Humidity

RH

0


85

%


Recommended Operating Environment:

Parameter

Symbol

Min.

Typical

Max.

Unit

Case operating Temperature

TC

0


+70

°C

Supply Voltage

VCC

3.1


3.6

V

Supply Current

Icc



300

mA

Inrush Current

Isurge



Icc+30

mA

Power dissipation

Pmax



1.5

W


Electrical Characteristics TOP=(TOP=-30 to70°C, VCC = 3.1 to 3.6 Volts)

Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Transmitter Section:


Input differential impedance

Rin

90

100

110



Single ended data input swing

Vin PP

250


1200

mVp-p


Transmit Disable Voltage

VD

Vcc – 1.3


Vcc

V

2

Transmit Enable Voltage

VEN

Vee


Vee+ 0.8

V


Transmit Disable Assert Time

Tdessert



10

us


Receiver Section:


Single ended data output swing

Vout,pp

300


800

mv

3

LOS Fault

Vlos fault

Vcc – 0.5


VCC_host

V

5

LOS Normal

Vlos norm

Vee


Vee+0.5

V

5

Power Supply Rejection

PSR

100



mVpp

6

Note:

1.  AC coupled.

2. Or open circuit.

3.  Into 100 ohm differential termination.

4. 20 – 80 %

5. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

6.  All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA), September 14, 2000.

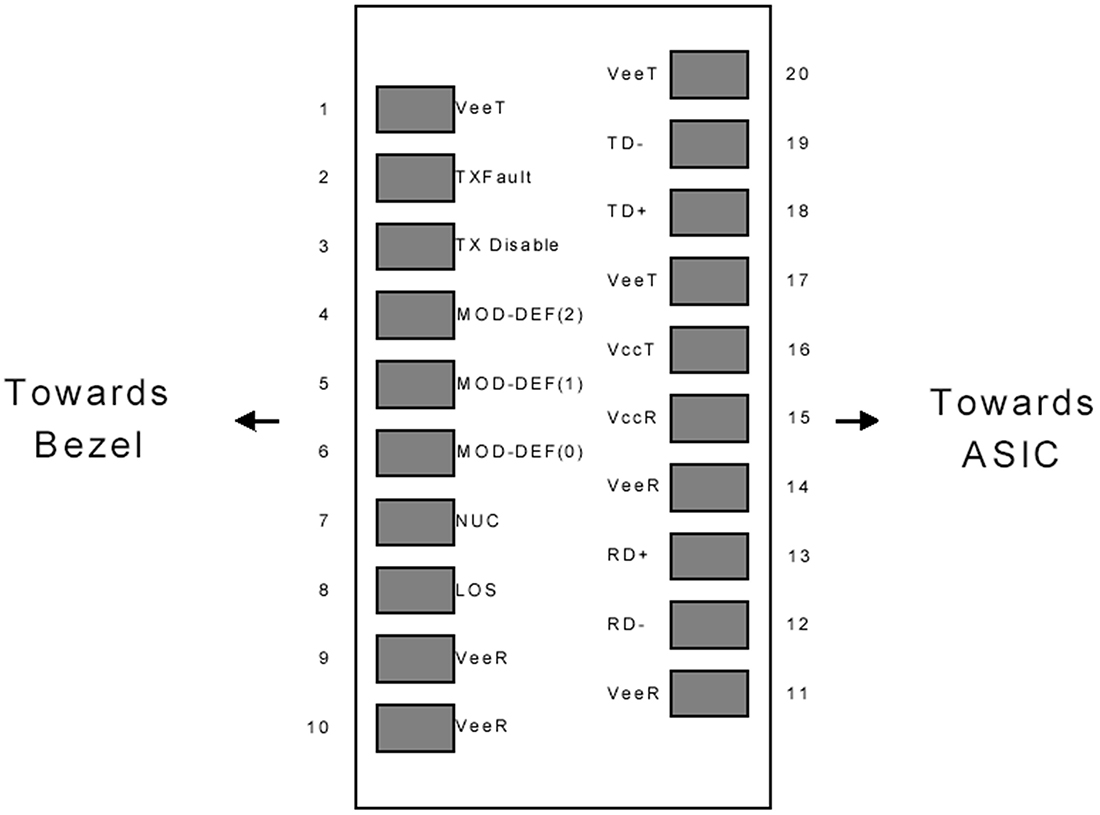

 Pin Assignment




Diagram of Host Board Connector Block Pin Numbers and Names

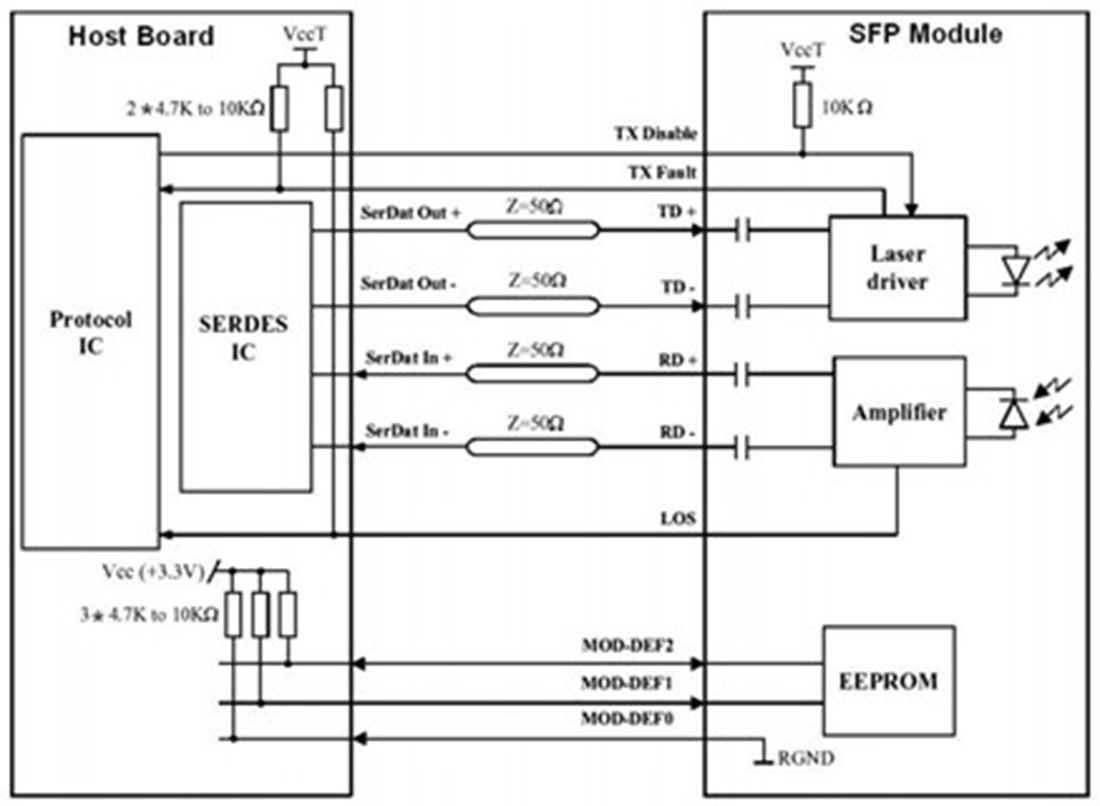

Recommended Circuit



SFP Host Recommended Circuit

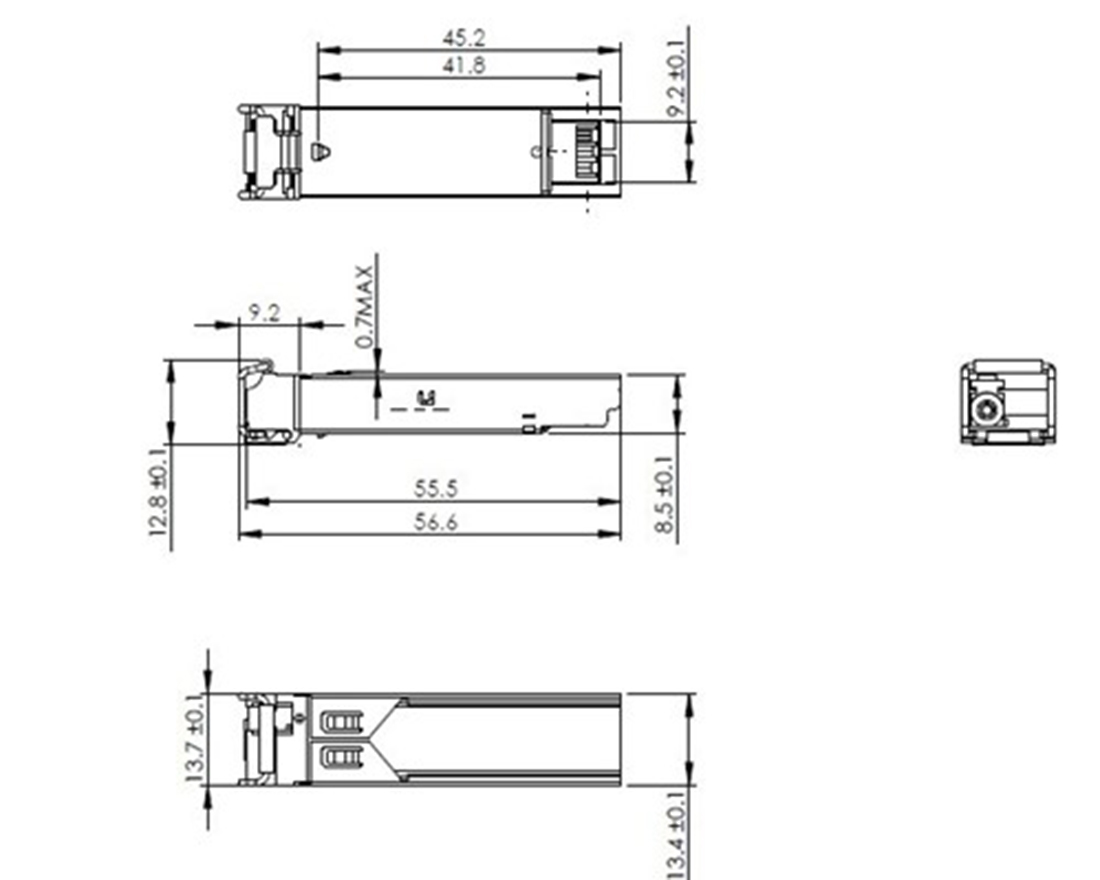

Mechanical Dimensions


Mechanical Drawing
