Bias Detector Series PD1500/PD2100

Bias Detector Series PD1500/PD2100

Usage Instructions

Appearance and Interface Description

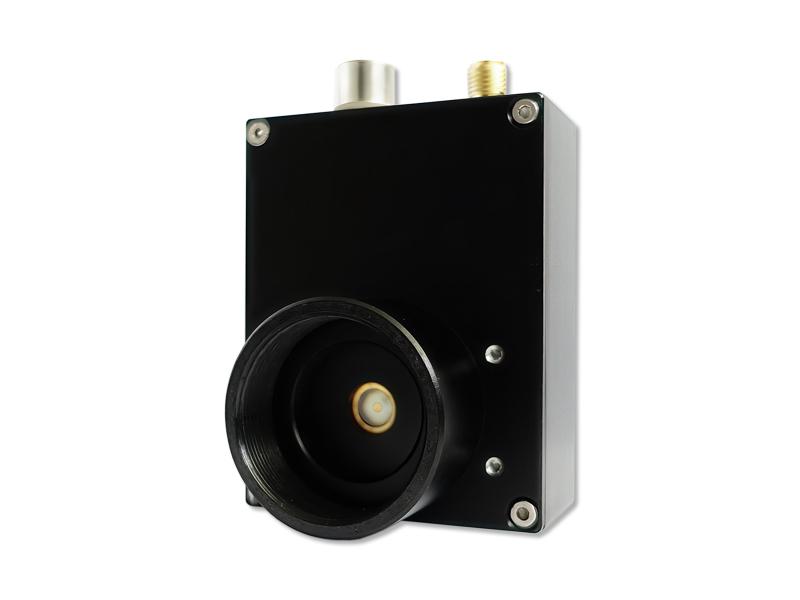

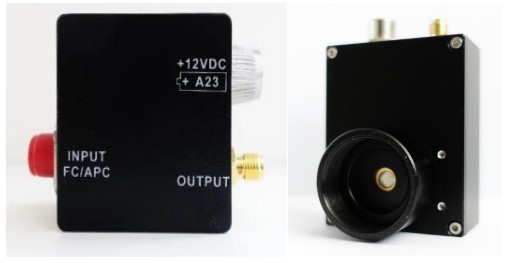

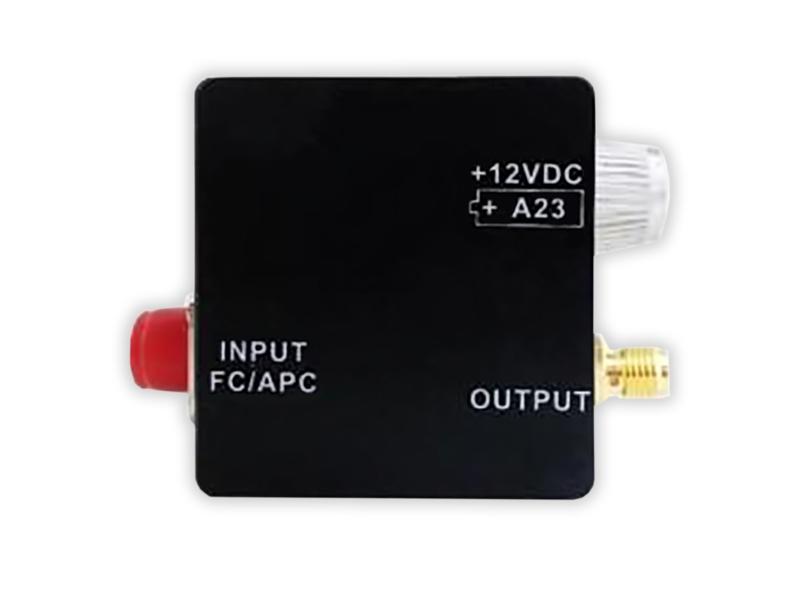

The appearance of the module is shown in the figure below:

Figure 2-1 Appearance diagram of the detector module

Electrical Description

• Output Interface: SMA (female connector)
• Output Impedance: 50 ohms
• Spectral Response Range: 800nm-1700nm; 350nm-1000nm (corresponding to PD1500 and PD2100 respectively)
• Detector Responsivity: >0.95A/W @1550nm
• Warning: Do not exceed the saturation optical power (Saturation Power) for the optical input amplitude.

Performance Parameters

Test Parameters of Bias Detectors (PD1500/2100 Series)

Figure 3-1 Summary of Electrical Performance

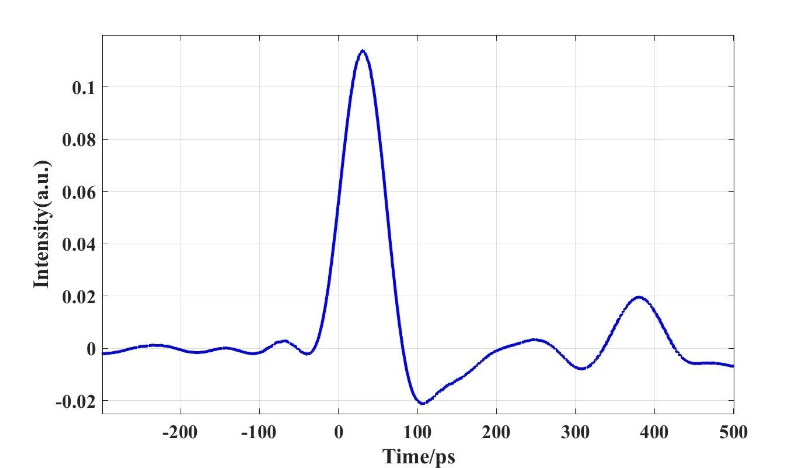

Figure 3-2 PD1500 Pulse Response Curve

Figure 3-3 PD2100 Pulse Response Curve

PD1500&PD2100 Detector mechanical drawing

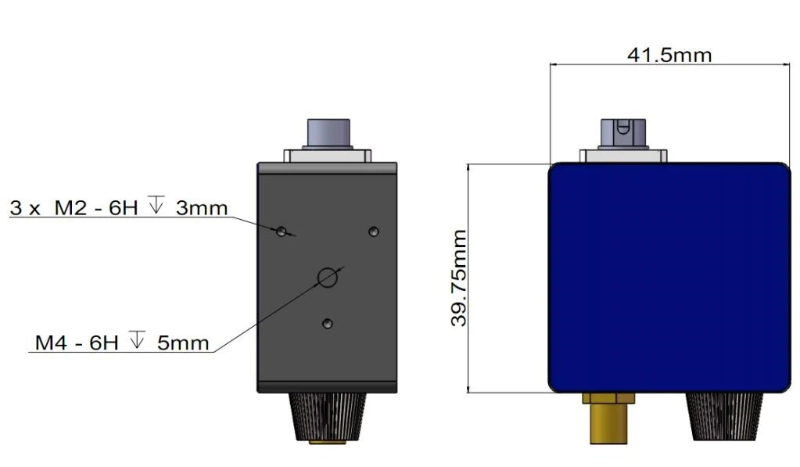

Figure 4-1 Mechanical dimension diagram of the bias detector module
