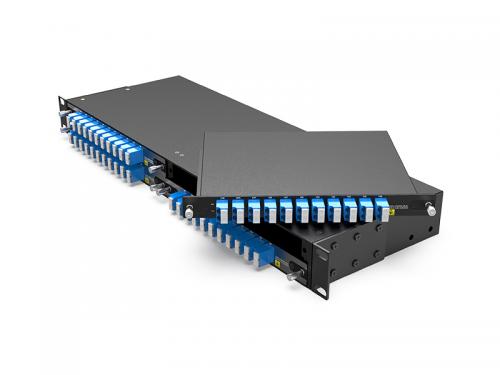

The 150GHz 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C26-H36(1556.555nm-1548.115nm), in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range. The 150GHz 8ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜2.4dB), Support 800G x 8ch business in DWDM transfer system.
The 150GHz 32ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C14-H60 (1566.31nm-1529.16nm), in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range. The 150GHz 32ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜6.0dB), Support 800G x 32ch business in DWDM transfer system.

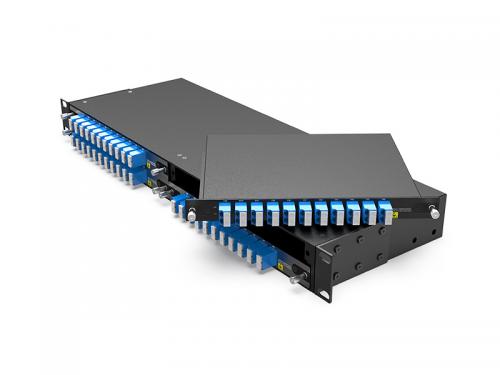

The 150GHz 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C50-H60(1537.397nm-1529.163nm), in accordance with the ITU 150GHZ grid, it maximizes the capacity of the C-band range. The 150GHz 8ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜2.4dB), Support 800G x 8ch business in DWDM transfer system.
The 16ch O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜4.8dB; ). Waves are 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45/1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm, support 16CH business on two fiber transmission, with EXP Port and 1310 Port.
The RQ-100GDO60-XXXX series single mode transceiver module is designed for multiple channel 100GbE transmissions for up to 60KM distance over standard G.652 single mode optical fiber (SMF) . The transceiver operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1295.56nm to 1312.58nm as specified by the CW-WDM MSA. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.
