400G QSFP112 DR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFP112 MSA, IEEE 802.3bs and and 100G Lambda MSA.The optical transceiver is RoHS compliant.
Product Features OSFP MSA compliant 4 CWDM lanes MUX/DEMUX design 100G Lambda MSA 400G-FR4 Specification compliant Up to 2km transmission on single mode fiber (SMF) with FEC Operating case temperature: 0 to 70oC 8x53.125Gb/s electrical interface (400GAUI-8) Data Rate 106.25Gbps (PAM4) per channel. Maximum power consumption 12W Duplex LC connector RoHS compliant
The QSFP112 400GBASE LR4 transceiver module is designed for 400G Ethernet links over 10km of single-mode fiber. The module contains 4 parallel channels at a center wavelength of CWDM, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.

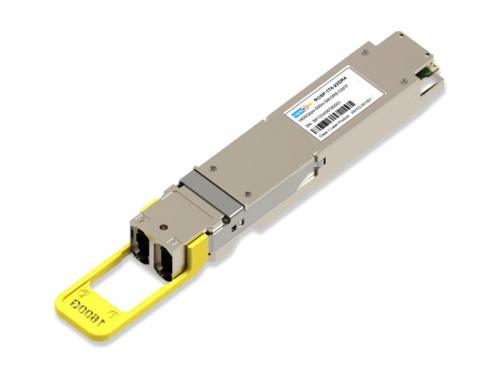

The 1600G OSFP1600 2xDR4 Transceiver is designed to transmit and receive serial optical data links up to 212.5 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.
