1.6T OSFP-XD 2*FR4
1.6T OSFP-XD 2*FR4 1.6T OSFP-XD 2*FR4

1.6T OSFP-XD 2*FR4

ROSXD-1T6-2FR4 is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.

Inquire now
  • Product Detail

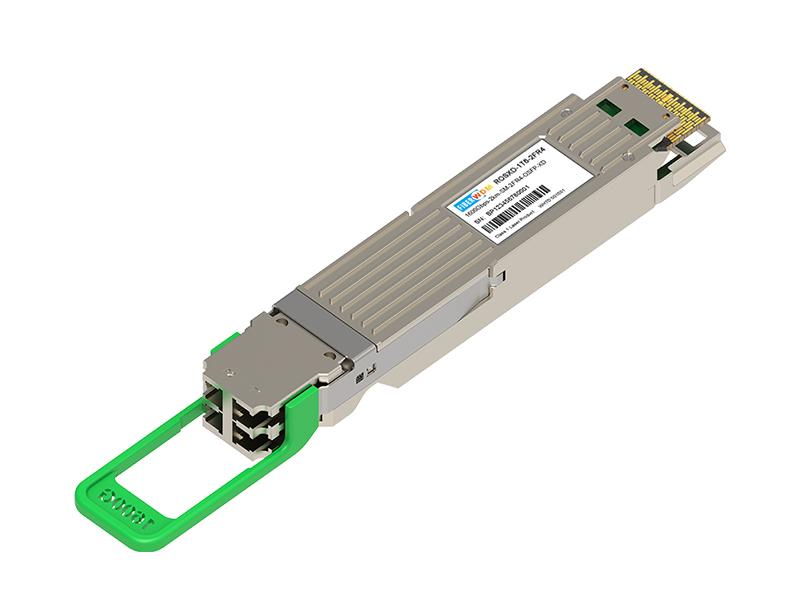

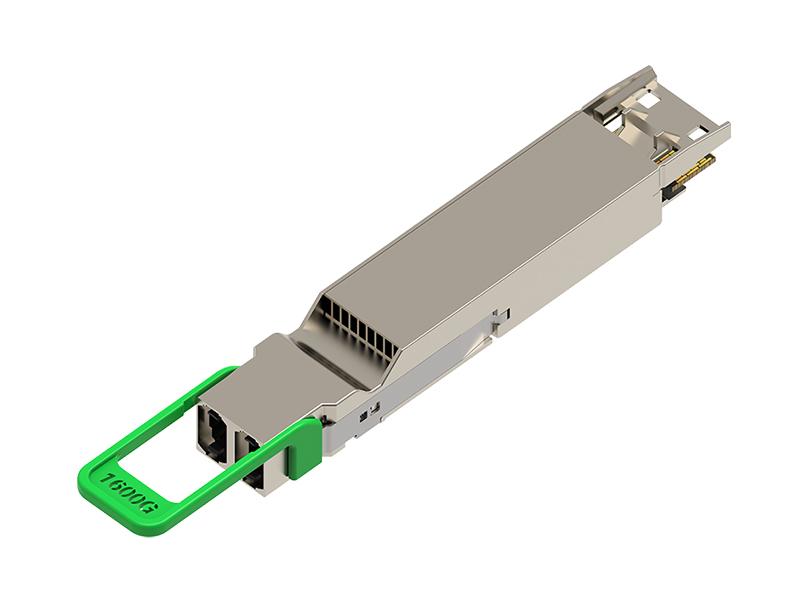

1.6T OSFP-XD 2*FR4 / ROSXD-1T6-2FR4

Key Features：

  •  Hot-pluggable OSFP-XD form factor
  •  Supports 1600Gb/s aggregate bit rate
  •  Power dissipation <25W
  •  Commercial case temperature range of 0°C to 70°C
  •  Single 3.3V power supply
  •  Maximum link length of 2km on Single Mode Fiber (SMF)
  •  Aligned with IEEE 802.3df
  •  8x200G PAM4 EML-based CWDM transmitter
  •  16x100G PAM4 retimed 400GAUI-4 electrical interface
  •  Dual Duplex LC optical interface
  •  I2C management interface
  •  RoHS compliant

Application：
  • DATACOM



Specifications：



Data Rate 1600Gb/s Distance 2km
Case Temperature 0~70℃ Voltage Supply 3.3V
Transmitter EML Receiver PD
Wavelength CWDM Connector Dual Duplex LC
Power consumption（Max） 25W



Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
1.6T OSFP224 DR8 1.6T OSFP224 DR8
ROS224-1T6-DR8 is designed to transmit and receive serial optical data links up to 212.5 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.
Read More
1.6T OSFP-XD DR8+ 1.6T OSFP-XD DR8+
ROSXD-1T6-DR8+ is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.
Read More
1.6T OSFP-XD DR8 1.6T OSFP-XD DR8
ROSXD-1T6-DR8 is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.
Read More

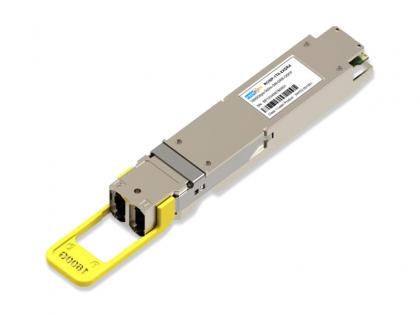

1600g osfp optical transceiver 1600G OSFP1600 2xDR4 500M 1.6T Optical Transceiver
The 1600G OSFP1600 2xDR4 Transceiver is designed to transmit and receive serial optical data links up to 212.5 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.
Read More

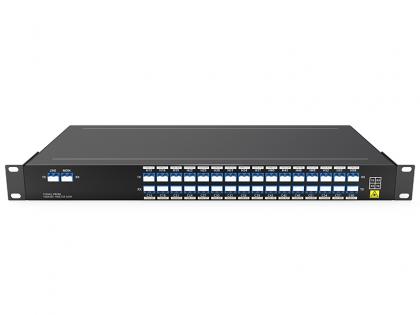

40ch 100G DWDM MUX DEMUX Dual Fiber 40CH C21-C60 DWDM MUX DEMUX, With 1310nm and Monitor Port
