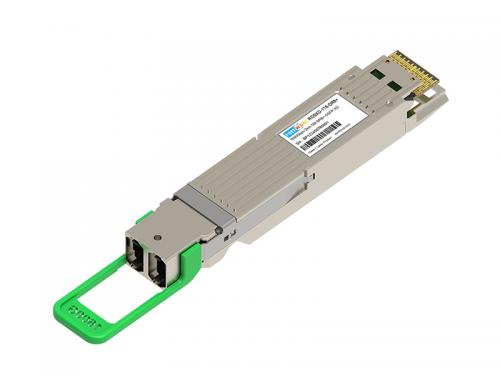

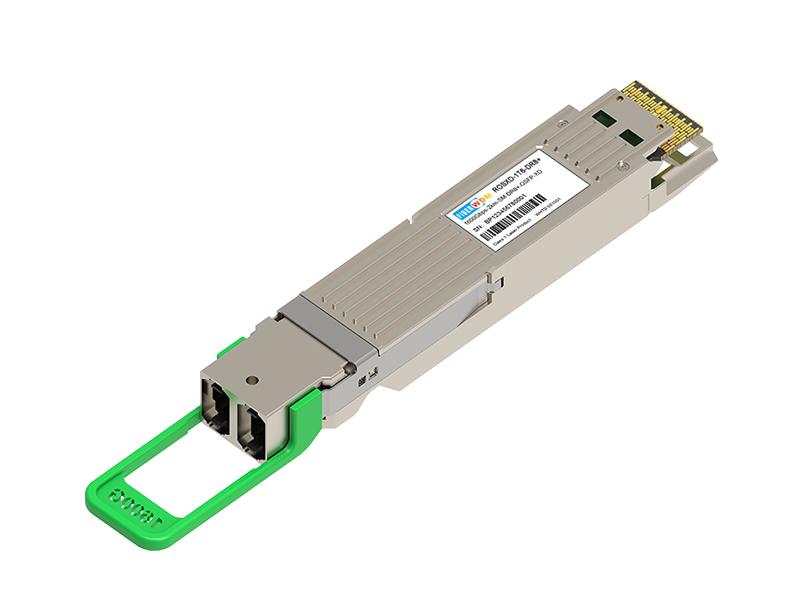

1.6T OSFP-XD DR8+

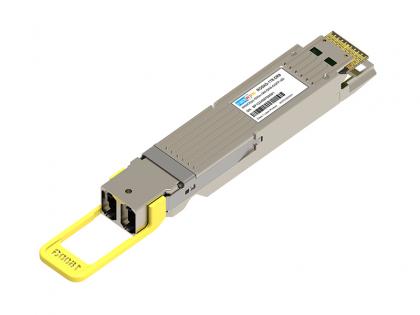

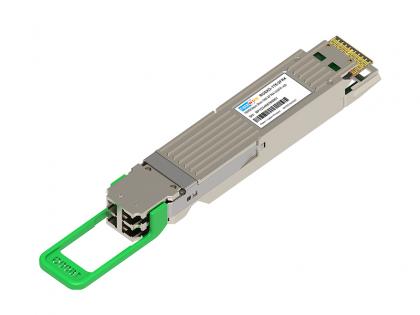

RO-1T6-2xFR4 is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.

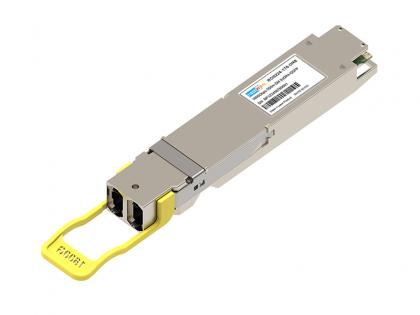

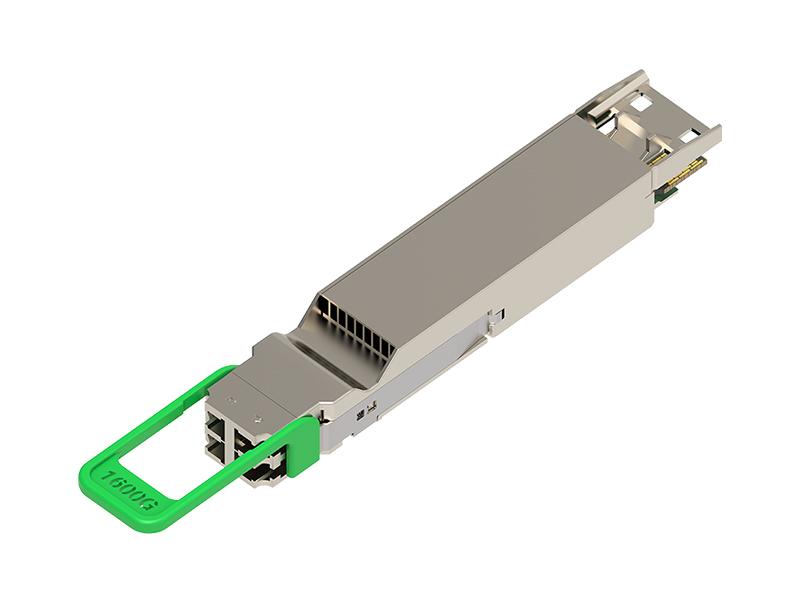

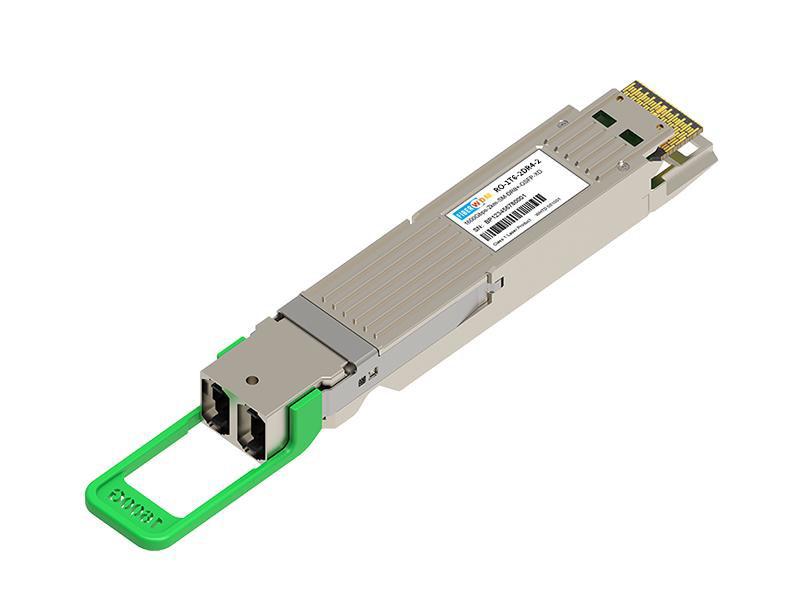

The 1600G OSFP1600 2xDR4 Transceiver is designed to transmit and receive serial optical data links up to 212.5 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.

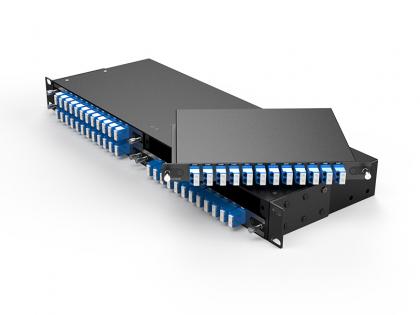

The 16ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C26(1560.61nm~1548.52nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. The 16ch DWDM is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is＜3.5dB. And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

Up to 4X10Gbps Data rate Max link up to 100M on OM3 cable, and 150m on OM4 cable. High reliability 850nm VCSEL technology Electrically hot-pluggable Low power consumption Low EMI design

Product Features Supports DWDM transmission and wavelength conversion. Single board supports 1 channel of 40Gbit/s bidirectional business access. Transparent transmission of business data. Hot-swappable support. Supports FEC functionality, optimizing output and enabling DDM signal monitoring, as well as link detection (no transmission when no receiving light). Supports SNMP-based unified network management platform with management interfaces including CLI (telnet and console), Web, and NetView (graphical interface).

80ch/ 96ch 50GHZ DWDM AAWG Module, Low Insertion Loss, High Isolation, Low PDL Wide Operating Wavelength: C-Band ITU ( C17/H17~ C61/H61) Wide Operating Temperature: -20 to 70°C

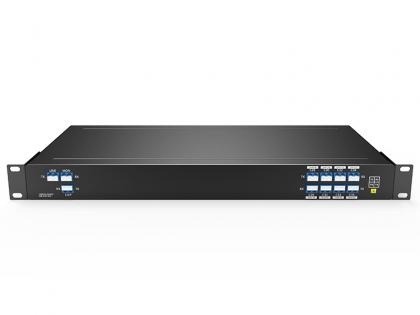

Super C-band 60ch+MON 100GHz DWDM MUX/DEMUX 1U LC/UPC This 60 Channels DWDM Mux Demux has 100GHz channel spacing and performs 60 channel multiplexing or demultiplexing at the ITU wavelengths in Super C-band, greatly expanding the effective working spectrum compared with the traditional C band and extended C band. It offers a combination of low optical insertion loss and high channel isolation along with long term reliability Product Information 60 Channels Super C-band 100GHz with Monitor Port, LC/UPC, Dual Fiber DWDM Mux Demux, 1U Rack Mount Configuration Product Application Optical Specifications Parameter Specification Units Notes Min Type Max Channel Spacing 100 Ghz Technology AAWG (Flat-top) Nos of Channel 60 Channels Channel Frequencies ITU Grid THz Available Channel Frequency Range Odd 190.75 196.650 THz 1524.50-1571.65nm Even 190.7 196.600 THz 1524.89-1572.06 Channel Passband -12.5 +12.5 Ghz -0.10 +0.10 nm Center Wavelength Accuracy -0.05 +0.05 nm Insertion Loss@com 6 6.7 dB @Center Wavelength Insertion Loss@mon 22 dB 1% Passband Ripple 1.0 1.5 nm Full Bandwidth Bandwidth @1.0dB 0.22 nm Bandwidth @3.0dB 0.42 nm Bandwidth @20dB 1.20 nm Insertion Loss Uniformity at ITU 1.20 dB Polarization Dependent Loss 0.5 dB Adjacent Channel Isolation 25 dB Non-Adjacent Channel Isolation 30 dB Total Cross Talk 24 24 dB Directivity 40 dB Return Loss with connectors 40 45 dB Chromatic Dispersion -20 +20 ps/nm PDL 0.5 dB PMD 1.0 ps Optical Power Handling of Common Port 24 dBm Net Weight 3.5 KGS Dimensions (HxWxD) 44x481.8x230mm mm Operating Conditions Parameter Min Max Units Temperature -5 65 ℃ Humidity Non-condensing 0 90 % R.H. Storage Conditions Parameter Min Max Units Temperature -40 85 ℃ Humidity Non-condensing 0 90 % R.H.

Product Features   Supports smooth upgrade of CWDM system to 18-channel customization. Supports smooth upgrade of DWDM system to 96-channel customization. Completely passive, no power supply or adjustment required, transparent transmission. Supports online capacity expansion and upgrade, simple maintenance, easy operation. Supports CWDM and DWDM (100GHz/75GHz/50GHz) applications. Supports various application scenarios such as single fiber unidirectional, single fiber bidirectional, and dual fiber bidirectional. Low insertion loss, high channel isolation, high reliability and stability, compliant with GR-1221 standard.
