The Single fiber 8ch (16waves) O-BAND DWDM MUX DEMUX is designed by FIBERWDM, it is totally passive DWDM device, and support low insertion loss( wavelength ports＜4.8dB; ). Waves are 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45/1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm, support 8CH business on one fiber transmission.

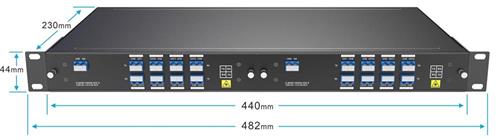

Single Fiber 8CH (16Waves) O-BAND DWDM MUX DEMUX, LC/UPC, LGX Box,
and 2 Slots 1U Rack

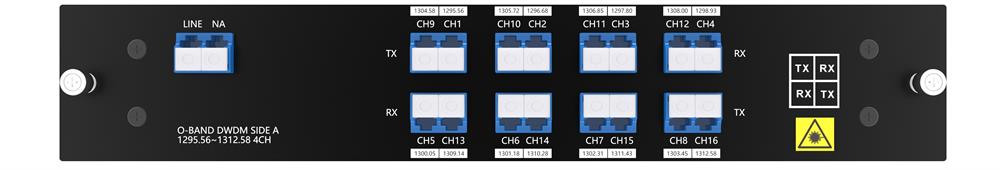

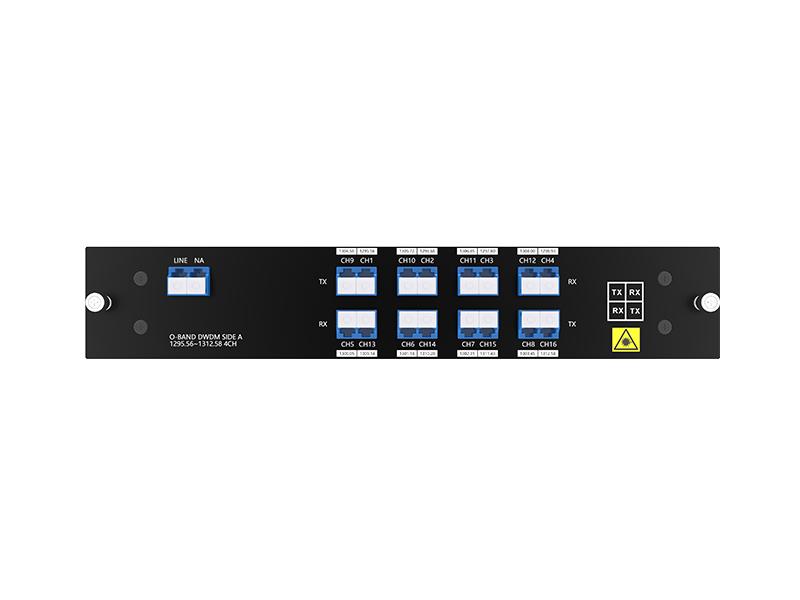

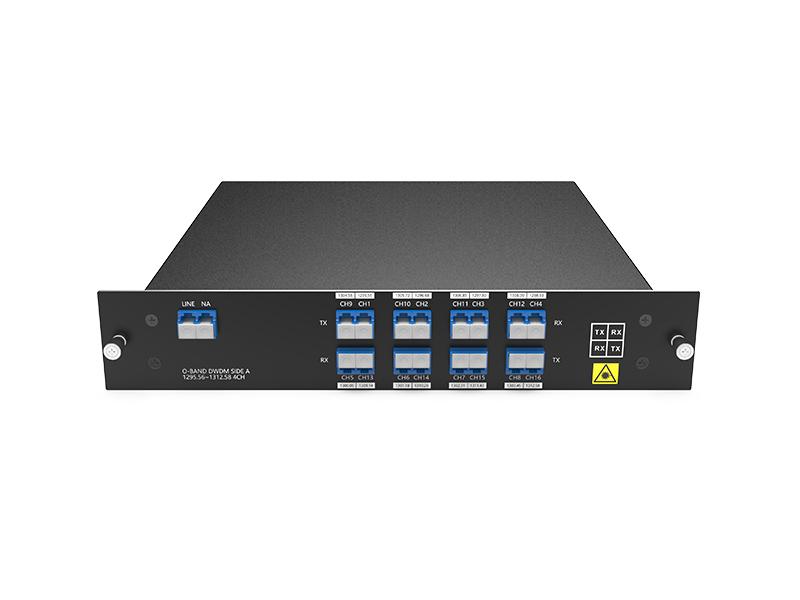

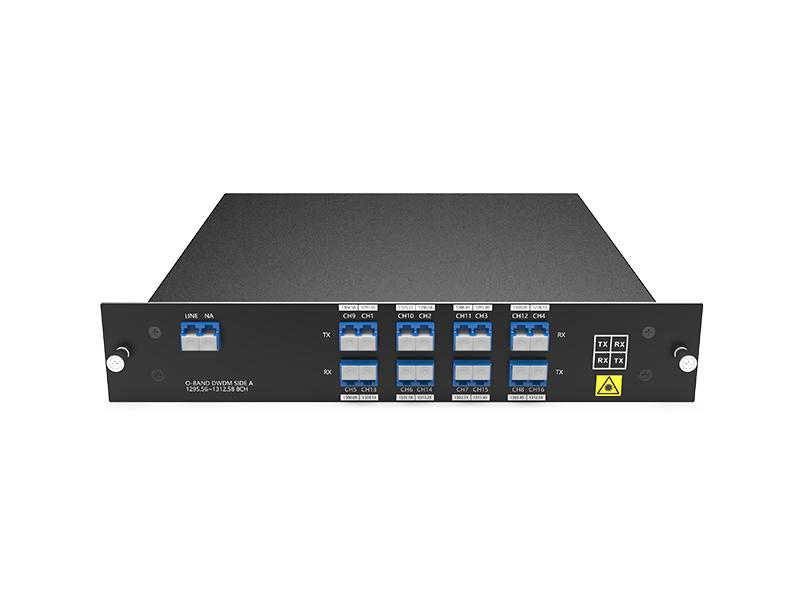

Product Panel

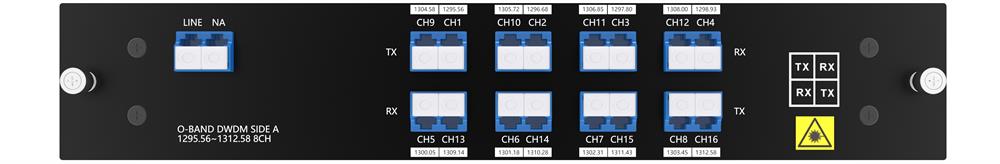

8CH O-BAND DWDM Single Fiber RX (1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45nm)
TX ( 1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm) Side A
8CH O-BAND DWDM Single Fiber RX (1304.58/1305.72/1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm)
TX ( 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45nm) Side B

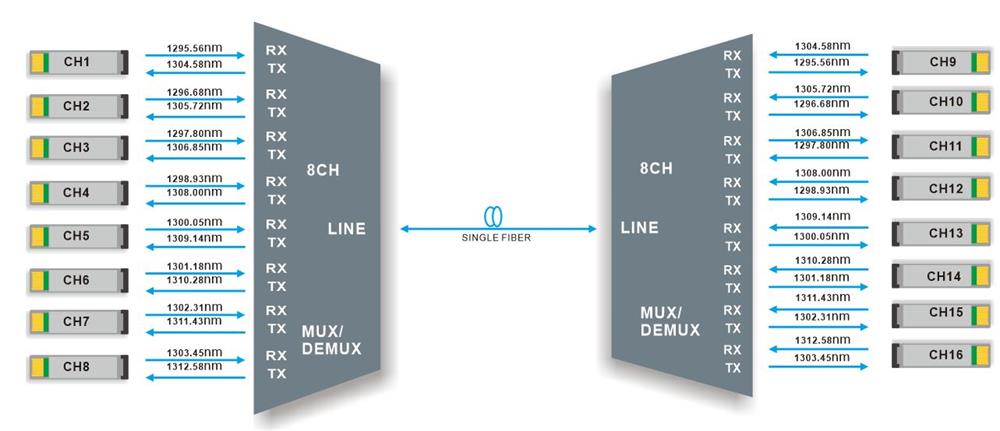

Line Link
8CH O-Band DWDM MUX DEMUX Single fiber transmission
8Channels O-BAND DWDM MUX DEMUX, supports 8 channels difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Work Wavelength | 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45/1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm | Operating Wavelength | 1260~1360nm |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 4.8dB | Insertion Loss Temperature Sensitivity | ≤ 0.5dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.2ps | Polarization Dependent Loss | ≤ 0.2dB |
| Channel Isolation | Adjacent ≥25dB Non-adjacent ≥ 35dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 1.5KG |
Dimensions (HxWxD) |

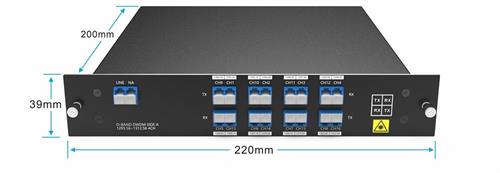

LGX Box: 220*200*39mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information

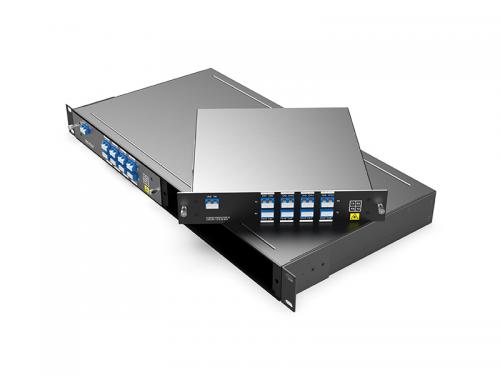

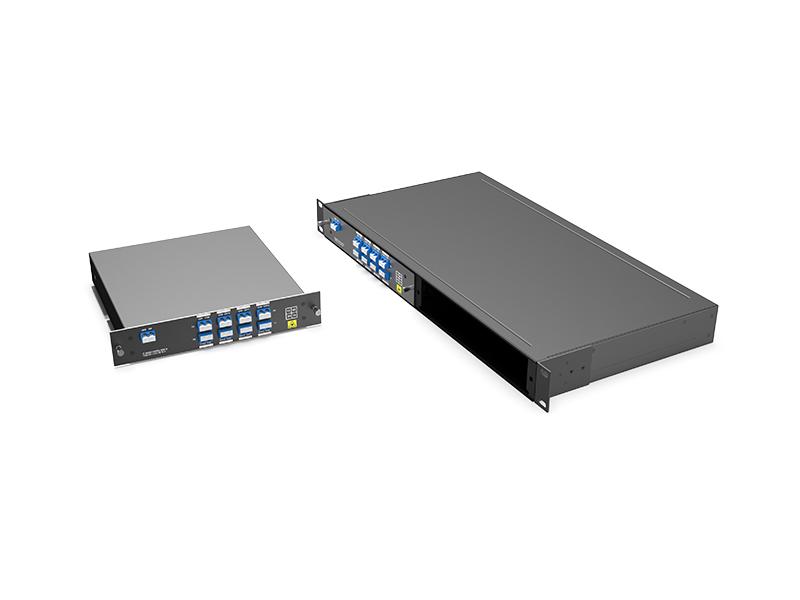

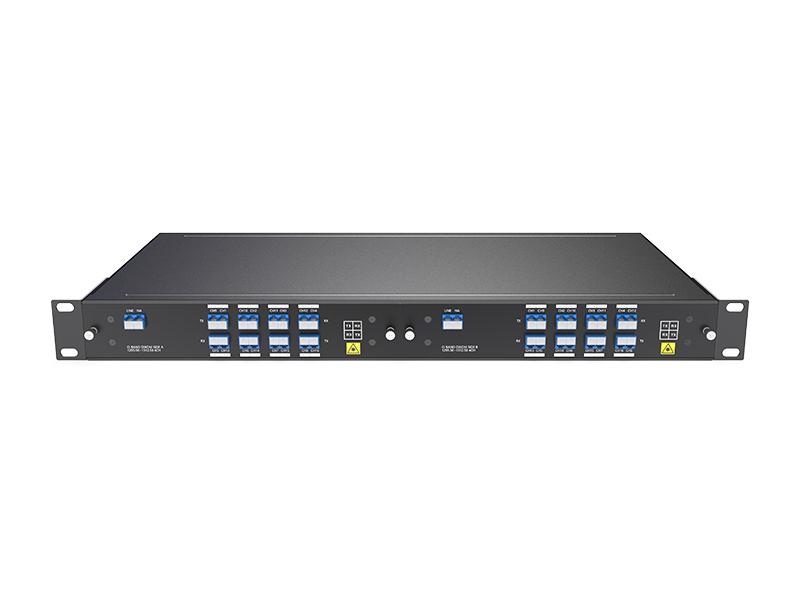

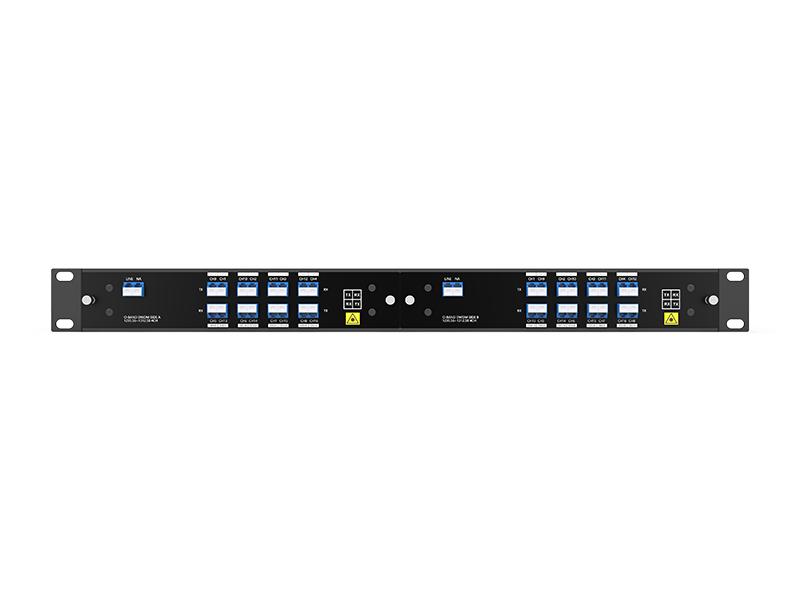

LGX BOX Plug in 2-Slot 1U Rack 2-Slot 1U Rack for LGX BOX
Order Information
| Product No. | Product description |
| OMD16-LGX01-1310A |
O-BAND DWDM MUX DEMUX 8CH 16waves RX (1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45nm) TX ( 1304.58/1305.72/ 1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm) , Single fiber, LC/UPC , LGX Box, Side A |
| ODD16-LGX01-1310B |
O-BAND DWDM MUX DEMUX 8CH 16waves RX (1304.58/1305.72/1306.85/1308.00/1309.14/1310.28/1311.43/1312.58nm) TX ( 1295.56/1296.68/1297.80/1298.93/1300.05/1301.18/1302.31/1303.45nm) , Single fiber, LC/UPC , LGX Box, Side B |
| 1U02-2LGX | 19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note: We Support Customized Design, please contact us by email.
