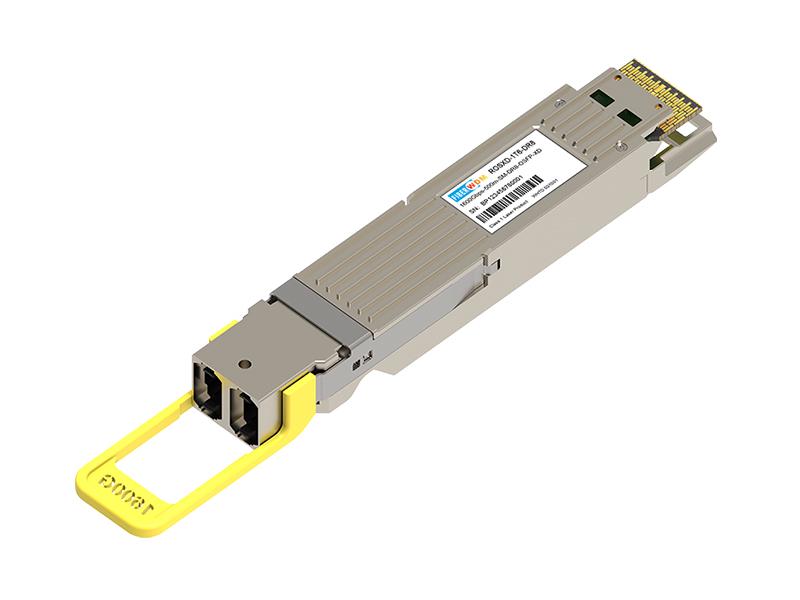

1.6T OSFP-XD DR8

ROSXD-1T6-2FR4 is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.

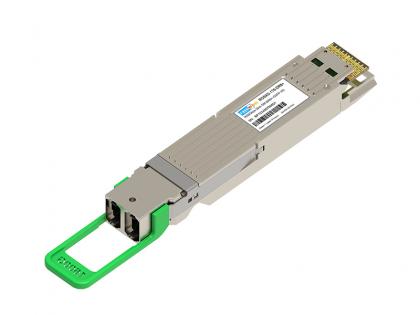

ROS224-1T6-DR8 is designed to transmit and receive serial optical data links up to 212.5 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.

ROSXD-1T6-DR8+ is designed to transmit and receive serial optical data links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 1600G Ethernet specs and OSFP-XD MSA.

The 1600G OSFP1600 2xDR4 Transceiver is designed to transmit and receive serial optical data links up to 212.5 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.

Feature： Polarization - insensitive High stability and reliability High pump - efficiency Wide bandwidth covering C and L bands (1525 - 1565nm) Low noise figure (4 - 6dB) Low insertion loss

Features CAUI -10 Electrical Interface:10 Lanes @10Gbit/s for CFP port CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for QSFP28 port Hot Pluggable Low latency FEC MDIO, I2C Support Compliant to CFP MSA Case operating temperature: 0 to 70 °C The RQ-CFP-QSFP28-F Adaptor Module converts a 100 Gigabit CFP port into a 100 Gigabit QSFP28 port. With the Adaptor Module, customers have the flexibility to use the 100 Gigabit CFP interface port of a switch with CFP modules or QSFP28 modules. For 100G Ethernet, reference clock can switch 161.133mhz or 644.531mhz; For OUT 4, reference clock can switch 174.703mhz or 698.812mhz; Users can control whether FEC function is enabled or not through register configuration.

The 4ch(8waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C24, TX C45 to C48; And in side B, the waves are: RX C45 to C48, TX C21 to C24. it conjunct with the DWDM amplifiers and DCM device, the 4ch DWDM transfer system can support a long distance transmission in one fiber. And it is LGX box Plug-in designed, so it can plug in the 4-Slot 1U rack, Max capacity support 4*4channels in the system.

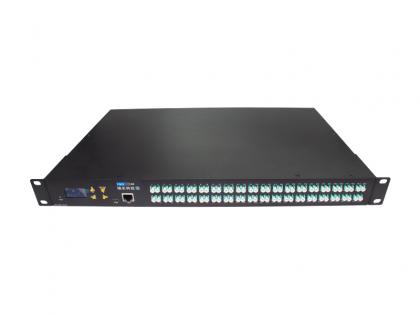

CWDM MUX DEMUX,Multiplexing up to 8 Channels on Fiber Pair Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc. Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics Applied to Metro, Regional CWDM Networks
