The SNAP12 series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module complies with the SNAP12 MSA protocol, utilizes a 10×10Pin pluggable electrical interface, and supports a standard MPO optical connector interface. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

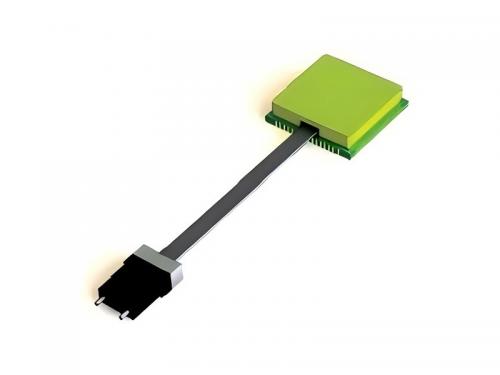

The LCC series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features compact size, low electromagnetic radiation, and strong anti-interference capabilities. The module adopts an LCC (Leadless Chip Carrier) package with a standard MT/MPO pigtail fiber interface. Operating temperature ranges from -55°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

The POB series single-mode parallel optical transceiver module is designed for long-distance high-speed data communication and parallel optical interconnects in applications such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module has compact dimensions of 27mm × 27mm × 7.8mm, employs a 10×10-pin LGA (Land Grid Array) connector for electrical interfacing, and supports a pluggable standard MPO optical connector. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates up to 10.3125 Gbps and a maximum transmission distance of 10 km.

The POB24 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded electrical connector and a 24-core MT/MPO optical interface. It operates within an environmental temperature range of -40°C to +85°C and supports single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

The POB48 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded crimp-style electrical connector and a 48-core MT/MPO optical interface. It operates within a case temperature range of -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
