POB48 Series Parallel Optical Transceiver Module
POB48 Series Parallel Optical Transceiver Module

POB48 Series Parallel Optical Transceiver Module

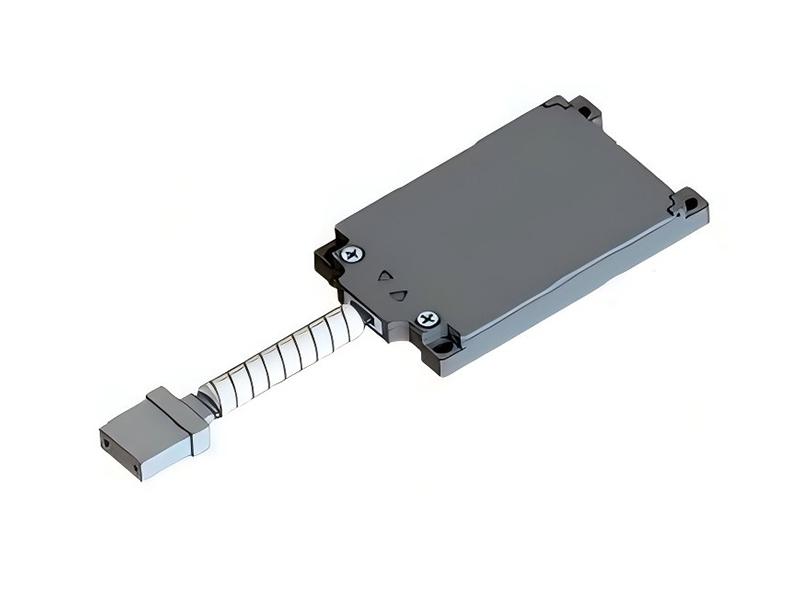

The POB48 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded crimp-style electrical connector and a 48-core MT/MPO optical interface. It operates within a case temperature range of -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

Inquire now
  • Product Detail

POB48 Series Parallel Optical Transceiver Module



Features



u Micro-socket package with 200-pin LGA (Land Grid Array) electrical connector

u Ribbon fiber with 48-core MT/MPO interface, customizable length per user requirements

u Low power consumption (<6 W)

u 12 parallel transmit channels with 850nm VCSEL (Vertical-Cavity Surface-Emitting Laser) array

u 12 parallel receive channels with 850nm photodiode (PD) array

u I2C serial interface with DDMI (Digital Diagnostic Monitoring Interface)

u Wide operating temperature range (Case): -40°C to +85°C



Applications



u Ethernet and Fibre Channel (FC)

u Optical backplane transmission

u Server-to-storage array interconnections

u Radar processing system interconnects



Technical Specifications



Model

Channels

Package

Wavelength

Rate

Tx Power

Rx Sensitivity

Package Structure

Operating Temperature

RPOB48-10G-85I

24-channel Transceiver

POB LGA

850nm

10.3125Gbps

-3～3dBm

≤-9dBm

Structure 1

-40～+85℃（Case)

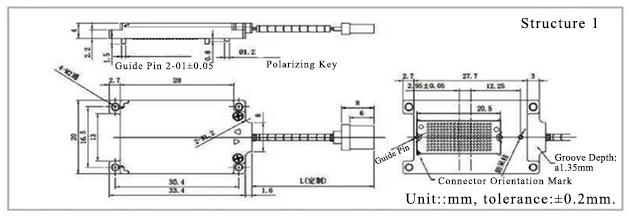

Dimensions
