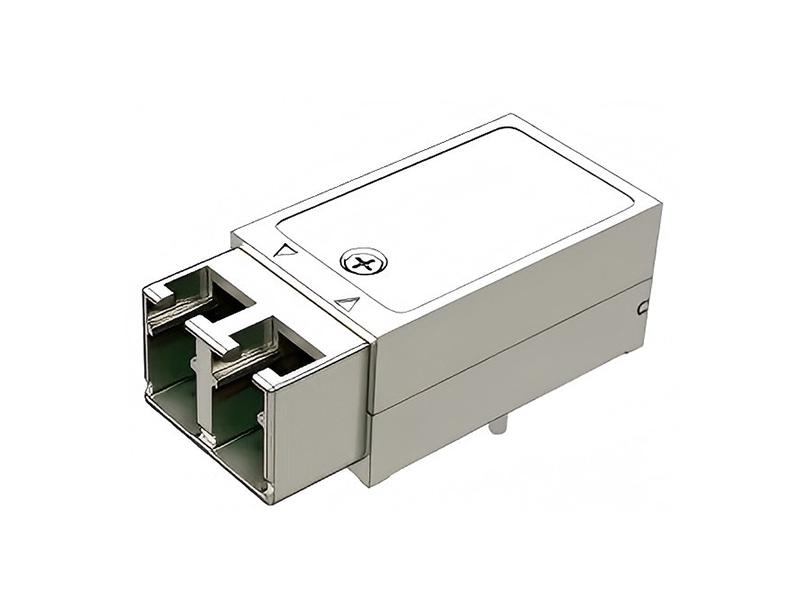

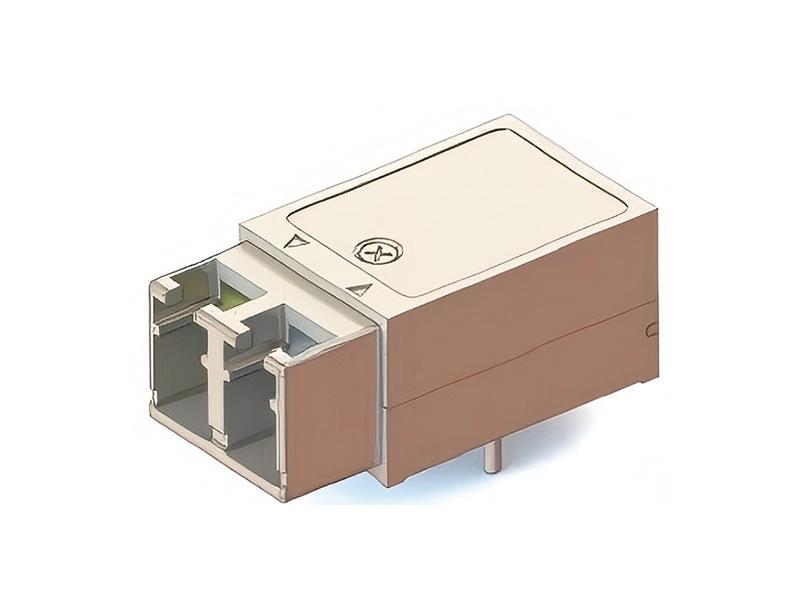

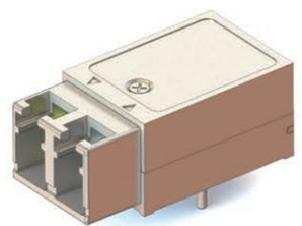

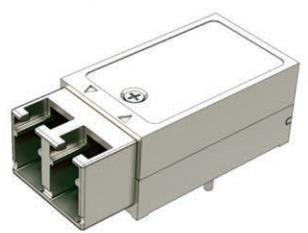

12PIN Mini Single-Channel Optical Module
12PIN Mini Single-Channel Optical Module 12PIN Mini Single-Channel Optical Module

12PIN Mini Single-Channel Optical Module

The 12PIN mini single-channel optical module is designed for optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, and switches. It features a 12PIN pin header with an I2C management interface and optimized signal pin design. It operates at wavelengths of 850nm/1310nm/1550nm, with a temperature range of -40°C to +85°C, supporting rates from 1.25Gbps to 10.3125Gbps.

Inquire now
  • Product Detail

12PIN Mini Single-Channel Optical Module



Features



  • Compact size, full-metal casing, anti-vibration design
  • Supports up to 10.3125 Gbps
  • 12PIN pin header interface
  • Low power consumption (<1 W)
  • Wide operating temperature range: -40°C to +85°C
  • I2C interface with DDMI digital diagnostics



Applications



  • Ethernet, SONET/SDH/FC
  • Switches
  • Digital radar arrays
  • Optical backplane transmission



Technical Specifications



Model

Channels

Wavelength

Rate

Tx Power

Rx Sensitivity

Package Structure

Operating Temperature

RM12-6GS10-31I

Single-mode, Dual-fiber Bidirectional

1310nm

6.25Gbps

-5～3dBm

≤-14dBm

Structure 1

-40～+85℃

RM12-10GS10-31I

1310nm

10.3125Gbps

-5～3dBm

≤-11dBm

Structure 1

RM12-6GS10-55I

1550nm

6.25Gbps

-5～3dBm

≤-14dBm

Structure 1

RM12-10GS10-55I

1550nm

10.3125Gbps

-5～3dBm

≤-11dBm

Structure 1

RM12-6GS10-XXI

CWDM

Dual-fiber Bidirectional

ITU-T G.694.2 compliant

6.25Gbps

-5～3dBm

≤-14dBm

Structure 1

RM12-10GS10-XXI

 10.3125Gbps

-5～3dBm

≤-11dBm

Structure 1

RM12-6GM03-85I

Multi-mode, Dual-fiber Bidirectional

850nm

6.25Gbps

-5～1dBm

≤-14dBm

Structure 2

RM12-10GM03-85I

850nm

10.3125Gbps

-5～1dBm

≤-11dBm

Structure 2

RM12-10G-85M5531S-I

Single/Multi-mode Hybrid, Dual-fiber Bidirectional

850nm T

1550/1330nm R

10.3125Gbps

-5～2dBm

≤-18dBm

Structure 2

RM12-10G-31S85M-I

1310nm T

850nm R

10.3125Gbps

-5～3dBm

≤-11dBm

Structure 2

RM12-10G-XXC85M-I

CWDM wavelengths  T

850nm R

10.3125Gbps

-5～3dBm

≤-11dBm

Structure 2

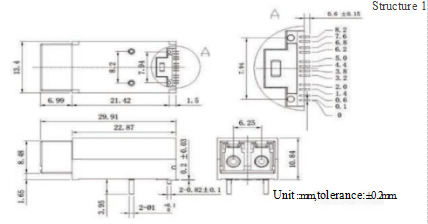

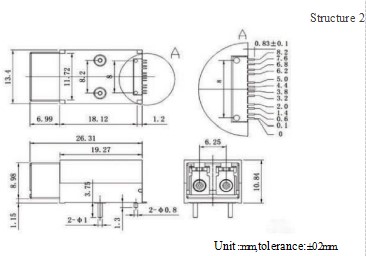

Dimensions





Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
10PIN Miniature Single-Channel Optical Module 10PIN Miniature Single-Channel Optical Module
The 10PIN miniature single-channel optical module is primarily used in optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, switches, and other digital fiber communication fields. It features a compact size, vibration resistance, and anti-interference capabilities. The module adopts an all-metal structure with a 10PIN pin header as the electrical interface. It integrates a single-channel optical transmitter and receiver, operating at wavelengths of 850nm/1310nm/1550nm. The operating temperature ranges from -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
SNAP12 Series Parallel Optical Transceiver Module SNAP12 Series Parallel Optical Transceiver Module
The SNAP12 series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module complies with the SNAP12 MSA protocol, utilizes a 10×10Pin pluggable electrical interface, and supports a standard MPO optical connector interface. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
Series Parallel LCC Optical Transceiver Module LCC Series Parallel Optical Transceiver Module
The LCC series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features compact size, low electromagnetic radiation, and strong anti-interference capabilities. The module adopts an LCC (Leadless Chip Carrier) package with a standard MT/MPO pigtail fiber interface. Operating temperature ranges from -55°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module
The POB series single-mode parallel optical transceiver module is designed for long-distance high-speed data communication and parallel optical interconnects in applications such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module has compact dimensions of 27mm × 27mm × 7.8mm, employs a 10×10-pin LGA (Land Grid Array) connector for electrical interfacing, and supports a pluggable standard MPO optical connector. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates up to 10.3125 Gbps and a maximum transmission distance of 10 km.
Read More
POB24 Series Parallel Optical Transceiver Module POB24 Series Parallel Optical Transceiver Module
The POB24 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded electrical connector and a 24-core MT/MPO optical interface. It operates within an environmental temperature range of -40°C to +85°C and supports single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
POB48 Series Parallel Optical Transceiver Module POB48 Series Parallel Optical Transceiver Module
The POB48 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded crimp-style electrical connector and a 48-core MT/MPO optical interface. It operates within a case temperature range of -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More

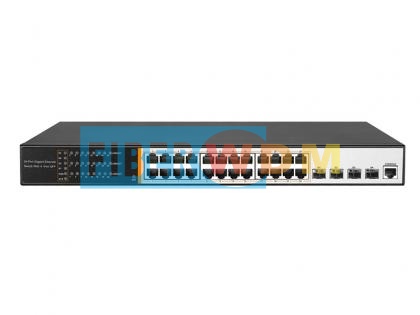

4-Optical 24-Electric Gigabit Management Switch FW4024G 4-Optical 24-Electric Gigabit Management Switch FW4024G
