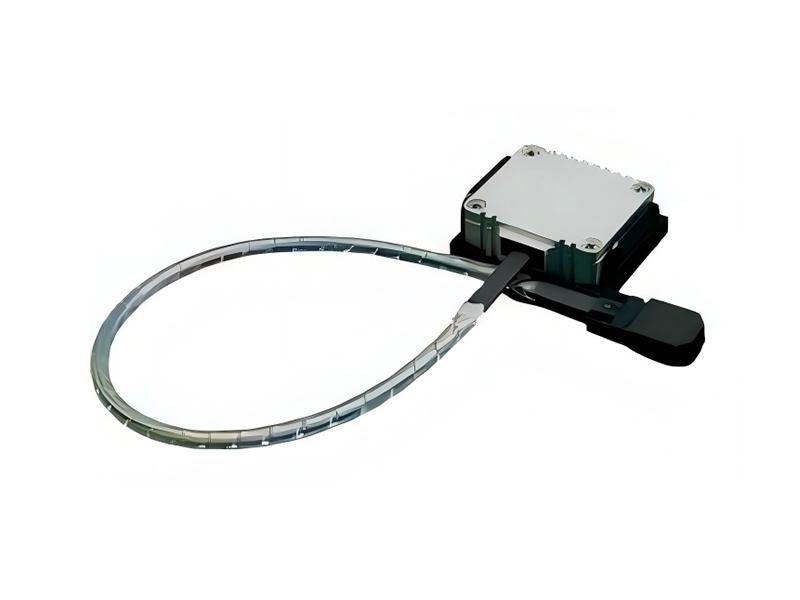

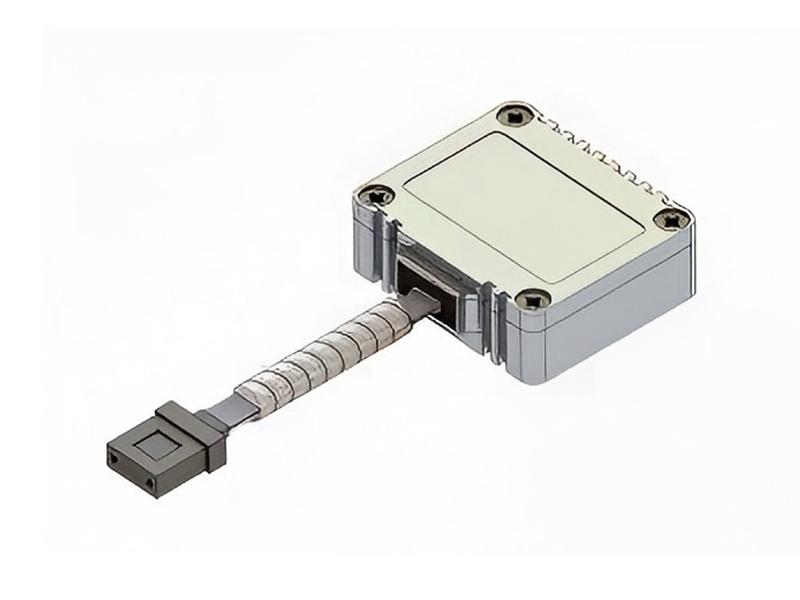

POB24 Series Parallel Optical Transceiver Module

The 10PIN miniature single-channel optical module is primarily used in optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, switches, and other digital fiber communication fields. It features a compact size, vibration resistance, and anti-interference capabilities. The module adopts an all-metal structure with a 10PIN pin header as the electrical interface. It integrates a single-channel optical transmitter and receiver, operating at wavelengths of 850nm/1310nm/1550nm. The operating temperature ranges from -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

The 12PIN mini single-channel optical module is designed for optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, and switches. It features a 12PIN pin header with an I2C management interface and optimized signal pin design. It operates at wavelengths of 850nm/1310nm/1550nm, with a temperature range of -40°C to +85°C, supporting rates from 1.25Gbps to 10.3125Gbps.

The SNAP12 series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module complies with the SNAP12 MSA protocol, utilizes a 10×10Pin pluggable electrical interface, and supports a standard MPO optical connector interface. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

The LCC series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features compact size, low electromagnetic radiation, and strong anti-interference capabilities. The module adopts an LCC (Leadless Chip Carrier) package with a standard MT/MPO pigtail fiber interface. Operating temperature ranges from -55°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

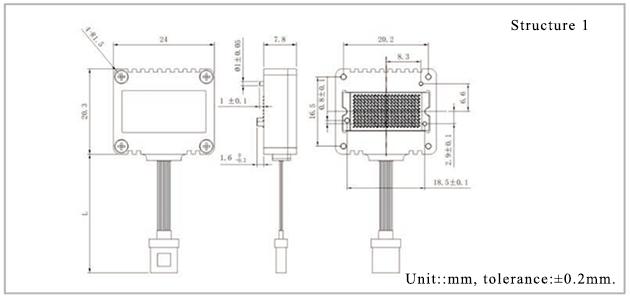

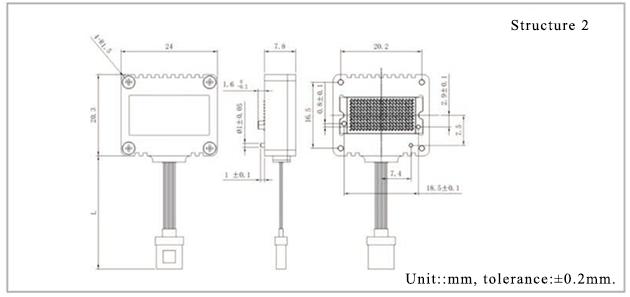

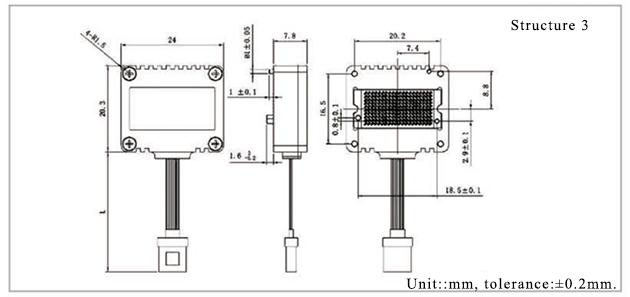

The POB series single-mode parallel optical transceiver module is designed for long-distance high-speed data communication and parallel optical interconnects in applications such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module has compact dimensions of 27mm × 27mm × 7.8mm, employs a 10×10-pin LGA (Land Grid Array) connector for electrical interfacing, and supports a pluggable standard MPO optical connector. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates up to 10.3125 Gbps and a maximum transmission distance of 10 km.

The POB48 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded crimp-style electrical connector and a 48-core MT/MPO optical interface. It operates within a case temperature range of -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

Feature Description   More compact structural design: module height only 12mm Surface-mount I/O pins optimized for high-speed signal integrity Full metal casing Wide temperature range with anti-vibration design Equipped with received data signal detection function Operates solely on +3.3V single power supply LC interface type Pin and mounting dimensions fully compatible with STRATOS products

Feature Description   More compact structural design – module height only 12mm Surface-mount I/O pins optimized for high-speed signal integrity Full metal casing Military-grade temperature range with anti-vibration design Equipped with received data signal detection function Operates solely on +3.3V single power supply LC interface type Pin and mounting dimensions fully compatible with STRATOS products
