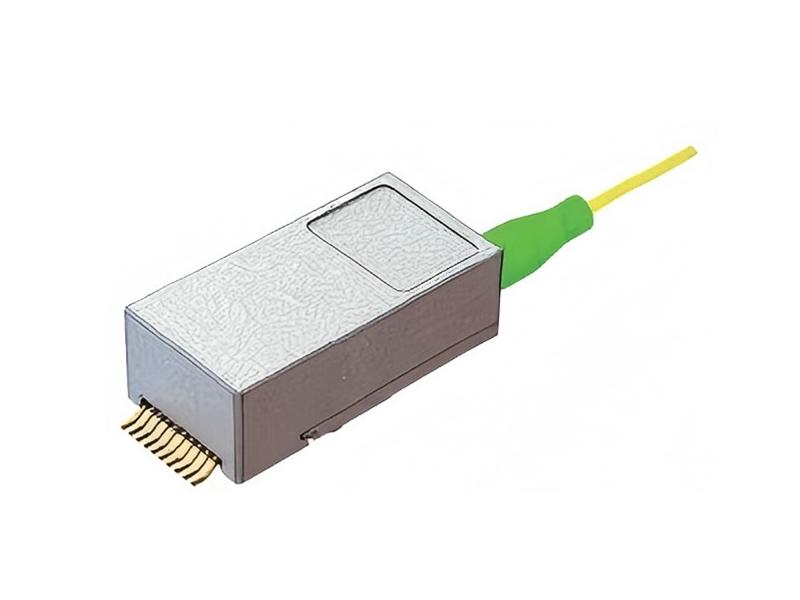

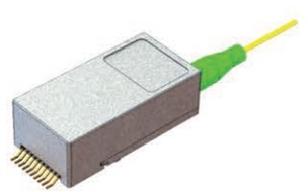

10PIN Miniature Single-Channel Optical Module

Features

• Compact size, high reliability, full-metal casing, anti-vibration design
• Supports up to 10.3125Gbps with backward compatibility
• 10PIN pin header electrical interface
• Low power consumption (<1W)
• Wide operating temperature range: -40°C to +85°C

Applications

• Ethernet, SONET/SDH/FC
• Switches
• Digital radar arrays
• Optical backplane transmission

Model

Channels

Wavelength

Rate

Tx Power

Rx Sensitivity

Package Structure

Operating Temperature

RM-03S10-31I

Single-mode

Dual-Fiber Bi-Directional

1310nm

1.25Gbps

-5～2dBm

≤-19dBm

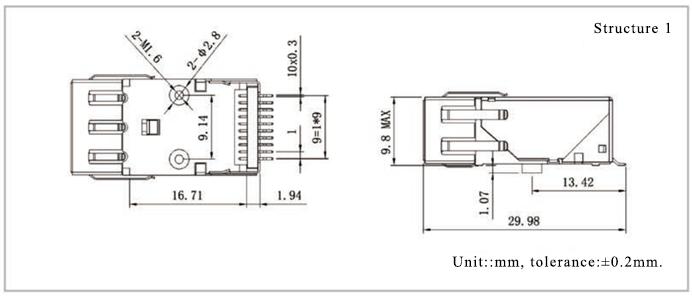

Structure 1

-40～+85℃

RM-6GS10-31I

1310nm

6.25Gbps

-5～2dBm

≤-14dBm

Structure 1

RM-10GS10-31I

1310nm

10.3125Gbps

-5～2dBm

≤-11dBm

Structure 1

RM-10GS10-55I

1310nm

3.125Gbps

-5～2dBm

≤-16dBm

Structure 1

RM-6GC10-XXI

CWDM

Dual-Fiber Bi-Directional

ITU-T G.694.2

6.25Gbps

-5～3dBm

≤-14dBm

Structure 1

RM-10GC10-XXI

10.3125Gbps

-5～3dBm

≤-11dBm

Structure 1

RM-03M05-85I

Multi-mode Dual-Fiber Bi-Directional

850nm

1.25Gbps

-5～1dBm

≤-18dBm

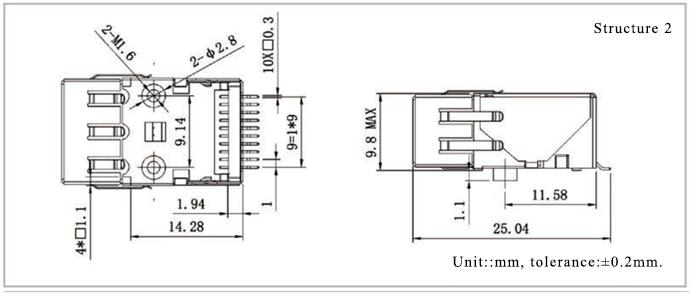

Structure 2

RM-6GM03-85I

850nm

6.25Gbps

-5～1dBm

≤-14dBm

Structure 2

RM-10GM03-85I

850nm

10.3125Gbps

-5～1dBm

≤-11dBm

Structure 2

RM-10G04-85M5531S-I

Single/Multi-mode Hybrid Dual-Fiber Bi-Directional

850nm T

1550/1330nm R

10.3125Gbps T

2.5Gbps R

-5～2dBm

≤-18dBm

Structure 2

RM-10G-31S85M-I

1310nm T

850nm R

10.3125Gbps

-5～3dBm

≤-11dBm

Structure 2

RM-10GS10-2733I

Single-mode Single-Fiber Bi-Directional

1270nm T

1330nm R

10.3125Gbps

-3～5dBm

≤-11dBm

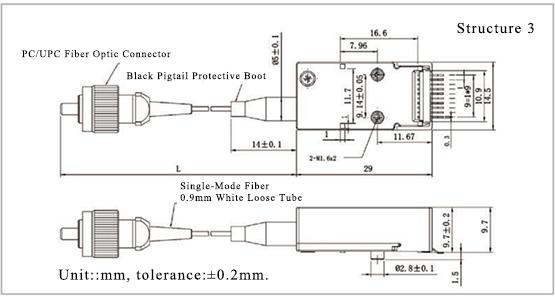

Structure 3

RM-10GS10-3327I

1330nm T

1270nm R

10.3125Gbps

-3～5dBm

≤-11dBm

Structure 3

RM-10GS10-5531I

1550nm T

1310nm R

10.3125Gbps

-3～5dBm

≤-11dBm

Structure 3

RM-10GS10-3155I

1310nm T

1550nm R

10.3125Gbps

-3～5dBm

≤-11dBm

Structure 3
