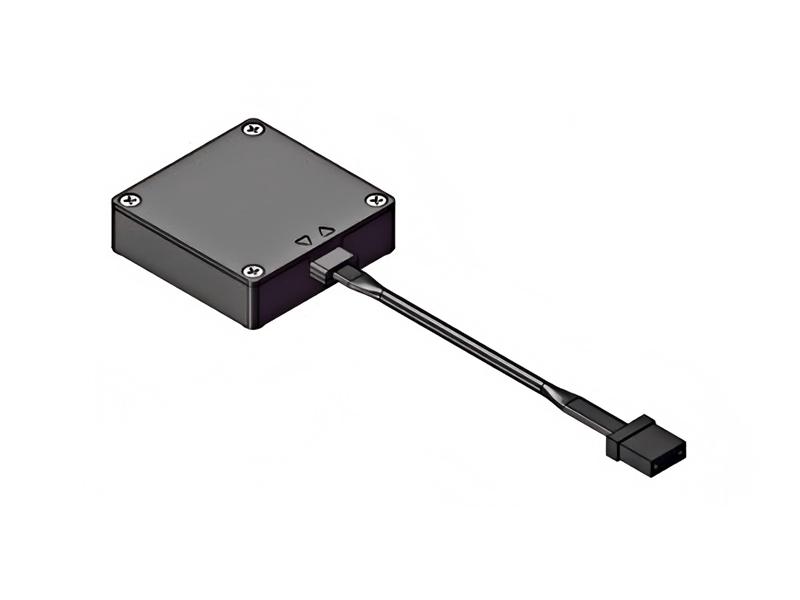

POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module
POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module

POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module

The POB series single-mode parallel optical transceiver module is designed for long-distance high-speed data communication and parallel optical interconnects in applications such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module has compact dimensions of 27mm × 27mm × 7.8mm, employs a 10×10-pin LGA (Land Grid Array) connector for electrical interfacing, and supports a pluggable standard MPO optical connector. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates up to 10.3125 Gbps and a maximum transmission distance of 10 km.

Inquire now
  • Product Detail

POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module



Features



  • Micro-socket package with 100-pin LGA electrical connector
  • Ribbon fiber with 12-core MT/MPO interface, customizable length per user requirements
  • Low power consumption (<3.5 W)
  • 4 parallel transmit channels at 1310nm wavelength (VCSEL array)
  • 4 parallel receive channels with 1310nm photodiode (PD) array
  • I2C serial interface with DDMI (Digital Diagnostic Monitoring Interface)
  • Wide operating temperature range: -40°C to +85°C, excellent parameter consistency



Applications



  • Ethernet and Fibre Channel (FC)
  • Optical backplane transmission
  • Server-to-storage array interconnections
  • Radar processing system interconnects



Technical Specifications



Model

Channels

Package

Wavelength

Rate

Tx Power

Rx Sensitivity

Package Structure

Operating Temperature

RPOB4-10G-31I

4-channel Transceiver (Tx/Rx)

POB LGA

1310nm

10.3125Gbps

-5～2dBm

≤-11dBm

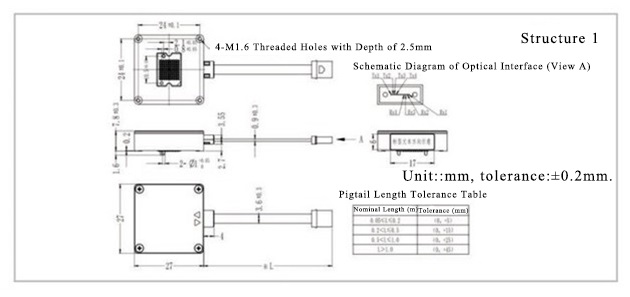

Structure 1

-40～+85℃



Dimensions





Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
10PIN Miniature Single-Channel Optical Module 10PIN Miniature Single-Channel Optical Module
The 10PIN miniature single-channel optical module is primarily used in optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, switches, and other digital fiber communication fields. It features a compact size, vibration resistance, and anti-interference capabilities. The module adopts an all-metal structure with a 10PIN pin header as the electrical interface. It integrates a single-channel optical transmitter and receiver, operating at wavelengths of 850nm/1310nm/1550nm. The operating temperature ranges from -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
12PIN Mini Single-Channel Optical Module 12PIN Mini Single-Channel Optical Module
The 12PIN mini single-channel optical module is designed for optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, and switches. It features a 12PIN pin header with an I2C management interface and optimized signal pin design. It operates at wavelengths of 850nm/1310nm/1550nm, with a temperature range of -40°C to +85°C, supporting rates from 1.25Gbps to 10.3125Gbps.
Read More
SNAP12 Series Parallel Optical Transceiver Module SNAP12 Series Parallel Optical Transceiver Module
The SNAP12 series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module complies with the SNAP12 MSA protocol, utilizes a 10×10Pin pluggable electrical interface, and supports a standard MPO optical connector interface. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
Series Parallel LCC Optical Transceiver Module LCC Series Parallel Optical Transceiver Module
The LCC series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features compact size, low electromagnetic radiation, and strong anti-interference capabilities. The module adopts an LCC (Leadless Chip Carrier) package with a standard MT/MPO pigtail fiber interface. Operating temperature ranges from -55°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
POB24 Series Parallel Optical Transceiver Module POB24 Series Parallel Optical Transceiver Module
The POB24 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded electrical connector and a 24-core MT/MPO optical interface. It operates within an environmental temperature range of -40°C to +85°C and supports single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
POB48 Series Parallel Optical Transceiver Module POB48 Series Parallel Optical Transceiver Module
The POB48 series parallel optical transceiver module is designed for defense communication command systems and subsystems, enabling bidirectional conversion between multi-channel electrical and optical signals. The module adopts a hermetically sealed micro-socket package structure, featuring a spring-loaded crimp-style electrical connector and a 48-core MT/MPO optical interface. It operates within a case temperature range of -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More
MEMS Fiber Optical Switch MXN MEMS Optical Switch
Features Proven MEMS durability and reliability Compact Form Factor TTL UART interface Qualified to Telcordia GR-1073-CORE and RoHS Applications Optical path selection AsAutomatic optical distribution rack
Read More

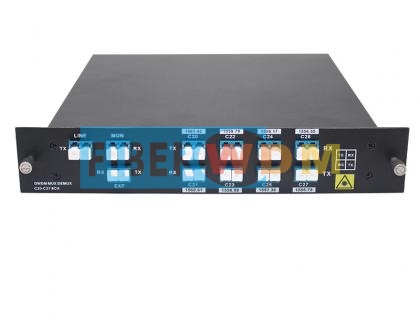

8ch DWDM MUX DEMUX Dual Fiber 8CH C20-C27 DWDM MUX DEMUX With Monitor EXP Port LGX Box
