SNAP12 Series Parallel Optical Transceiver Module
SNAP12 Series Parallel Optical Transceiver Module SNAP12 Series Parallel Optical Transceiver Module

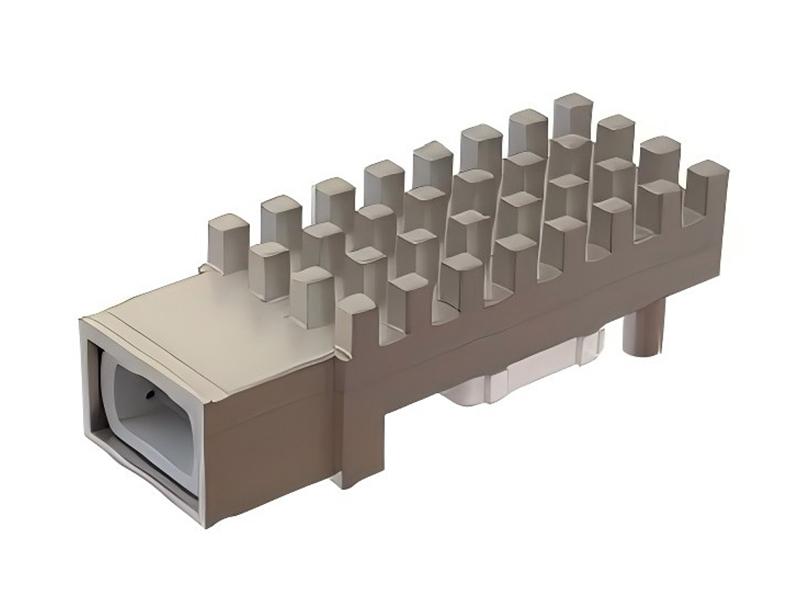

SNAP12 Series Parallel Optical Transceiver Module

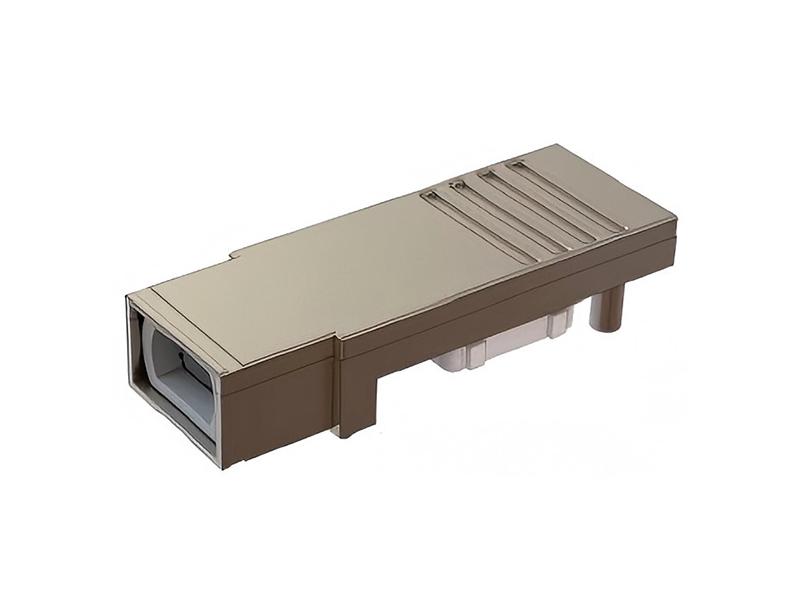

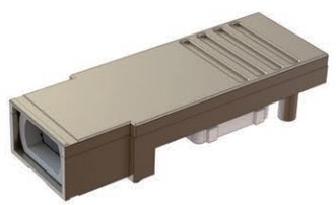

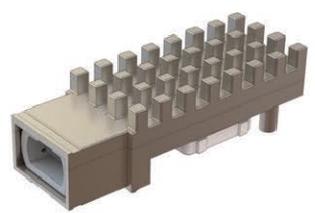

The SNAP12 series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features low electromagnetic radiation and strong anti-interference capabilities. The module complies with the SNAP12 MSA protocol, utilizes a 10×10Pin pluggable electrical interface, and supports a standard MPO optical connector interface. Operating temperature ranges from -40°C to +85°C, with single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.

Inquire now
  • Product Detail

SNAP12 Series Parallel Optical Transceiver Module





Features



  • Mechanical dimensions compliant with the SNAP12 MSA protocol
  • 10×10Pin pluggable electrical interface and MPO optical connector
  • Low power consumption (<1.8 W)
  • Integrated 850nm VCSEL array on the transmitter side
  • Integrated 850nm photodiode (PD) array on the receiver side
  • I2C serial interface with DDMI (Digital Diagnostic Monitoring Interface)
  • Wide operating temperature range: -40°C to +85°C, excellent parameter consistency
  •

Applications



  • Ethernet and Fibre Channel (FC) optical backplane transmission
  • Server-to-storage array interconnections
  • Radar processing system interconnects



Technical Specifications



Model

Channels

Package

Wavelength

Rate

Tx Power

Rx Sensitivity

Package Structure

Operating Temperature

RSN12R-3GM-85-I

12-channel Receiver

SNAP12

850nm

3.125Gbps

－

≤-16dBm

Structure 1

-40～+85℃

RSN12R-3GM-85A-I

SNAP12

(no heatsink)

850nm

3.125Gbps

－

≤-16dBm

Structure 2

RSN12R-6GM-85-I

SNAP12

850nm

6.25Gbps

－

≤-14dBm

Structure 1

RSN12R-10GM-85-I

SNAP12

(no heatsink)

850nm

10.3125Gbps

－

≤-11dBm

Structure 2

RSN12T-3GM-85-I

12-channel Transmitter

SNAP12

850nm

3.125Gbps

-5～1dBm

－

Structure 3

RSN12T-3GM-85A-I

SNAP12

(no heatsink)

850nm

3.125Gbps

-5～1dBm

－

Structure 4

RSN12T-6GM-85-I

SNAP12

850nm

6.25Gbps

-5～1dBm

－

Structure 3

RSN12T-10GM-85-I

SNAP12

(no heatsink)

850nm

10Gbps

-5～1dBm

－

Structure 4

RSN12-3GM-85-I

4-channel Transceiver

SNAP12

850nm

3.125Gbps

-5～1dBm

≤-16dBm

Structure 5

RSN12-3GM-85A-I

SNAP12

(no heatsink)

850nm

3.125Gbps

-5～1dBm

≤-16dBm

Structure 6

RSN12-6GM-85-I

SNAP12

850nm

6.25Gbps

-5～1dBm

≤-14dBm

Structure 5

RSN12-6GM-85A-I

SNAP12

(no heatsink)

850nm

6.25Gbps

-5～1dBm

≤-14dBm

Structure 6

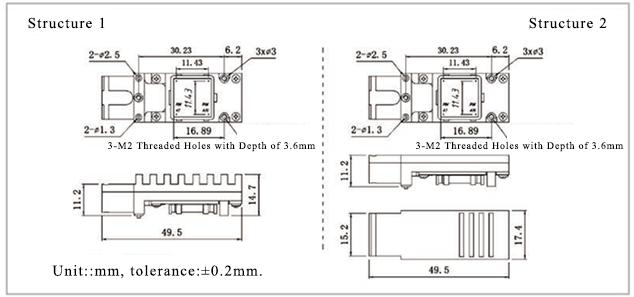

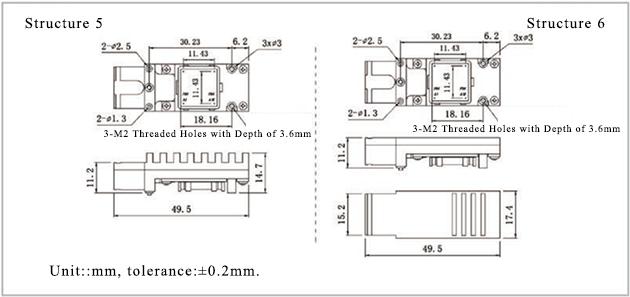

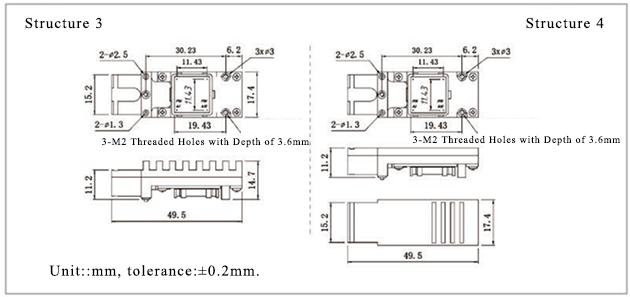

Dimensions





Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

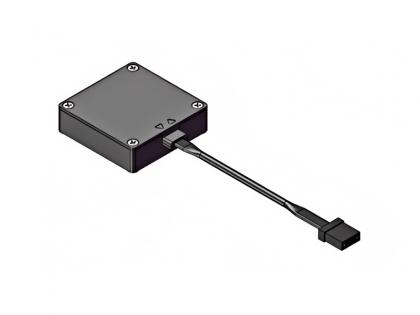

10PIN Miniature Single-Channel Optical Module 10PIN Miniature Single-Channel Optical Module
The 10PIN miniature single-channel optical module is primarily used in optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, switches, and other digital fiber communication fields. It features a compact size, vibration resistance, and anti-interference capabilities. The module adopts an all-metal structure with a 10PIN pin header as the electrical interface. It integrates a single-channel optical transmitter and receiver, operating at wavelengths of 850nm/1310nm/1550nm. The operating temperature ranges from -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More

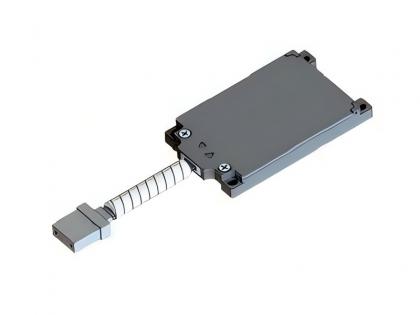

12PIN Mini Single-Channel Optical Module 12PIN Mini Single-Channel Optical Module
The 12PIN mini single-channel optical module is designed for optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, and switches. It features a 12PIN pin header with an I2C management interface and optimized signal pin design. It operates at wavelengths of 850nm/1310nm/1550nm, with a temperature range of -40°C to +85°C, supporting rates from 1.25Gbps to 10.3125Gbps.
Read More

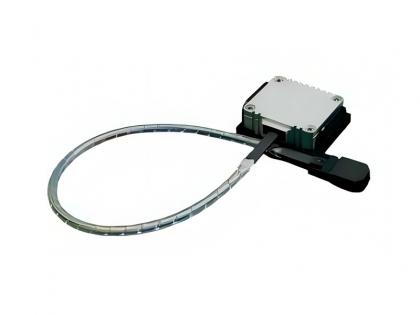

Series Parallel LCC Optical Transceiver Module LCC Series Parallel Optical Transceiver Module
The LCC series parallel optical transceiver module is designed for short-distance high-speed data communication and parallel optical interconnects, such as optical backplanes, server-to-storage array connections, and radar processing systems. It features compact size, low electromagnetic radiation, and strong anti-interference capabilities. The module adopts an LCC (Leadless Chip Carrier) package with a standard MT/MPO pigtail fiber interface. Operating temperature ranges from -55°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
Read More

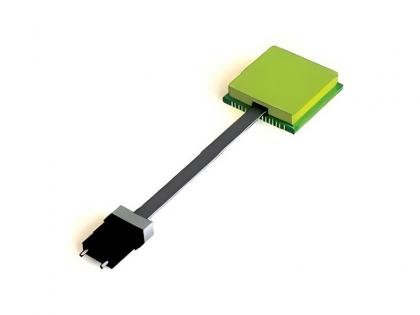

POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module POB Series Single-Mode 4-Channel Parallel Optical Transceiver Module
