/16 OTAPs Passive Network Optical Taps

Network Otaps
Network Otaps

16 OTAPs Passive Network Optical Taps

  • 16 OTAPs Network Optical Taps， Support 8 lines traffic copy
  • Low insertion loss – minimize impact on data flows
  • Fully passive – monitoring infrastructure does not impact network availability
  • Does not modify traffic – tools see real copies of the packets from the network
  • Requires no power and does not have an IP address, providing safety from remote attacks
  • Cost effective – avoid costly expenses managing SPAN ports


Inquire now
  • Product Detail

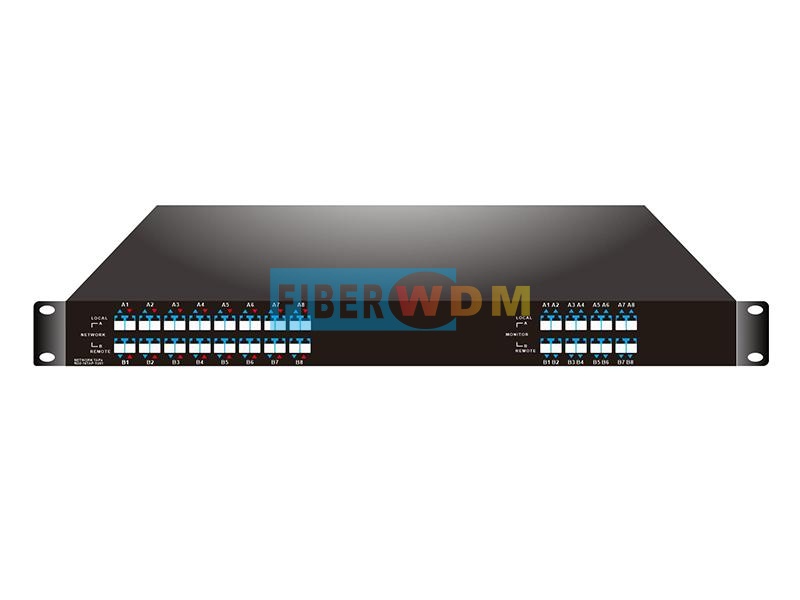

16 OTAPs Passive Network Optical Taps LC/UPC 1U Rack



FIBERWDM provide reliable continuous visibility 100% of network traffic to support performance and security with no network performance degradation or disruption.



FIBERWDM Taps are flexible and scalable, can supports speeds up to 100G, and is 100 percent passive. FIBERWDM Taps are available in multimode and single mode fiber varieties with split ratios ranging from 50/50 up to 80/20. The FIBERWDM Tap is available with either LC/SC/FC or MTP (MPO) connectors. Up to16 taps (for8 lines traffic copy) can be deployed in a single 1U 19inch rack space.

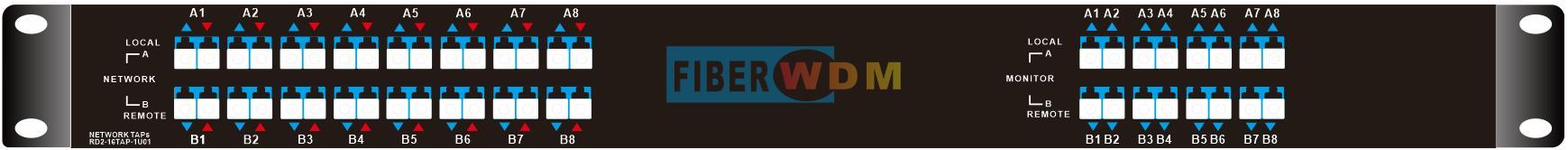

Product Panel


Network Optical Taps

16 OTAPs Passive Network Optical Taps

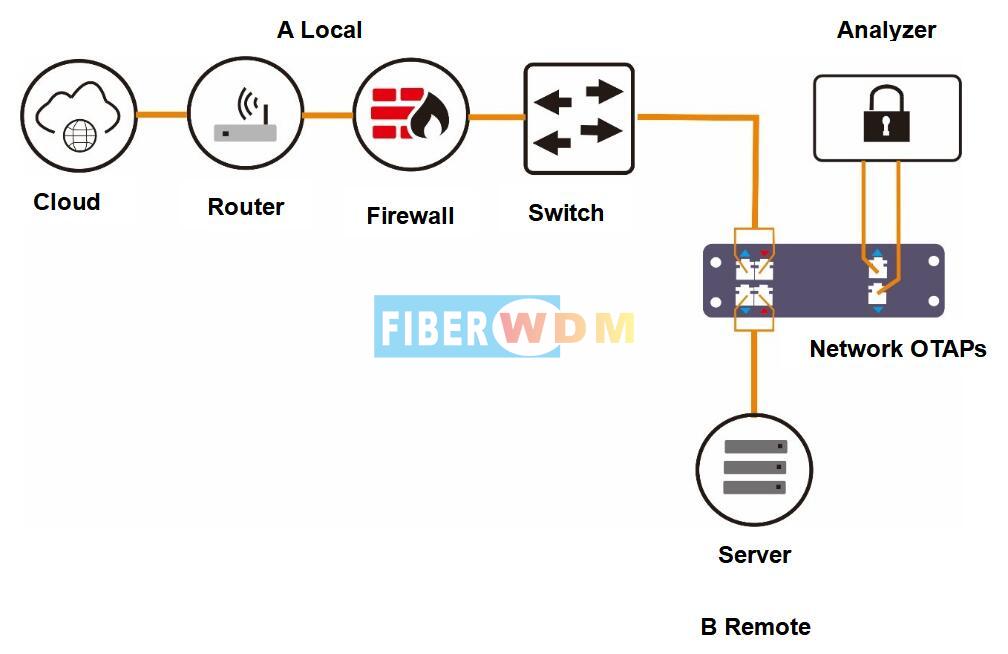

Application



The Network optical taps are deployed at any inline connection on the network, therefore no additional overhead or management burden is added to the network devices to copy traffic for the monitoring/security infrastructure. The FIBERWDM Tap is compatible with all major manufacturers’ monitoring devices, including protocol analyzers, probes, and intrusion detection systems, and is protocol agnostic.



Single-Mode Product Specification



Part No.

RD2-16TAP-1U01-A

RD2-16TAP-1U01-B

RD2-16TAP-1U01-C

RD2-16TAP-1U01-D

Split ratio

80/20

70/30

60/40

50/50

Taps

28 OTAPs14 lines network traffic copy

Operating Wavelength（nm）

1310/1550nm

Network Insertion Loss(dB)

≤1.0

≤1.7

≤2.5

≤3.4

Monitor Insertion Loss (dB)

≤7.7

≤5.7

≤4.5

≤3.4

Loss Uniformity (dB)

≤0.8

Return Loss (dB)

≥55

PDL (dB)

≤0.15

Directivity (dB)

≥55

FIBER Type

SMF-28e or customer specified

Connector

LC/UPC

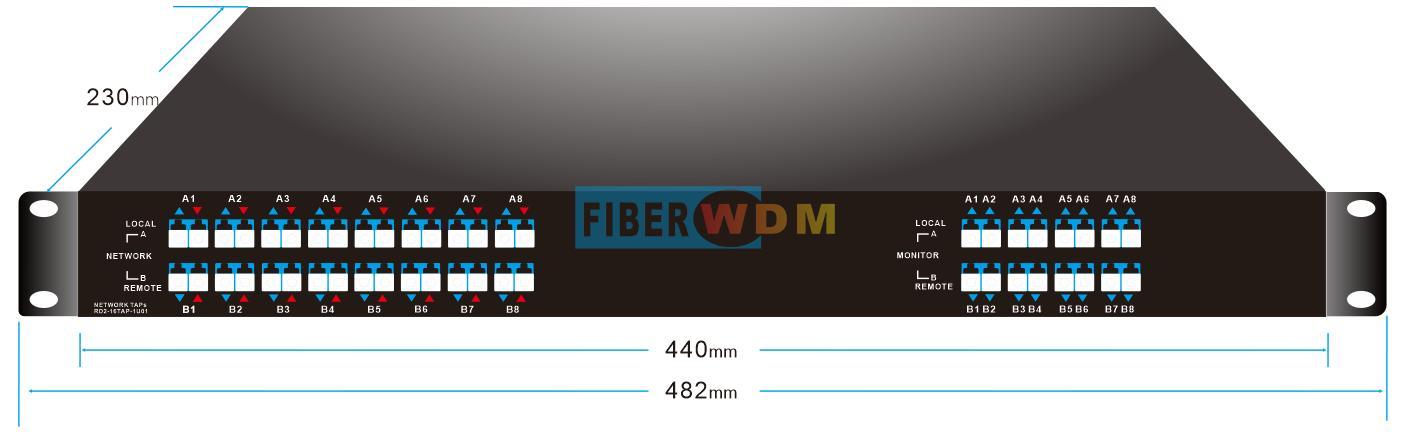

Dimension(mm)

440*160*44MM

Operating Temperature（℃）

-40 ~ +85



Multi-Mode Product Specification



Part No.

RD2-16TAP-1U01-A-M3

RD2-16TAP-1U01-B-M3

RD2-16TAP-1U01-C-M3

RD2-16TAP-1U01-D-M3

Split ratio

80/20

70/30

60/40

50/50

Taps

28 OTAPs,14 lines network traffic copy

Operating Wavelength（nm）

850nm

Network Insertion Loss(dB)

≤1.6

≤2.2

≤2.8

≤3.8

Monitor Insertion Loss (dB)

≤7.9

≤6.1

≤4.8

≤3.8

Loss Uniformity (dB)

≤0.8

Return Loss (dB)

≥55

PDL (dB)

≤0.15

Directivity (dB)

≥55

FIBER Type

OM3 or customer specified

Connector

LC/UPC

Dimension(mm)

440*160*44MM

Operating Temperature（℃）

-40 ~ +85

Notes: Room temperature test .



Package Information


 Network Optical Taps



Order information



       Part No.

Specification

RD-16TAPS-1U01-X

16 OTAPs (8 lines network traffic copy), SM 1310/1550nm LC/UPC 1U Rack

RD-16TAPS-1U01-X-M3

16 OTAPs (8 lines network traffic copy), MM OM3 850nm LC/UPC 1U Rack



OtherCustomized, please contact by email
