/8 OTAPs Passive Network Optical Taps MPO/MTP Plug-in Module

8 OTAPs Passive Network Optical Taps MPO/MTP
8 OTAPs Passive Network Optical Taps MPO/MTP 8 OTAPs Passive Network Optical Taps MPO/MTP 8 OTAPs Passive Network Optical Taps MPO/MTP 8 OTAPs Passive Network Optical Taps MPO/MTP

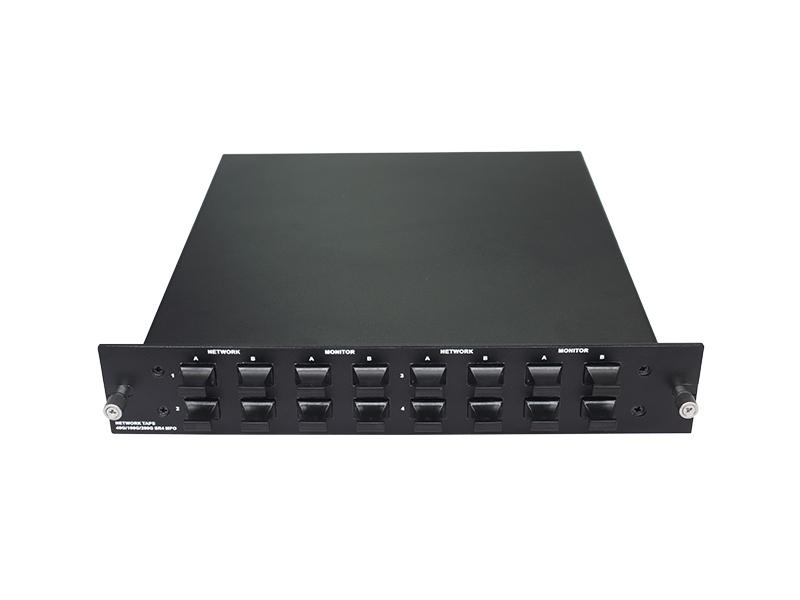

8 OTAPs Passive Network Optical Taps MPO/MTP Plug-in Module

FIBERWDM provide reliable continuous visibility 100% of network traffic to support performance and security with no network performance degradation or disruption. And FIBERWDM 8 OTAPs Passive Network Optical Taps MPO/MTP can supports 4 40G/100G/200G MPO/MPT lines traffic copy.

Inquire now Download
  • Product Detail

8 OTAPs Passive Network Optical Taps MPO/MTP Plug-in Module

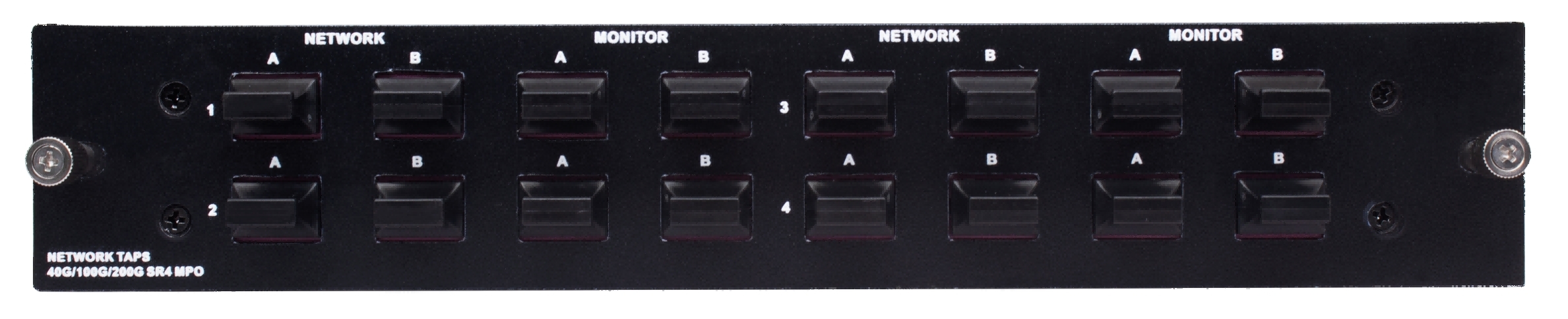

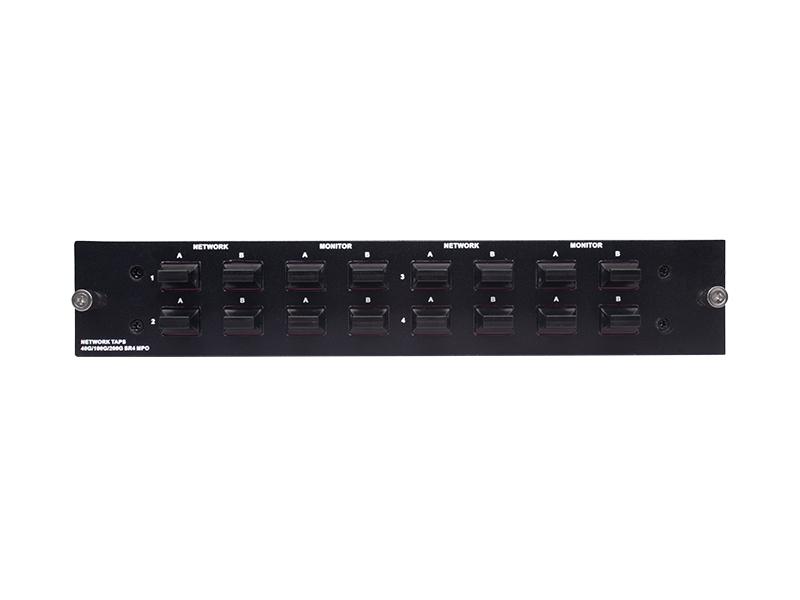

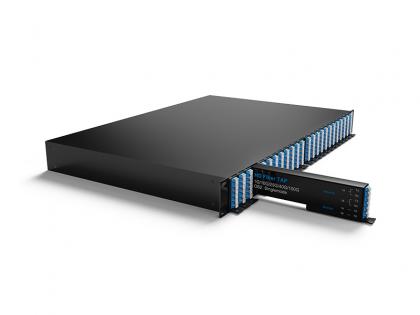

Product Panel

Passive Network Optical Taps

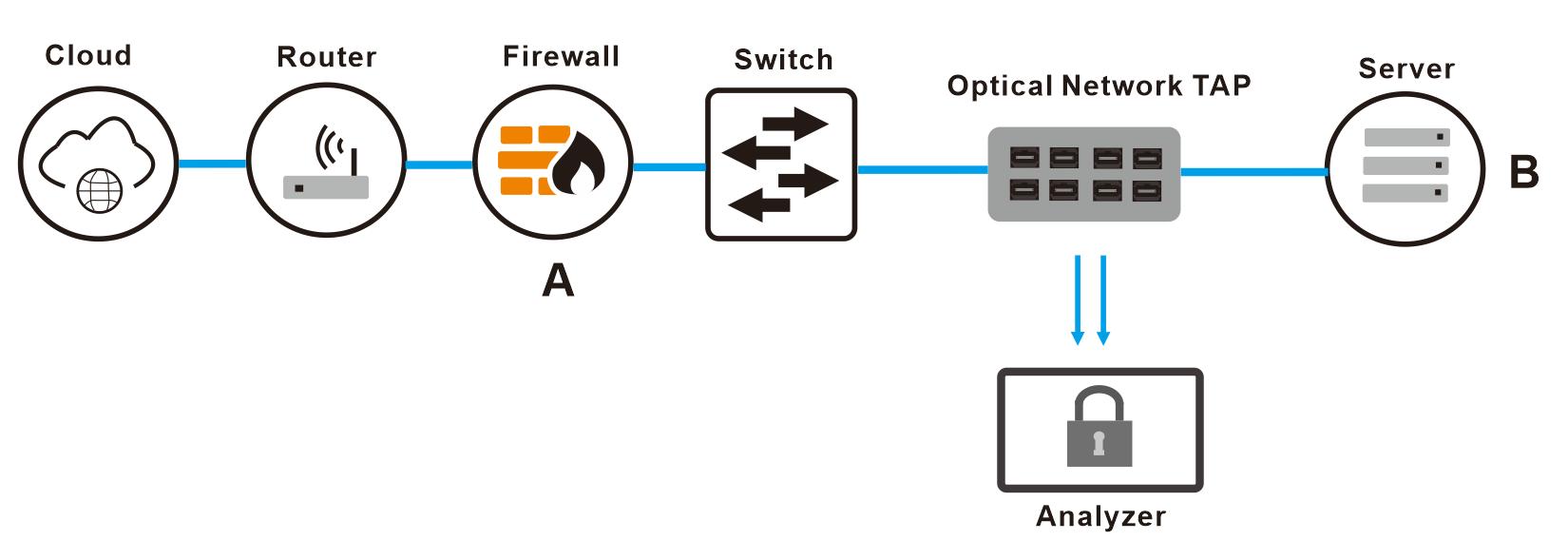

Application

Passive Network Optical Taps



The Network optical taps are deployed at any inline connection on the network, therefore no additional overhead or management burden is added to the network devices to copy traffic for the monitoring/security infrastructure. The FIBERWDM Tap is compatible with all major manufacturers’ monitoring devices, including protocol analyzers, probes, and intrusion detection systems, and is protocol agnostic.



Passive Network Optical Taps

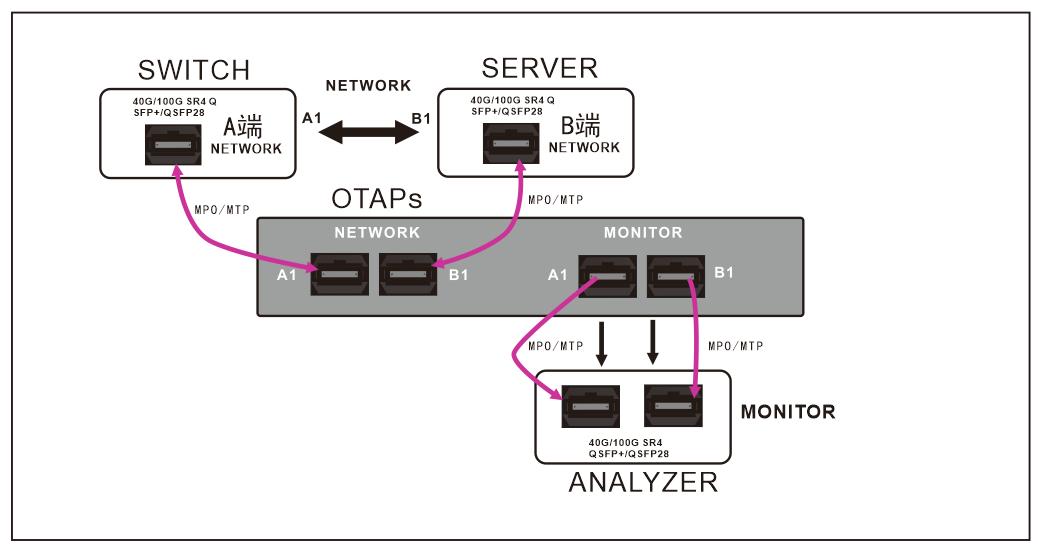

Schematic of  MPO Network Optical Taps



Product Specification



Part No. RD-8TAPS-LGX01-MPO-M4
Split ratio 50/50
Taps 8 OTAPs, 4 lines network traffic copy
Operating Wavelength（nm） 850nm
Network Insertion Loss(dB) ≤4.8
Monitor Insertion Loss (dB) ≤4.8
Loss Uniformity (dB) ≤0.8
Return Loss (dB) ≥55
PDL (dB) ≤0.15
Directivity (dB) ≥55
FIBER Type OM4 or customer specified
Connector MPO/MTP
Dimension(mm)

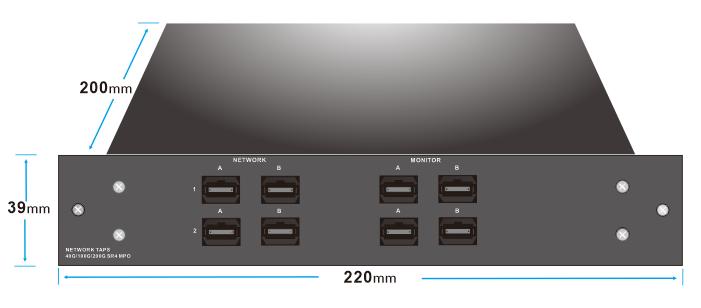

Plug-in Module Box: 220*200-39MM

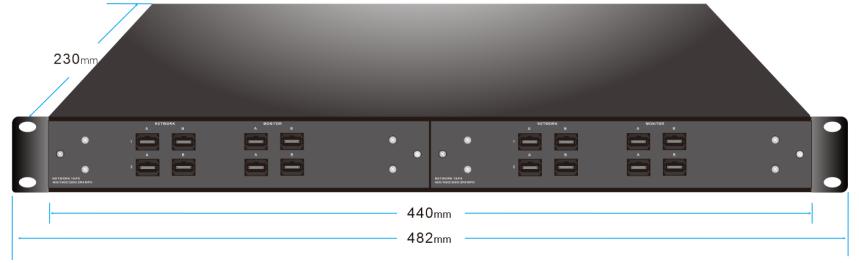

2Slot 1U Rack 440*230*44MM
Operating Temperature（℃） -40 ~ +85



Package Information

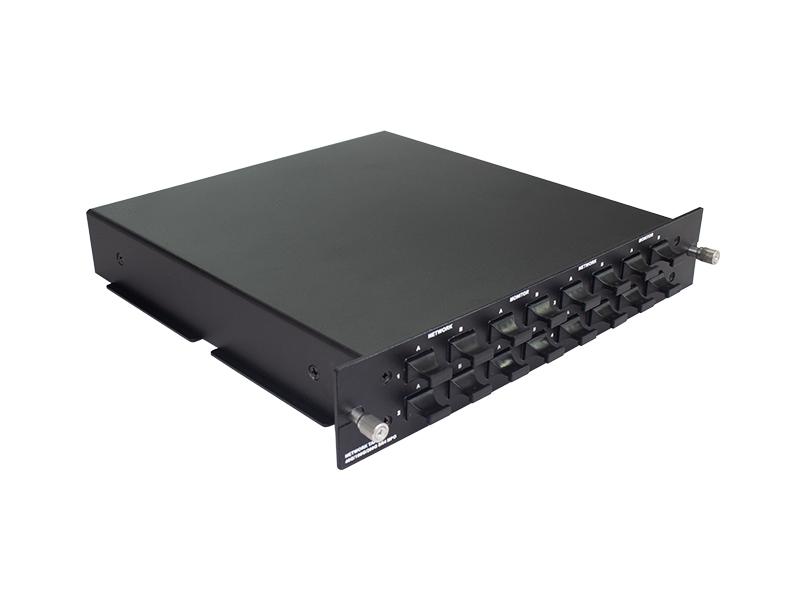

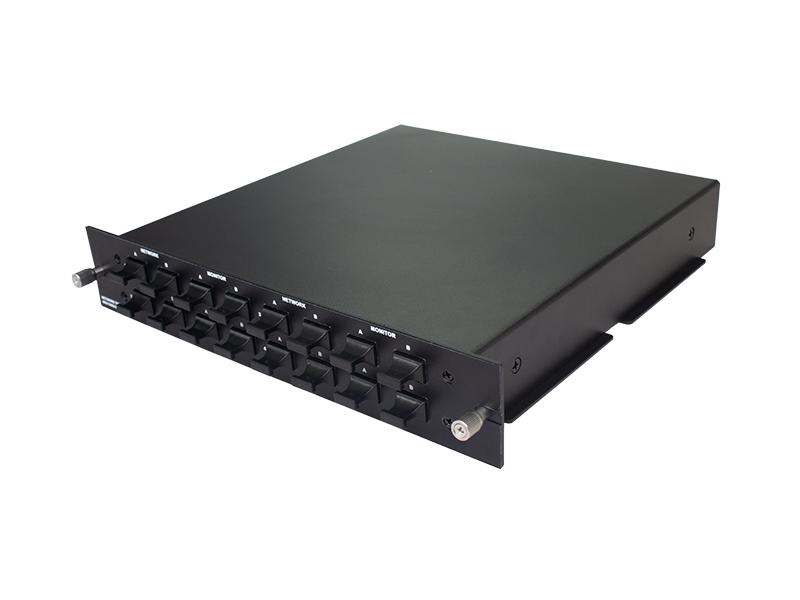

Otaps Plug-in Module

Otaps Plug-in Module



1U 2slot for Plug-in Module 19” Rack

1U 2slot for Plug-in Module 19” Rack



Order information



Part No. Specification
RD-8TAPS-LGX01-MPO-M4 8 OTAPs ( 4 lines network traffic copy), MM 50:50 OM3 850nm MPO/MTP Plug-in Module box
1U02-2LGX 19” inch 1U rack with 2 slot for Plug-in Module box, 440*230*44mm
