/24* OTAPs Passive Network Optical Taps LC/UPC 1U Rack

Passive Network Optical Taps
Passive Network Optical Taps Passive Network Optical Taps Passive Network Optical Taps Passive Network Optical Taps Passive Network Optical Taps Passive Network Optical Taps

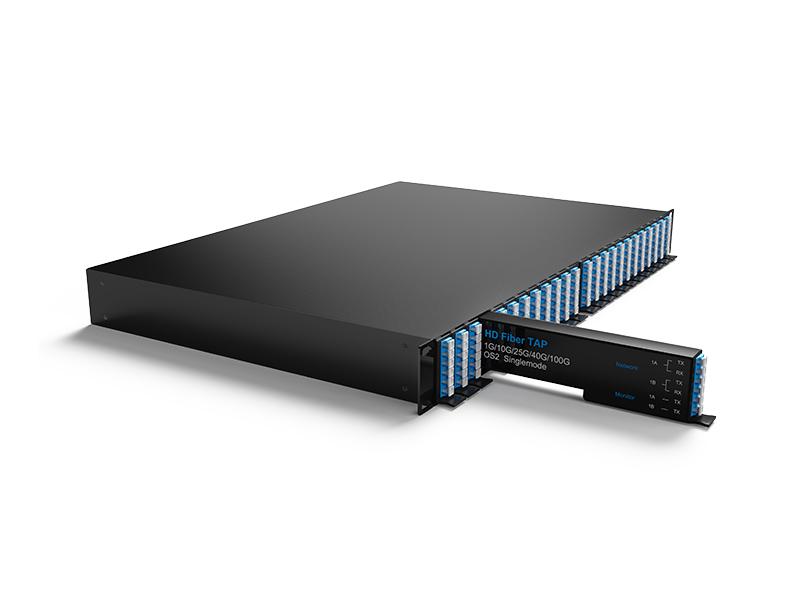

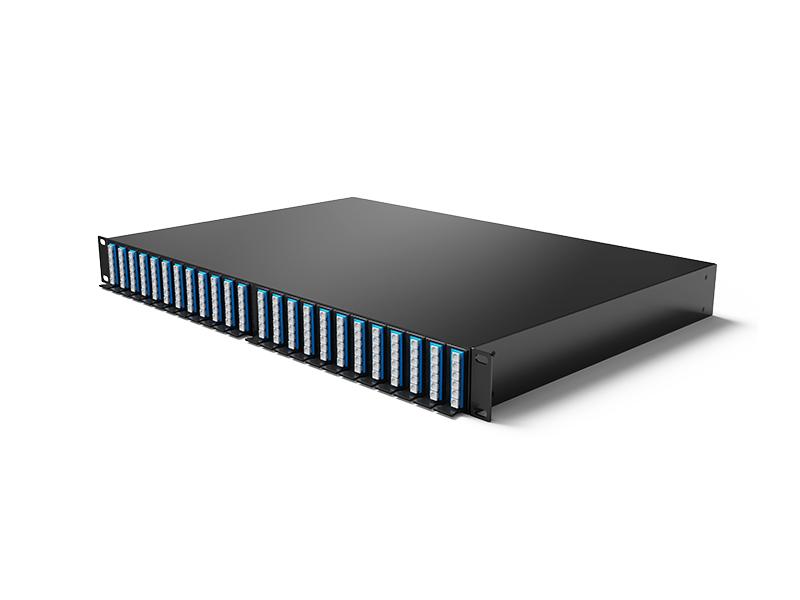

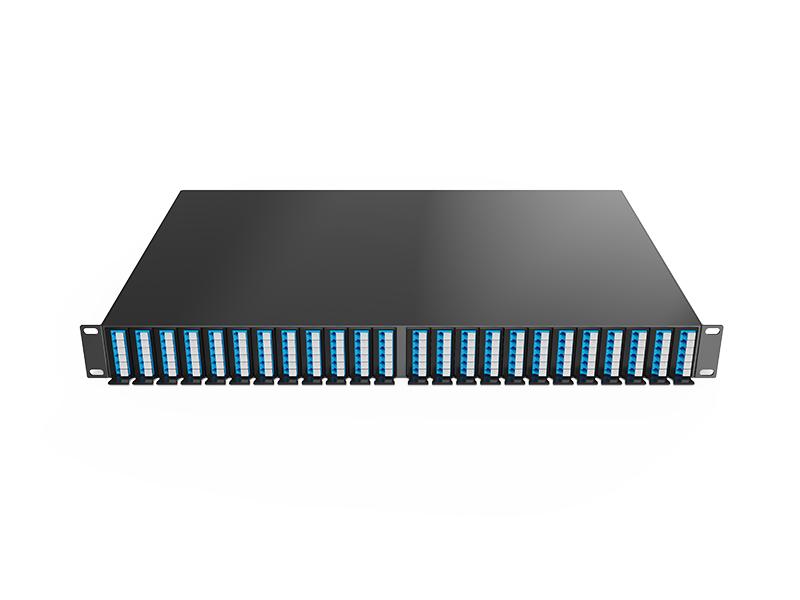

24* OTAPs Passive Network Optical Taps LC/UPC 1U Rack

  • Up to 24*OTAPs Optical Taps module， Support 24 lines traffic copy
  • Low insertion loss – minimize impact on data flows
  • Fully passive – monitoring infrastructure does not impact network availability
  • Does not modify traffic – tools see real copies of the packets from the network
  • Requires no power and does not have an IP address, providing safety from remote attacks
  • Cost effective – avoid costly expenses managing SPAN ports



Inquire now Download
  • Product Detail

24* OTAPs Passive Network Optical Taps LC/UPC 1U Rack



FIBER WDM Taps are flexible and scalable, can supports speeds up to 100G, and is 100 percent passive. FIBERWDM Taps are available in multimode and single mode fiber varieties with split ratios ranging from 50/50 up to 80/20. The FIBERWDM Tap is LC connectors. Up to 24 taps (for 24lines traffic copy) can be deployed in a single 1U 19inch rack space.

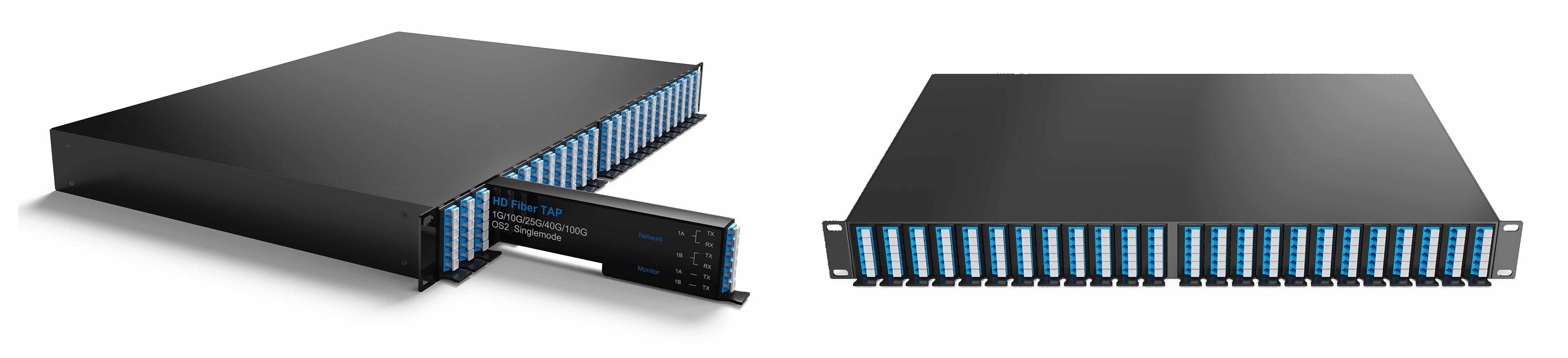

Product





24*OTAPs Passive Network Optical Taps

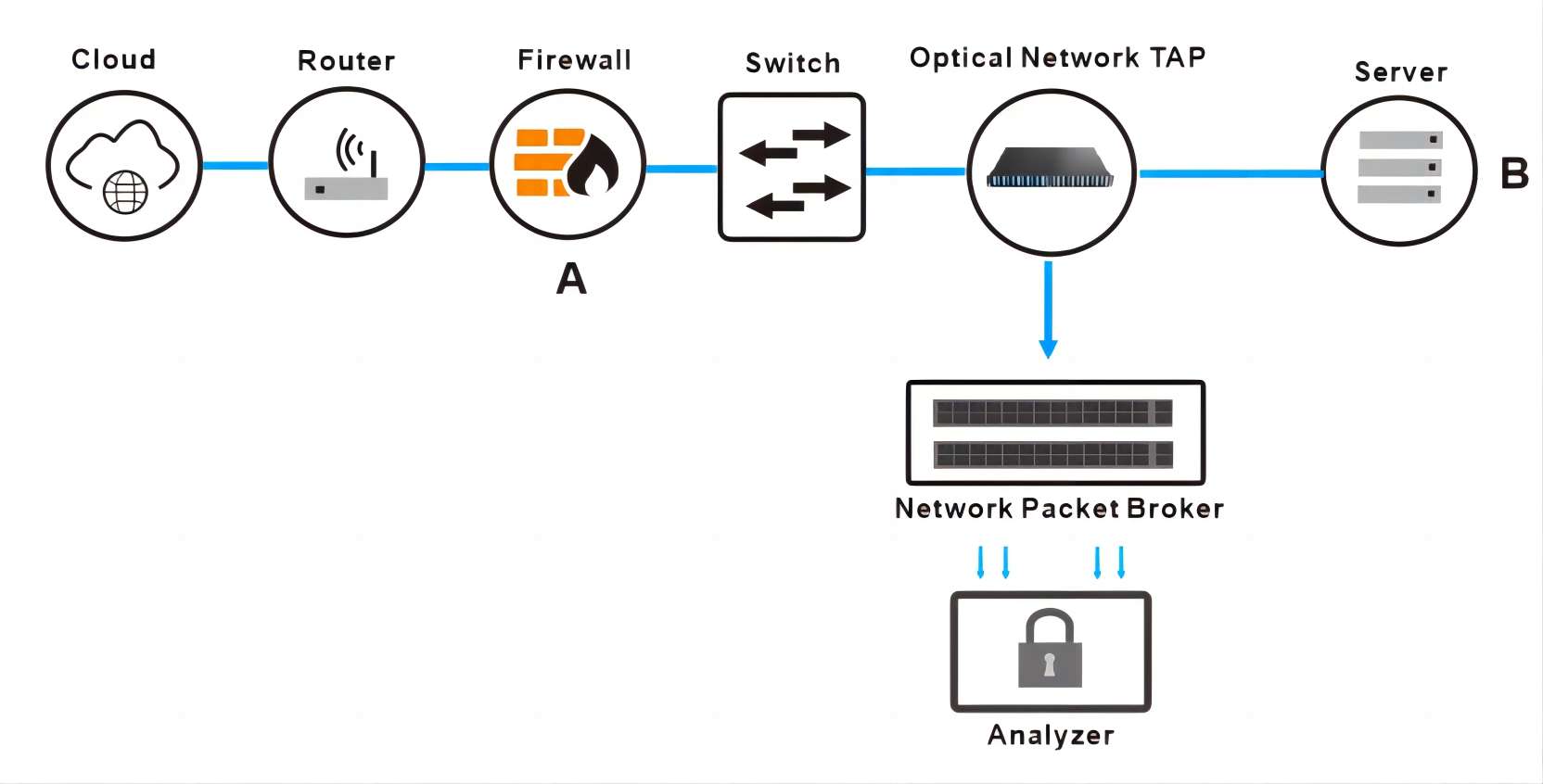

Application







The Network optical taps are deployed at any inline connection on the network, therefore no additional overhead or management burden is added to the network devices to copy traffic for the monitoring/security infrastructure. The FIBERWDM Tap is compatible with all major manufacturers’ monitoring devices, including protocol analyzers, probes, and intrusion detection systems, and is protocol agnostic.



Single-Mode Product Specification



Part No.

OTAP-82

OTAP-73

OTAP-64

OTAP-55

Split ratio

80/20

70/30

60/40

50/50

Taps

Up to 24 lines network traffic copy

Operating Wavelength（nm）

1310/1550nm

Network Insertion Loss(dB)

≤1.0

≤1.7

≤2.5

≤3.4

Monitor Insertion Loss (dB)

≤7.7

≤5.7

≤4.5

≤3.4

Loss Uniformity (dB)

≤0.8

Return Loss (dB)

≥55

PDL (dB)

≤0.15

Directivity (dB)

≥55

FIBER Type

SMF-28e or customer specified

Connector

LC/UPC

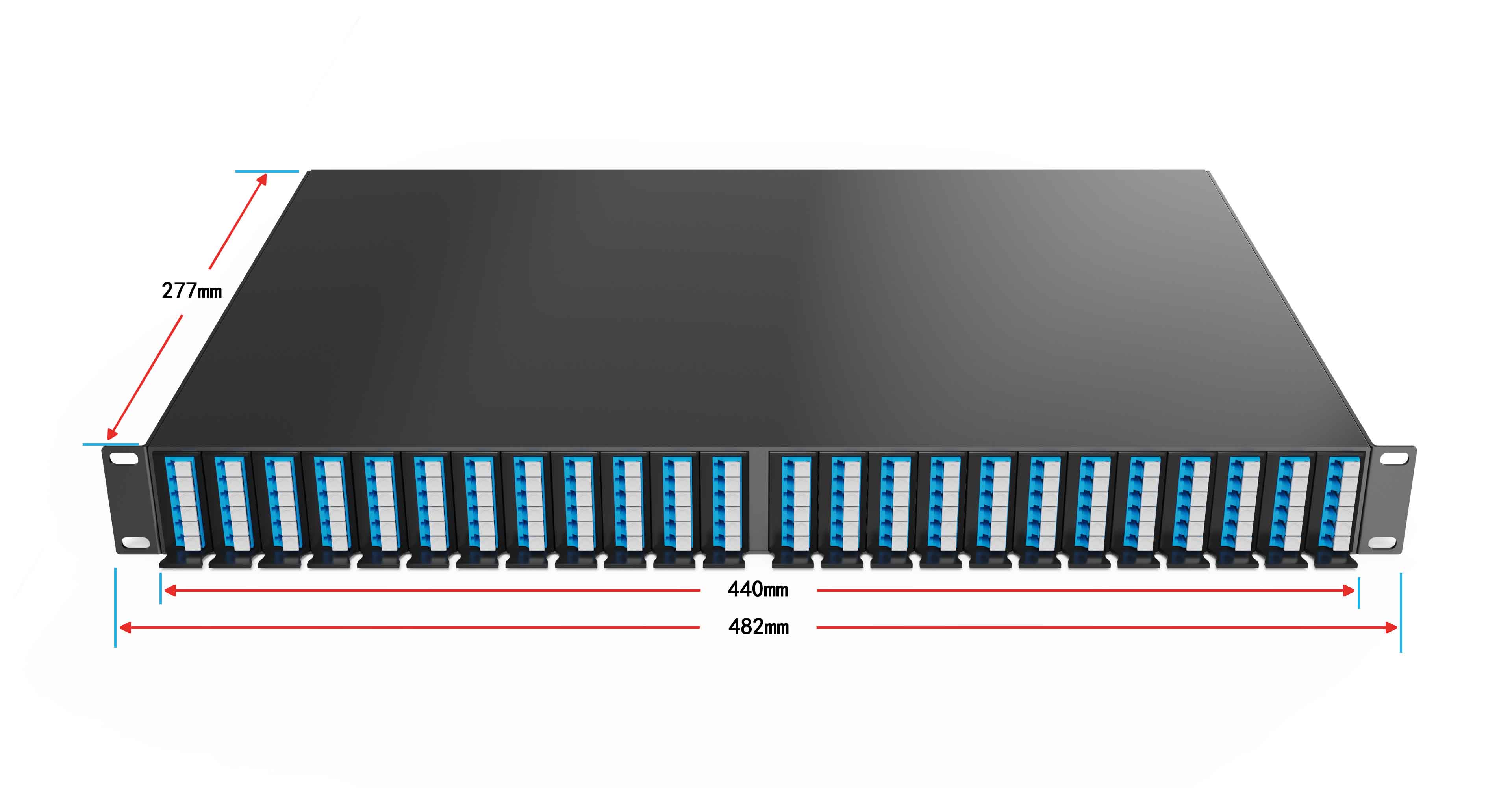

Dimension(mm)

440*277*44MM

Operating Temperature（℃）

-40 ~ +85





Multi-Mode Product Specification



Part No.

OTAP-55-M3/OTAP-55-M4

Split ratio

50/50

Taps

Up to 24 lines network traffic copy

Operating Wavelength（nm）

850nm

Network Insertion Loss(dB)

≤3.8

Monitor Insertion Loss (dB)

≤3.8

Loss Uniformity (dB)

≤0.8

Return Loss (dB)

≥55

PDL (dB)

≤0.15

Directivity (dB)

≥55

FIBER Type

OM3 or OM4 customer specified

Connector

LC/UPC

Dimension(mm)

440*277*44MM

Operating Temperature（℃）

-40 ~ +85



Notes: Room temperature test.

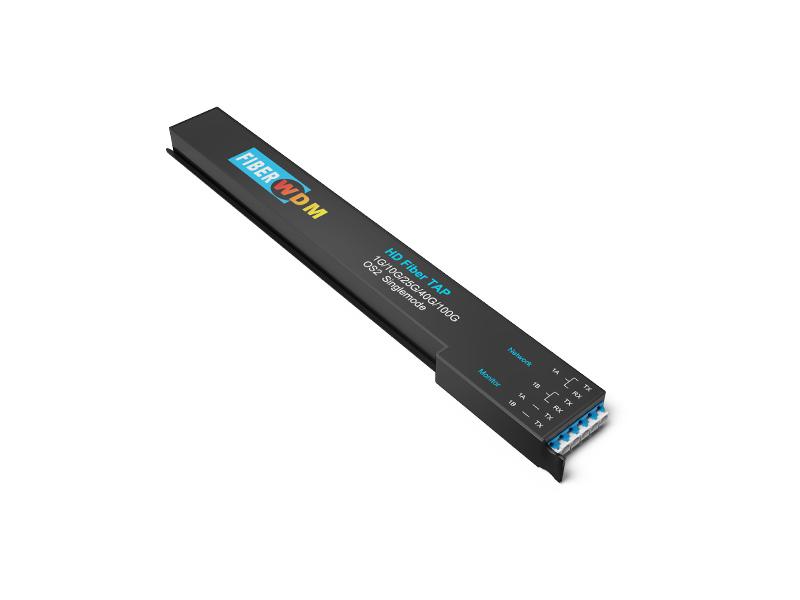

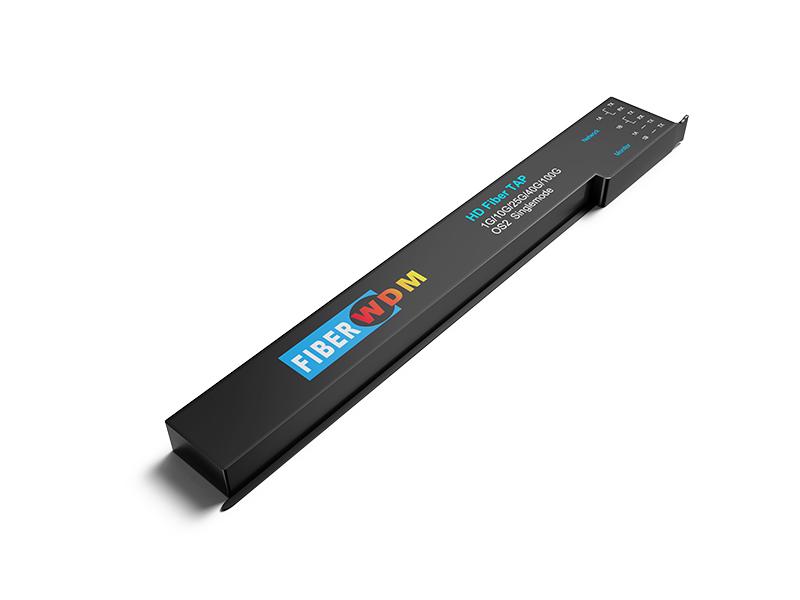

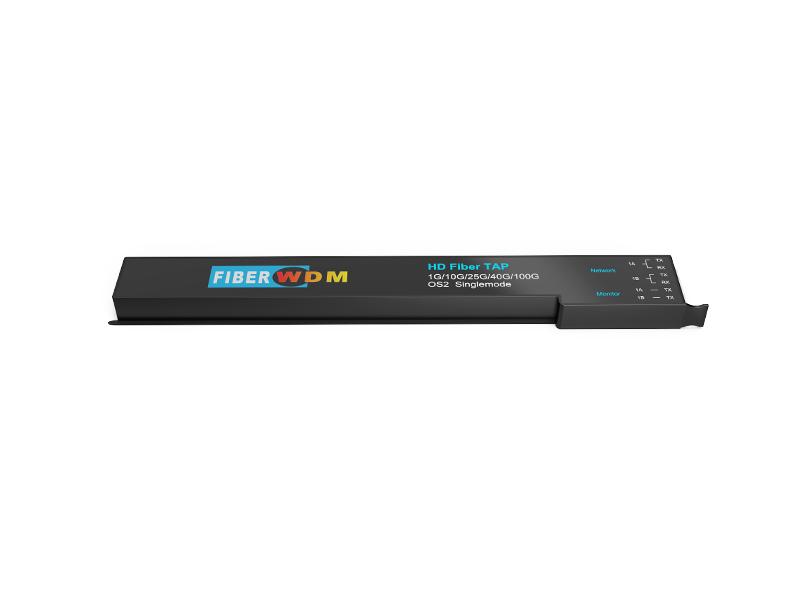

Package Information

Order information



       Part No.

Specification

OTAP-82

1*OTAPs ( 1 lines network traffic copy), 80:20 SM 1310/1550nm LC/UPC OTAP Module

OTAP-73

1*OTAPs ( 1 lines network traffic copy), 70:30 SM 1310/1550nm LC/UPC OTAP Module

OTAP-64

1*OTAPs ( 1 lines network traffic copy), 60:40 SM 1310/1550nm LC/UPC OTAP Module

OTAP-55

1*OTAPs ( 1 lines network traffic copy), 50:50 SM 1310/1550nm LC/UPC OTAP Module

OTAP-55-M3

1*OTAPs ( 1 lines network traffic copy), 50:50 MM OM3 850nm LC/UPC OTAP Module

OTAP-55-M4

1*OTAPs ( 1 lines network traffic copy), 50:50 MM OM4 850nm LC/UPC OTAP Module

1U-24TAPS

24 slots for holding up 24 channel OTAPs Module 440*277*44MM
