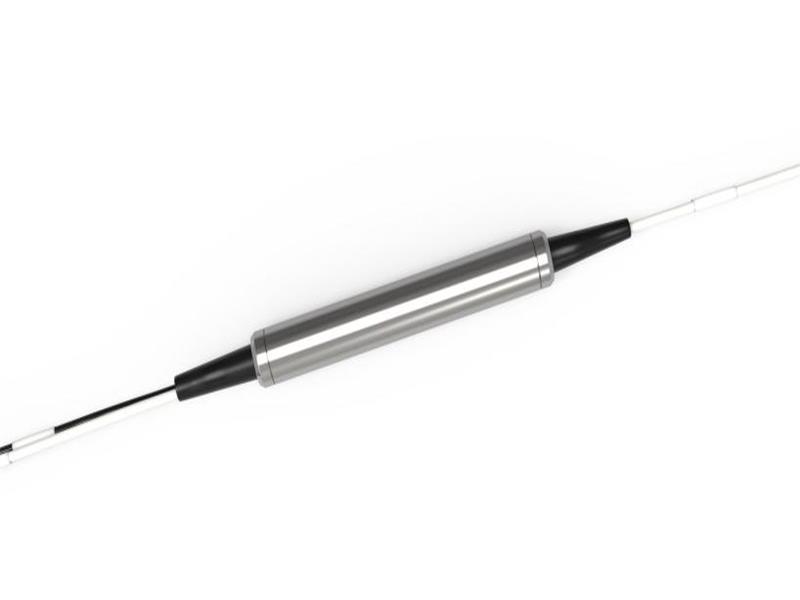

3 Port MM OM3 T31R85 WDM Component
FIBERWDM’s WDM Components are the result of years of telecommunication experiences in thin-film filter technology. They demonstrate low insertion loss and high isolation, and reliable performance in varieties system applications.
Features
Applications
Advantages
Specifications
| Parameter | Specification | Unit |
| Channels | 1 | nm |
| Transmission wavelength Range | 1310±30 | nm |
| Reflection wavelength Range | 850±30 | nm |
| Insertion Loss(pass) | ≤1.00 | dB |
| Insertion Loss(ref) | ≤1.00 | dB |
| Isolation(pass) | ≥25.0 | dB |
| Isolation(ref) | ≥13.0 | dB |
| PDL | ≤0.20 | dB |
| Return Loss | ≥30.0 | dB |
| Directivity | ≥30.0 | dB |
| PMD | ≤0.10 | ps |
| Fiber Type | 900μm loose tube, 50/125 fiber or others | / |
| Fiber Length | 1.0 or others | m |
| Dimension | φ5.5*35 | mm |
| Connector Type | LC/UPC | / |
| Operating Temperature Range | -20~70 | ℃ |
| Storage Temperature Range | -40~85 | ℃ |
Ordering information
| RD- | -Package | -Connector Type | U/A | -Channel Plan | -Fiber Type | -Fiber Length |
| S:Steel | 0:No connector | U:UPC | T31R85 | 25:250μm Fiber | 005:0.5+/-0.1m | |
| G:Glass | 1:LC | A:APC | 90:900μm Fiber | 01:1.0+/-0.1m | ||
| 2:SC | others | |||||
| 3:FC | ||||||
| 4:Others |
Example: RD-S1U-T31R85-90005：3 port MM OM3 T31R85 WDM Component LC/UPC 900μm 0.5M Fiber Steel
