             3CH WDM GPON XGS-PON And OTDR Plug-in LGX Box 215*150*20MM                               FW-2G-LGX02-GXO



3CH WDM GPON XGS-PON And OTDR Plug-in LGX Box

OTDR (Optical Time Domain Reflectometer)



  • Features: OTDR is a tool used for fiber optic network fault diagnosis and maintenance, capable of detecting breaks, losses, and reflection points in the fiber.
  • Application Scenarios: It is widely used in the installation, maintenance, and troubleshooting of fiber optic networks.



Advantages



  • Bandwidth Increase: By adding wavelength channels, the transmission bandwidth of the fiber is significantly increased.
  • Cost-Effective: It increases network capacity without adding extra fibers, reducing deployment costs.
  • Flexibility: It supports the coexistence of multiple PON technologies, such as GPON, XGS-PON, OTDR



Application



3CH WDM GPON XGS-PON And OTDR Plug-in LGX Box

Product Panel

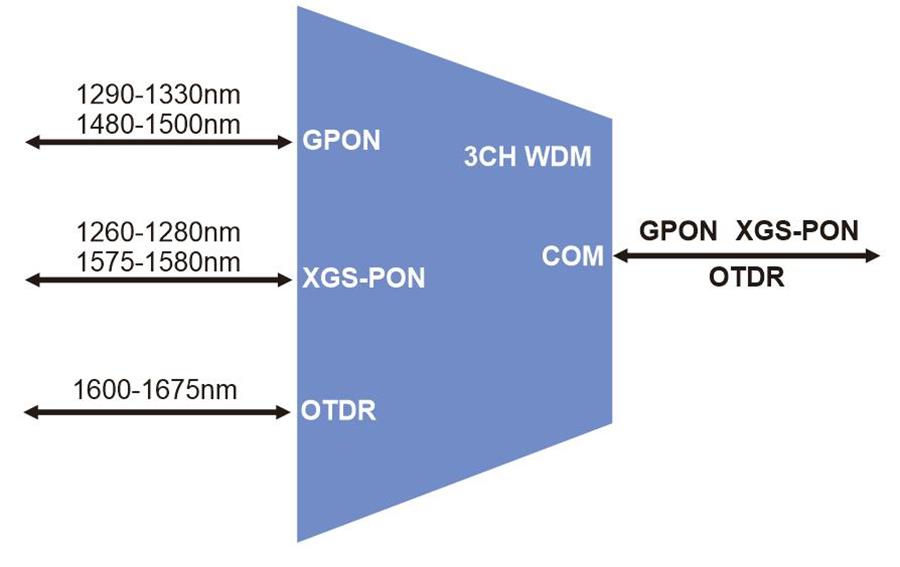

3CH WDM GPON XGS-PON And OTDR

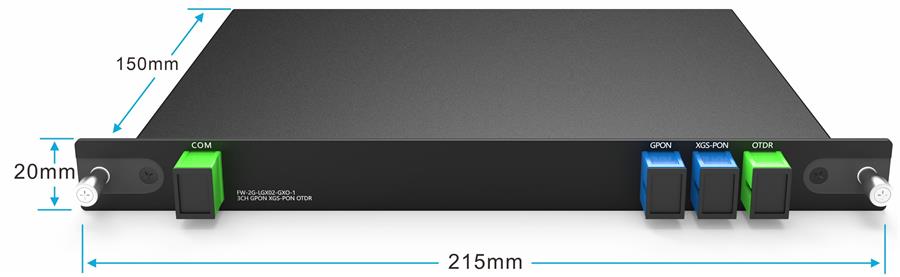

3CH WDM GPON XGS-PON And OTDR, PON SC/UPC , COM AND OTDR SC/APC Plug-in LGX Box 215*150*20MM



3X3CH WDM GPON XGS-PON And OTDR

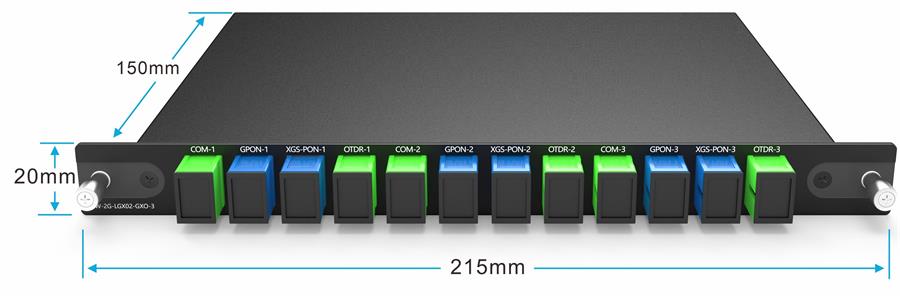

3X3CH WDM GPON XGS-PON And OTDR, PON SC/UPC , COM AND OTDR SC/APC Plug-in LGX Box 215*150*20MM



6X3CH WDM GPON XGS-PON And OTDR

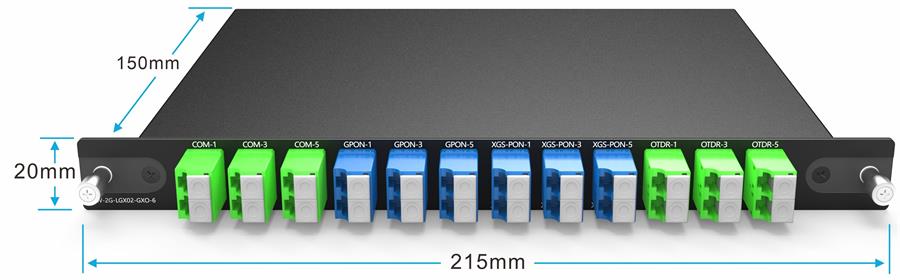

6X3CH WDM GPON XGS-PON And OTDR, PON LC/UPC , COM AND OTDR LC/APC Plug-in LGX Box 215*150*20MM



Specifications



Parameter

Specification

Unit

Bandpass

GPON

1290-1330/1480-1550

nm

XGS-PON

1260-1280/1575-1580

nm

OTDR

1600-1675

nm

Insertion Loss

COM - GPON

<0.9

dB

COM - XGS-PON

<1.1

dB

COM - OTDR

<1.3

dB

Wavelength Isolations

COM - GPON

>30

dB

COM - XGS-PON

>30

dB

COM - OTDR

>30

dB

Unifomit

 <0.8

dB

Return Loss

>55

dB

Directivity

>55

dB

PDL (Polarizarion Dependant Loss)

<0.3

dB

(Polarization Mode Dispersion)

<0.2

 ps

Optical Power Handing

<300

mW

Operating Temperature

-40 to +85

℃

Operating Relative Humidity

5 to 90

% RH

Storage Temperature

-40 to +85

℃

Operating Relative Humidity

5 to 90

% RH

Net Weight

LGX Box:  0.5KG

2slot 1U Rack: 2.5KG

KG

Dimensions

LGX Box: 215*150*20mm

1U Rack : 440*160*44mm

 mm

Insertion Loss includes WDL, TDL and PDL WITH two sets of mated connectors at both ends.



Package Information

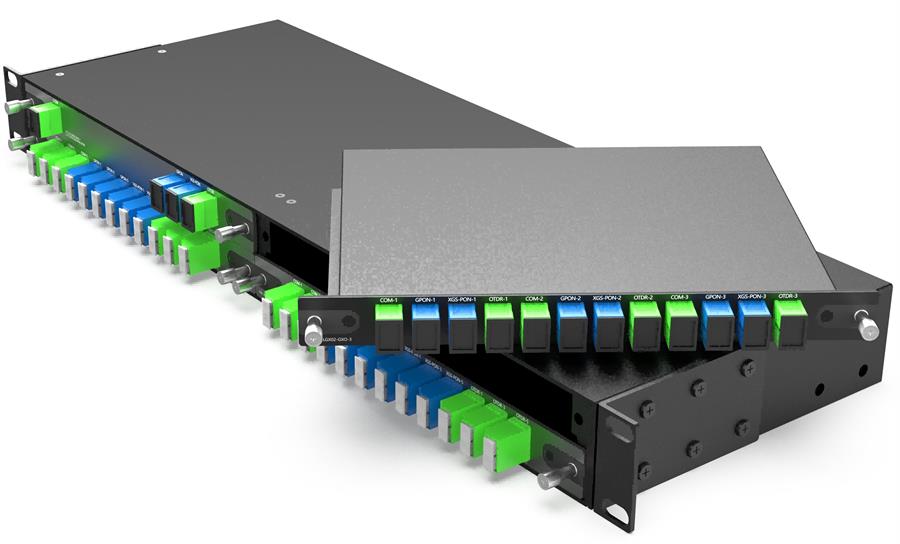

LGX BOX Plug in 4-Slot 1U Rack



3CH WDM



3CH WDM GPON XGS-PON

3x3CH WDM



3CH WDM GPON XGS-PON

6x3CH WDM



3CH WDM GPON XGS-PON

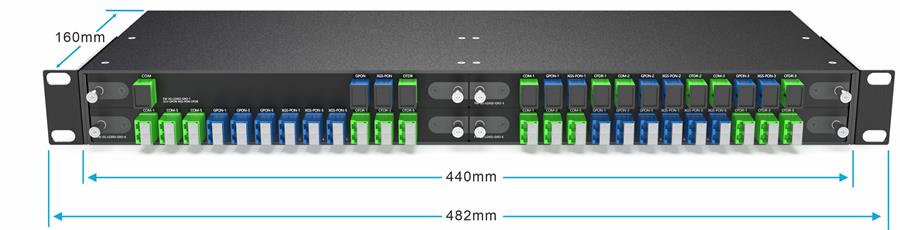

4-Slot 1U Rack for LGX BOX



3CH WDM GPON XGS-PON And OTDR



Order Information



Product No.

Product description

FW-2G-LGX02-GXO-1

3CH WDM GPON XGS-PON AND OTDR, PON SC/UPC, COM AND OTDR SC/APC Plug-in LGX Box 215*150*20MM

FW-2G-LGX02-GXO-3

3x3CH WDM GPON XGS-PON AND OTDR, PON SC/UPC, COM AND OTDR SC/APC Plug-in LGX Box 215*150*20MM

FW-2G-LGX01-GXO-6

6x3CH WDM GPON XGS-PON AND OTDR, PON LC/UPC, COM AND OTDR LC/APC Plug-in LGX Box 215*150*20MM

1U02-4LGX

19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm



Note: We Support Customized Design, please contact us by email.
