Dual fiber 96CH C14-H61 50GHz DWDM MUX DEMUX and Monitor Port, LC/UPC, 2U Rack
The 50GHz DWDM 96CH MUX DEMUX is designed by FIBERWDM, wavelength from C14 to H61(1566.31nm~1528.38nnm), in accordance with the ITU-T G.694.1 50GHZ grid, it maximizes the capacity of the C-band range.
The 96ch DWDM is totally passive DWDM device and support low insertion loss (wavelength ports＜7.0dB). And it conjunct with The DWDM amplifiers and DCM device, the 96ch DWDM transfer system can support a long distance transmission.

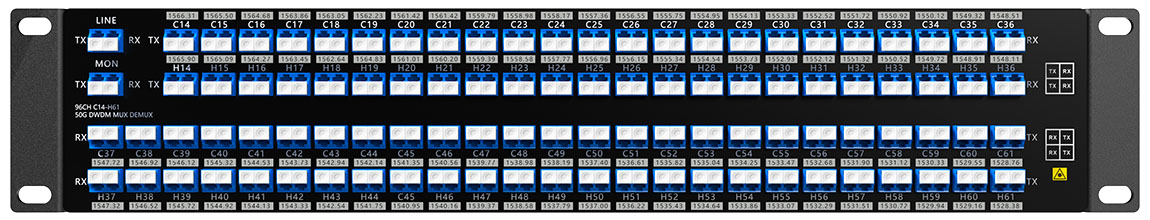

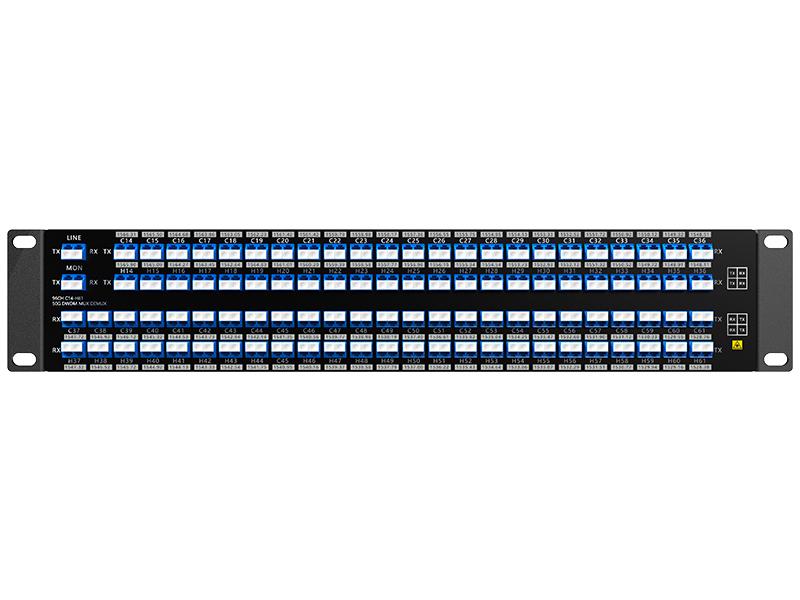

Product Panel
Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.

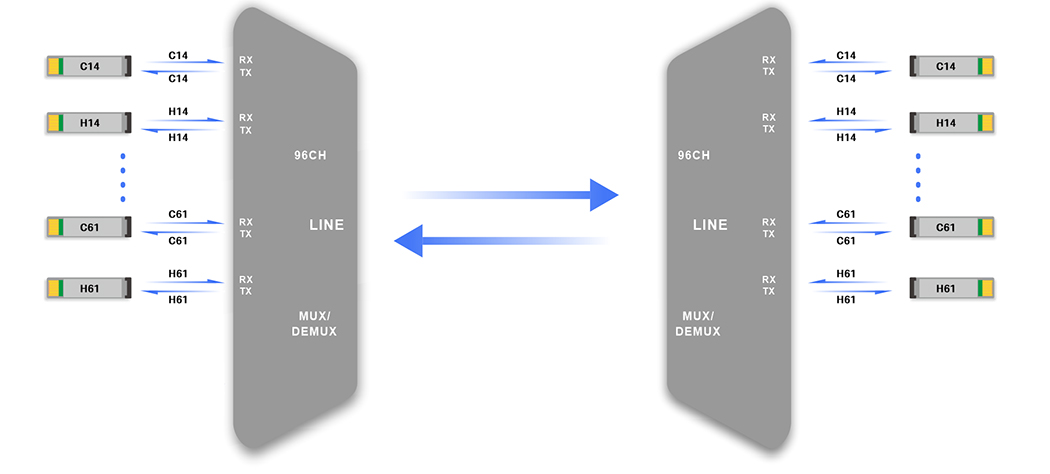

Line Link
96 Channels DWDM MUX DEMUX, supports 96 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
96channels C14/H14-C61/H61 |
Channel Spacing |
50GHz (0.4nm) |
|
Center Wavelength Accuracy |
±0.05nm |
Technology |
AAWG (FAT-TOP) |
|
Insertion Loss |
≤7.0B |
Link Loss |
≤ 14dB |
|
Center Wavelength Accuracy |
±0.05nm |
Insertion Loss @ 1% Mon |
≤ 26dB |
|
Total Crosstalk |
≥25dB |
Ripple in Passband |
|
|
-1dB passband |
≥0.18dB |
-3dB passband |
≥0.28dB |
|
Return Loss |
≥ 40dB |
Directivity |
≥ 40dB |
|
Polarization Mode Dispersion |
≤ 0.5ps |
Polarization Dependent Loss |
≤ 0.5dB |
|
Channel Isolation |
Adjacent
≥ 25dB
Non-adjacent ≥ 30dB
|
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
|
Net Weight |
4.5KG |

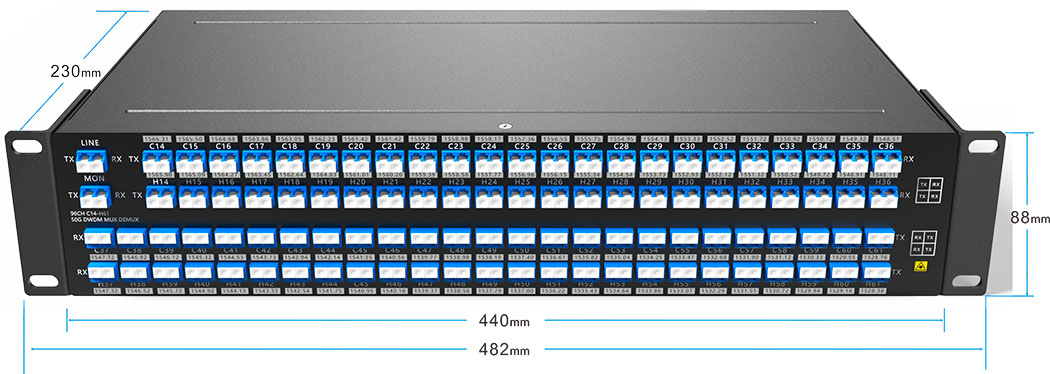

Dimensions (HxWxD) |
88*440*230mm |
Package Information
96CH DWDM 1U RACK
Order Information
|
Product No. |
Product description |
|
DMD96-2U01-C14H61 |
50Ghz DWDM MUX DEMUX 96CH (C14/H14-C61/H61),With Monitor Port, Dual fiber, LC/UPC , 2U Rack |
Note: We Support Customized Design, please contact us by email.
