High-Speed Detectors HSPD4018 & HSPD4040

To meet domestic customers' demand for fully localized high-speed photodetector (PD) products, Fiberwdm has developed two high-speed PD products with bandwidths exceeding 18GHz and 40GHz after nearly 2 years of R&D and optimization. The 18GHz PD has a rise time of less than 20ps, and the 40GHz PD has a rise time of less than 8.5ps. Their responsivity is no lower than that of similar imported products from Finisar, Thorlabs, etc., and the tail oscillation is also well controlled.

This series of high-speed detectors does not include a Transimpedance Amplifier (TIA) and features extremely low noise. It can be used for testing high-speed communication systems and femtosecond laser systems, and is a cost-effective fully localized product.

The linear power supply independently developed by Fiberwdm can fully meet the requirements of high-speed detectors in scientific research applications.

Inquire now Download
  • Product Detail

High-Speed Detectors HSPD4018 & HSPD4040



User Instructions

1.1 Appearance and Interface Description



Module appearance is shown below:



                                                High-Speed Detectors    High-Speed Detectors

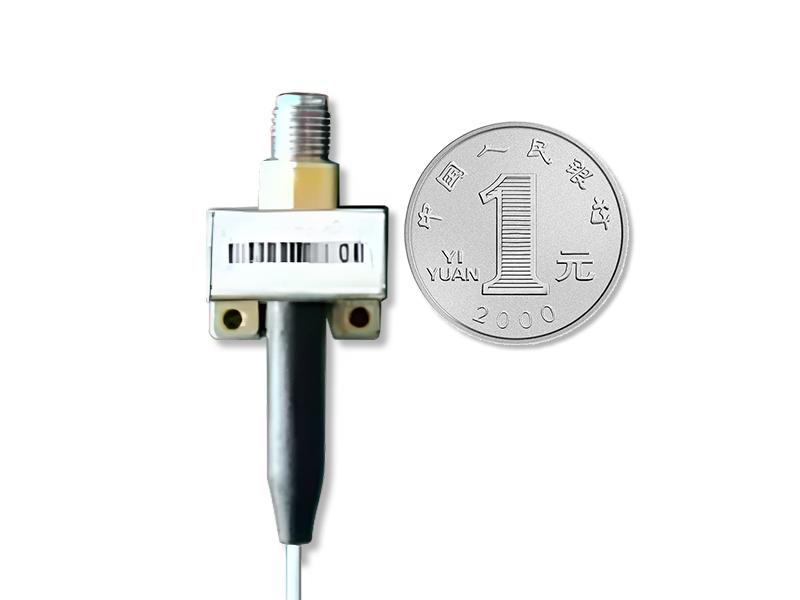

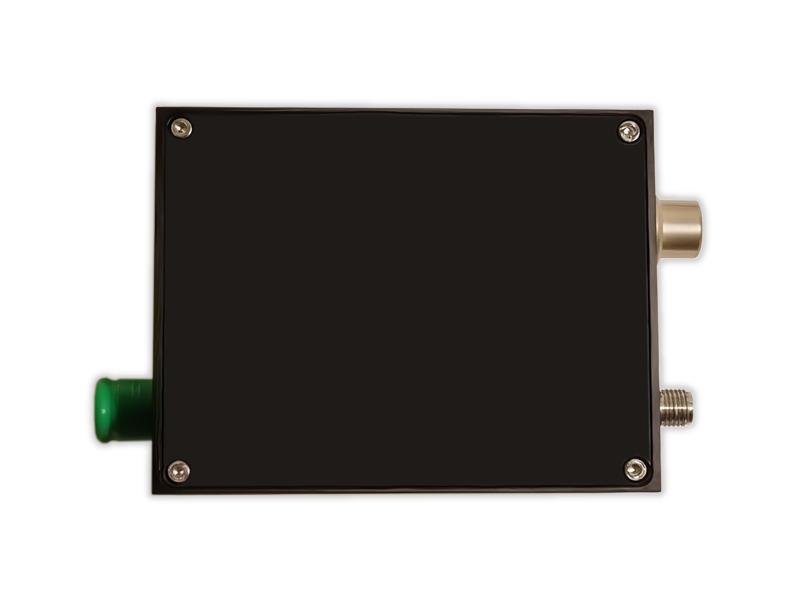

Figure 2-1 Detector Module Appearance (Left), High-Speed Bare PD (Right)



1.2 Electrical Specifications



1. Output Interface: SMA (female) or 2.92mm

2. Spectral Response Range: 1000nm–1700nm

3. Detector Responsivity: >0.7A/W @1550nm

4. Caution: Do not exceed the saturation optical power for optical input.



2 Performance Parameters

2.1 Test Parameters for High-Speed Detectors (HSPD4018, HSPD4040)



Model

HSPD4018

HSPD4040

Wavelength Range

1000nm - 1700nm

1000nm - 1700nm

3dB Cut-off Bandwidth

18GHz

＞40GHz

Conversion Gain

35V/W

35V/W

Saturation Optical Power

10mW

10mW

Rise Time (10%–90%)

＜20ps

＜8.5ps

Typical Max. Responsivity

＞0.7A/W @1550nm

＞0.7A/W @1550nm

Output Reflection Coefficient (S22)

＜-2dB

＜-2dB

Amplitude Flatness

＜±2dB

＜±2dB

Maxim Output

0.35V

0.5V

Max Incident Power

30mW

30mW

Detector Material/Type

InGaAs/PIN

InGaAs/PIN

Operating Temperature

-40℃~85℃

-40℃~85℃

Optical Input

FC/PC or FC/APC

FC/PC or FC/APC

Electrical Output

SMA or 2.92mm

SMA or 2.92mm

Power Supply

+12V/100mA

+12V/100mA



Figure 3-1 Summary of Electrical Performance



High-Speed Detectors

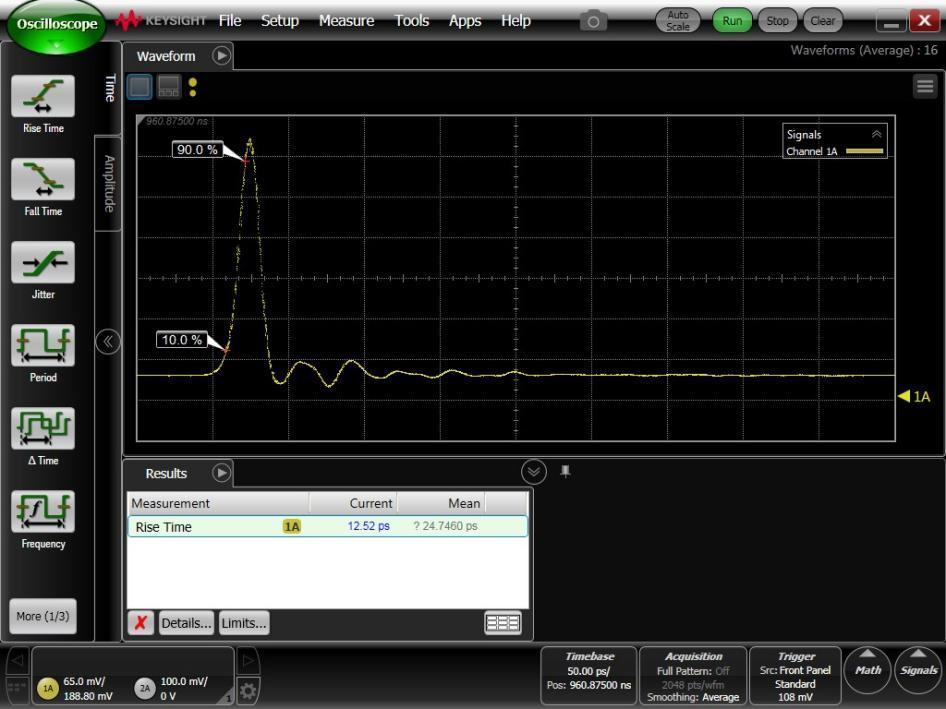

Figure 3-2 HSPD4018 Pulse Response Curve



High-Speed Detectors

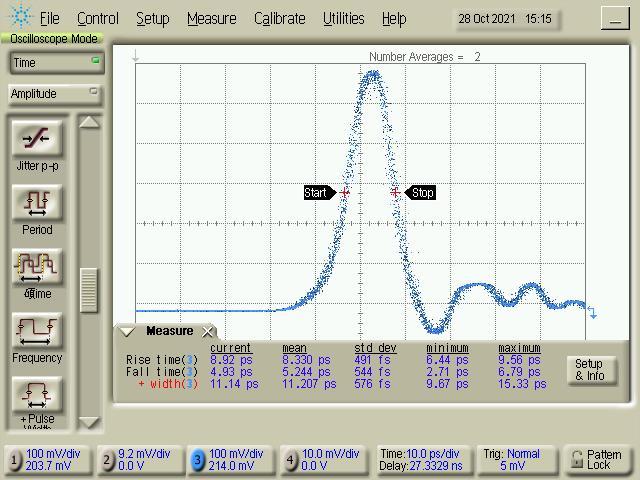

Figure 3-3 Pulse Response Curve



Mechanical dimension diagram of the high-speed detector

High-Speed Detectors

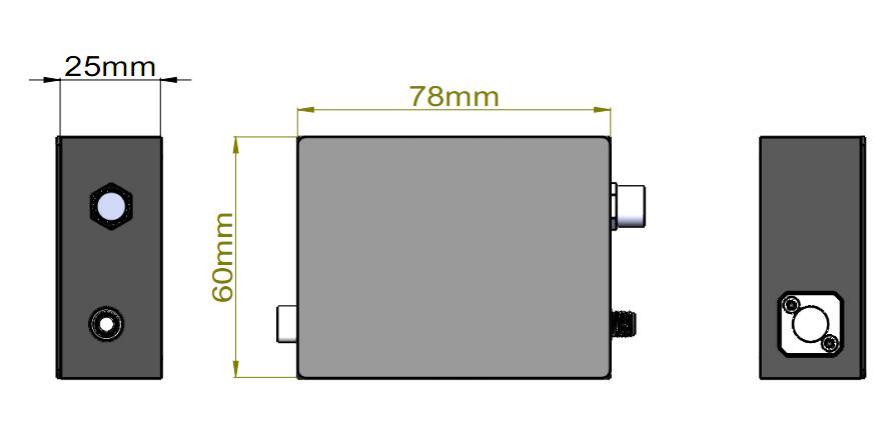

Figure 4-1 Mechanical dimensions diagram of the high-speed detector module



High-Speed Detectors

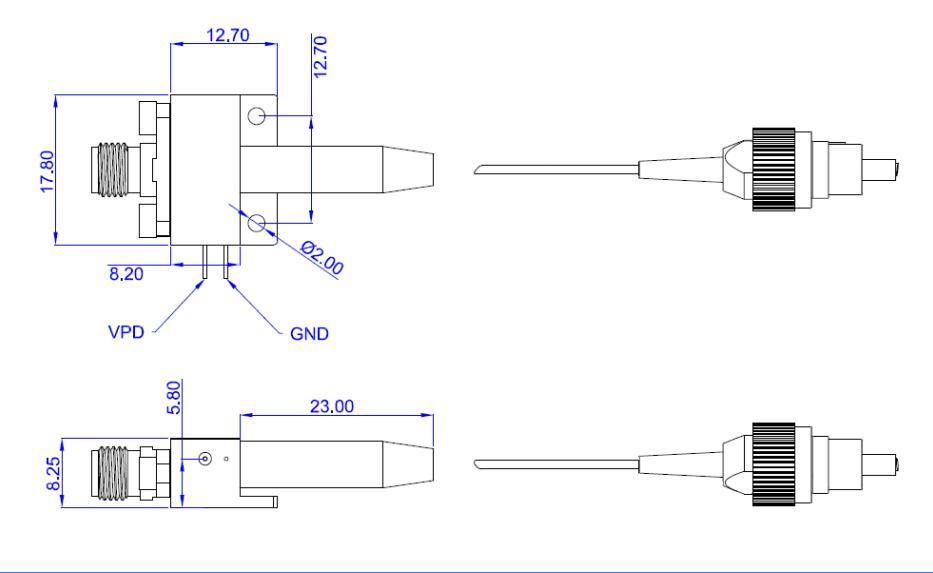

Figure 4-2 Mechanical dimensions of the high-speed PD
