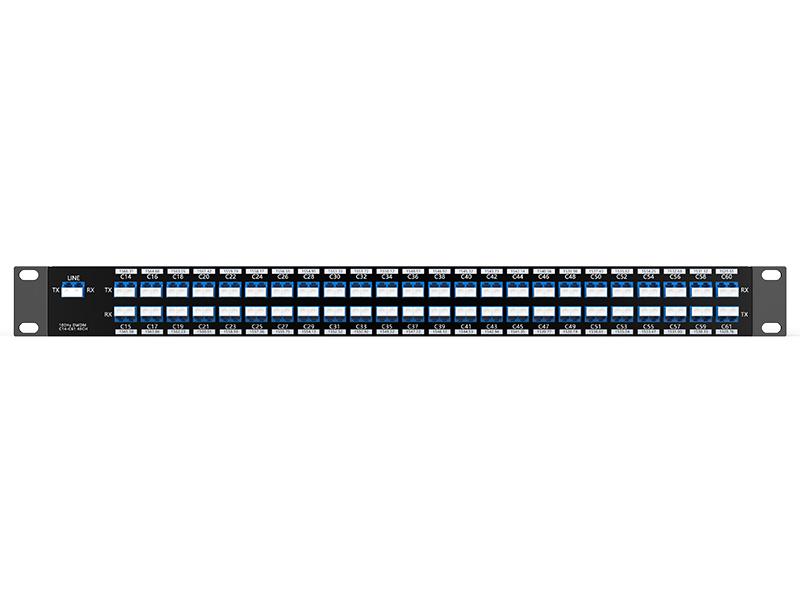

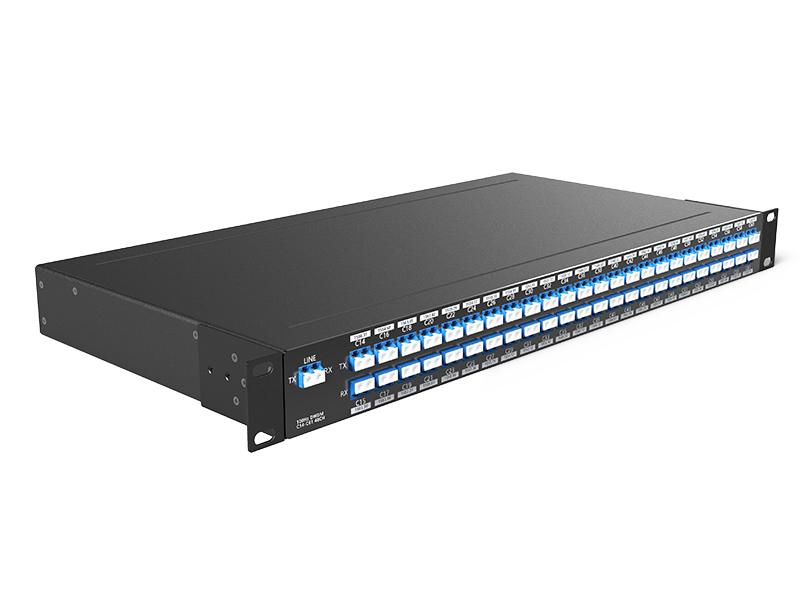

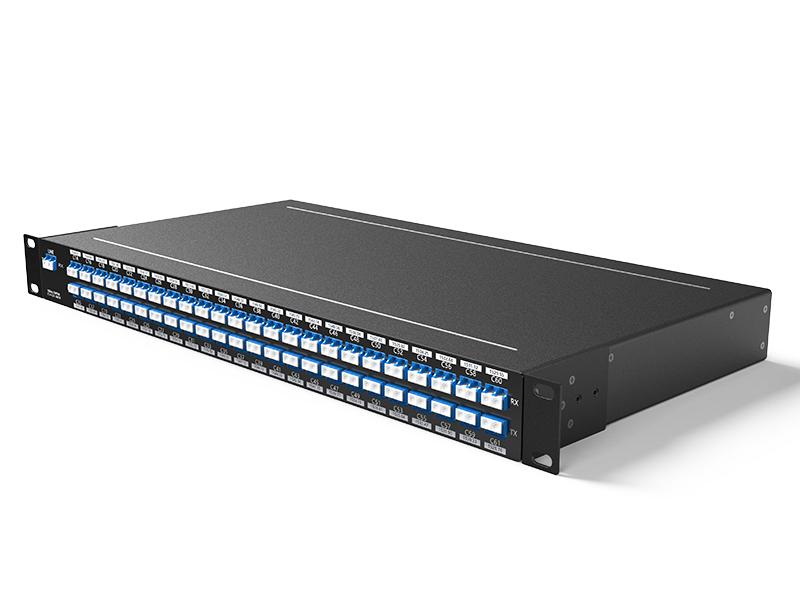

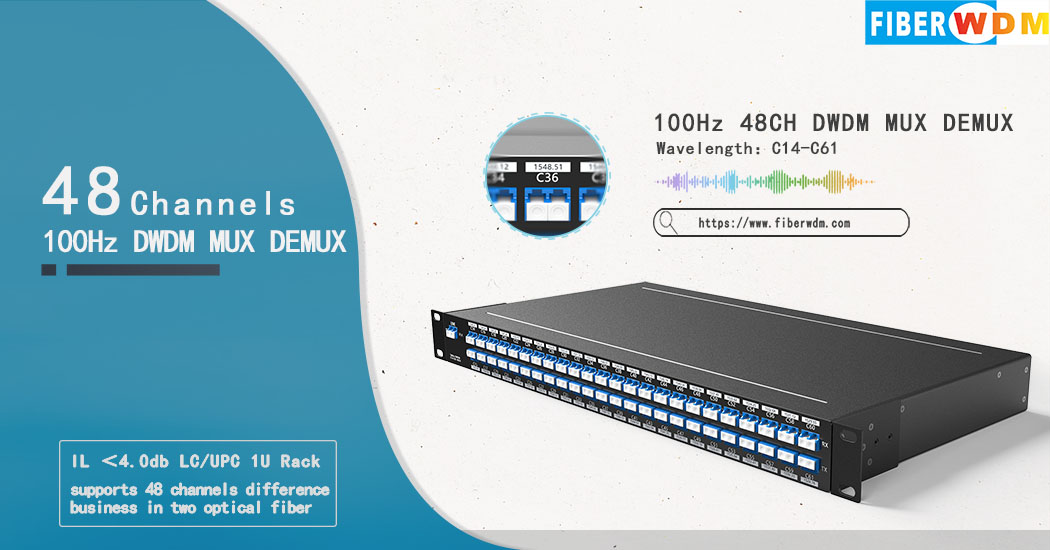

Dual Fiber 48CH C14-C61 DWDM MUX DEMUX, LC/UPC, 1U Rack
The 48ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C14 to C61(1566.31nm~1528.76nm), in accordance with the ITU-T G.694.1 100Hz grid, it maximizes the capacity of the C-band range.
The 48ch DWDM is totally passive DWDM device and support low insertion loss＜4.0dB). And it conjunct with The DWDM amplifiers and DCM device, the 48ch DWDM transfer system can support a long distance transmission.

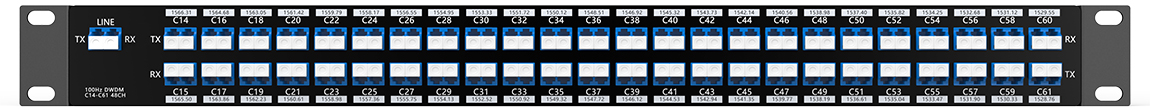

Product Panel
48CH DWDM MUX DEMUX

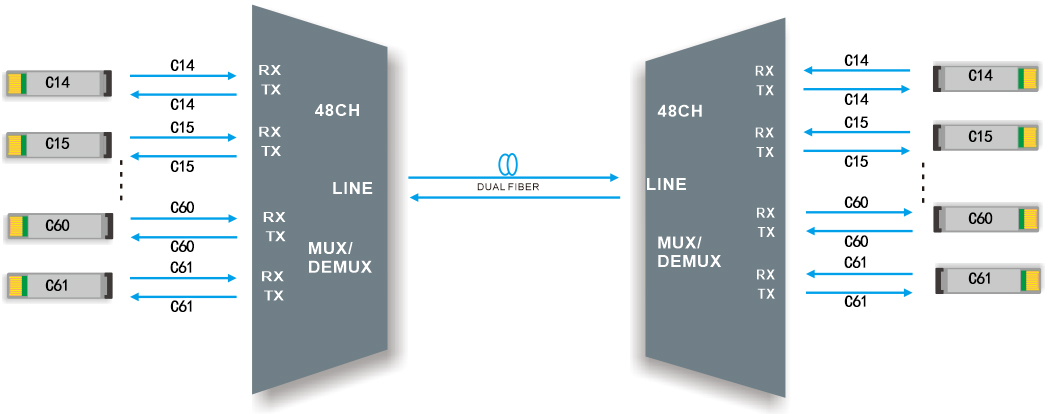

Line Link
48CH DWDM MUX DEMUX Dual fiber transmission
48 Channels DWDM MUX DEMUX , supports 48 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
48channels C14-C61 |
Channel Spacing |
100Hz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
AAWG (Gaussian) |
|
Insertion Loss |
≤ 4.0dB |
Link Loss |
≤ 7dB |
|
Return Loss |
≥ 40dB |
Directivity |
≥ 40dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥ 25dB
Non-adjacent ≥ 29dB
|
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
|
Net Weight |
3.5KG |

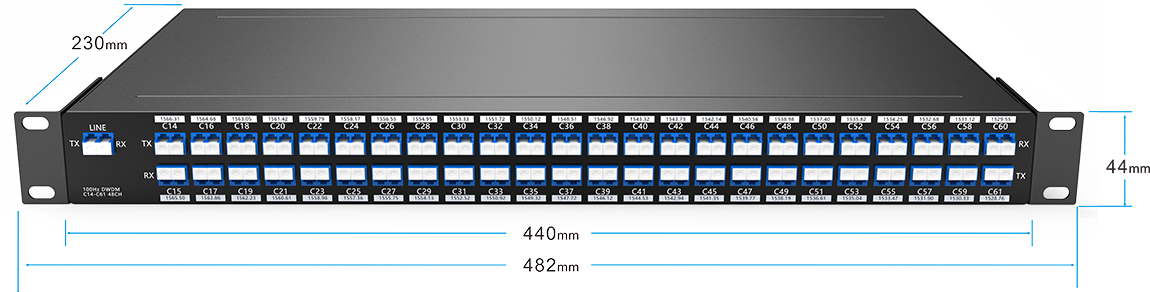

Dimensions (HxWxD) |
44*440*230mm |
Note: Specified with connectors.
Package Information
19” Inch 1U Rack
Order Information
|
Product No. |
Product description |
|
DMD48-1U01-C1461 |
DWDM MUX DEMUX 48CH (C14-C61), Dual fiber, LC/UPC, 1U Rack |
Note: We Support Customized Design, please contact us by email.
