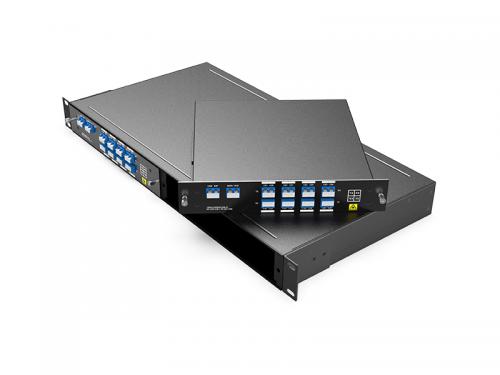

Single Fiber 8CH 16 Waves DWDM MUX/ DEMUX, With EXP,1310nm and Monitor Port, LC/UPC, LGX Box, and 2 Slots 1U Rack
The 8ch(16waves) DWDM MUX/ DEMUX, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C28(1560.61nm~1554.94nm), TX C29 to C36(1554.13nm~1548.51nm); And in side B, the waves are: RX C29 to C36(1554.13nm~1548.51nm), TX C21 to C28(1560.61nm~1554.94nm). it conjunct with the DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission in one fiber. And it is LGX box Plug-in designed, so it can plug in the 2-Slot 1U rack, Max capacity support 2*8channels in the system.
