PLC Splitter LGX Module



Fiberwdm’s PLC are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. The PLC devices have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40℃ to +85℃. The PLC devices have standard configurations of 1*4, 1*8, 1*16 and 1*32 configurations, as well as customized structures of 2*8, 2*16, 2*32 and 2*64



Product

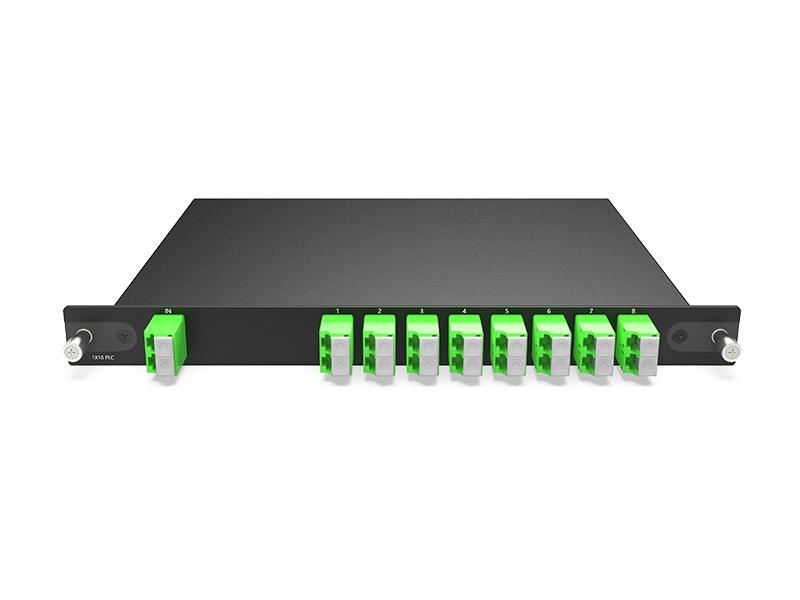

1*2 PLC SC/APC Plug-in LGX Box 215*150*20MM

1*2 PLC SC/APC Plug-in LGX Box 215*150*20MM

1*4 PLC SC/APC Plug-in LGX Box 215*150*20MM

1*4 PLC SC/APC Plug-in LGX Box 215*150*20MM

1*8 PLC SC/APC Plug-in LGX Box 215*150*20MM

1*8 PLC SC/APC Plug-in LGX Box 215*150*20MM

1*16 PLC LC/APC Plug-in LGX Box 215*150*20MM1*16 PLC LC/APC Plug-in LGX Box 215*150*20MM

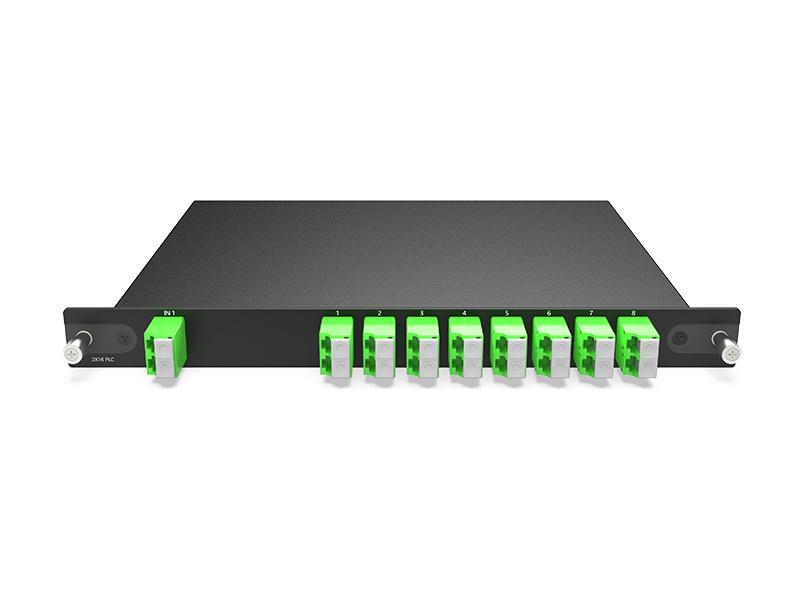

2*2 PLC SC/APC Plug-in LGX Box 215*150*20MM

2*2 PLC SC/APC Plug-in LGX Box 215*150*20MM

2*4 PLC SC/APC Plug-in LGX Box 215*150*20MM

2*4 PLC SC/APC Plug-in LGX Box 215*150*20MM

2*8 PLC SC/APC Plug-in LGX Box 215*150*20MM

2*8 PLC SC/APC Plug-in LGX Box 215*150*20MM

2*16 PLC LC/APC Plug-in LGX Box 215*150*20MM

2*16 PLC LC/APC Plug-in LGX Box 215*150*20MM



Features:



  • Compact design
  • Low insertion loss and low PDL
  • High reliability
  • High channel counts
  • Wide wavelength range
  • Large operating temperature range
  • Customized packaging and configuration



Applications



  • FTTx Systems
  • LAN, WAN and Metro Networks
  • Analog/Digital Passive Optical Networks
  • CATV Networks
  • Other applications in fiber optic systems



Compliance



  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE



1*N PLC Specifications



Port Configuration 1×2 1×4 1×8 1×16
Fiber Type SMF-28e or customer specified
Operating Wavelength (nm) 1260～1650
Insertion Loss  Typical 3.7 6.8 10.0 13.0
Max 4.0 7.2 10.5 13.5
Loss Uniformity (dB) Max 0.4 0.6 0.8 1.2
Return Loss (dB) Min 50 50 50 50
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3
Directivity (dB) Min 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5

Temperature Dependent Loss

(-40～85°C) (dB)		 Max 0.5 0.5 0.5 0.8
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
LGX Box Packaging Size (mm) 215*150*20MM
19’’ Rack mount Package(mm) 1U, 440*160*44

Notes:  1.Specifications without fiber connectors.

            2.Room temperature test .



2*N PLC Specifications



Port Configuration 2×2 2×4 2×8 2×16
Fiber Type SMF-28e or customer specified
Operating Wavelength (nm) 1260～1650
Insertion Loss  Typical 3.8 7.4 10.8 14.2
Max 4.2 7.8 11.2 14.6
Loss Uniformity (dB) Max 1.0 1.4 1.5 2.0
Return Loss (dB) Min 50 50 50 50
Polarization Dependent Loss(dB) Max 0.2 0.2 0.4 0.4
Directivity (dB) Min 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.8 0.8 0.8 0.8

Temperature Dependent Loss

(-40～85°C) (dB)		 Max 0.5 0.5 0.5 0.8
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Packaging Size (mm) 215*150*20MM
19’’ Rack mount Package (mm) 1U, 440*160*44

Notes:  1.Specifications without fiber connectors.

             2.Room temperature test .



Package (mm)

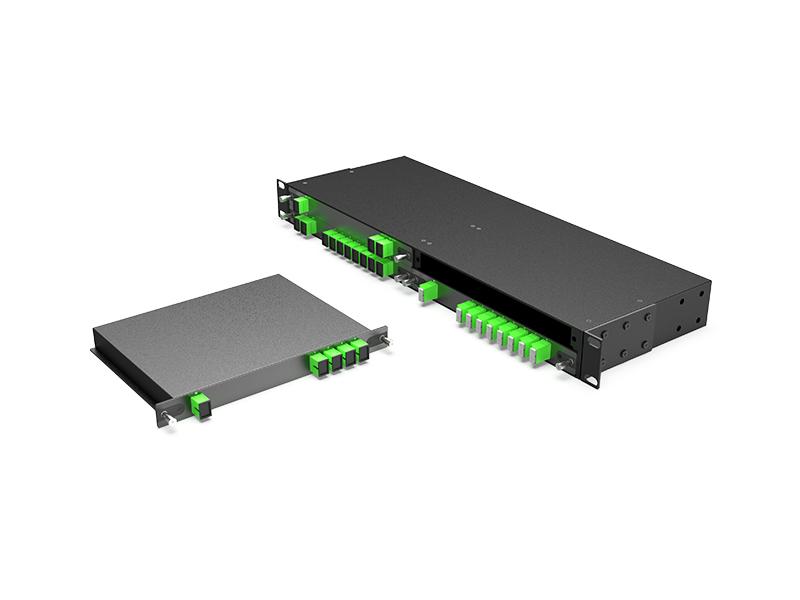

PLC Plug-in LGX Box

PLC Plug-in LGX Box 215*150*20MM

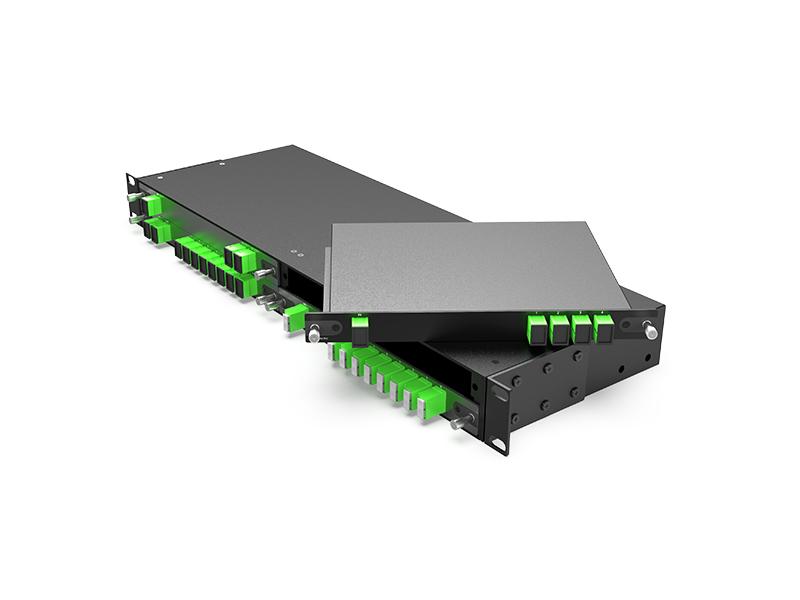

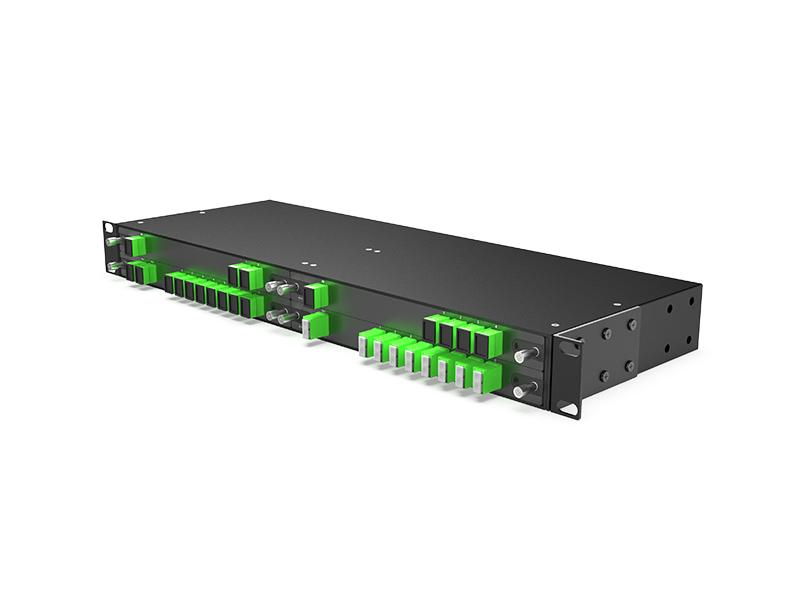

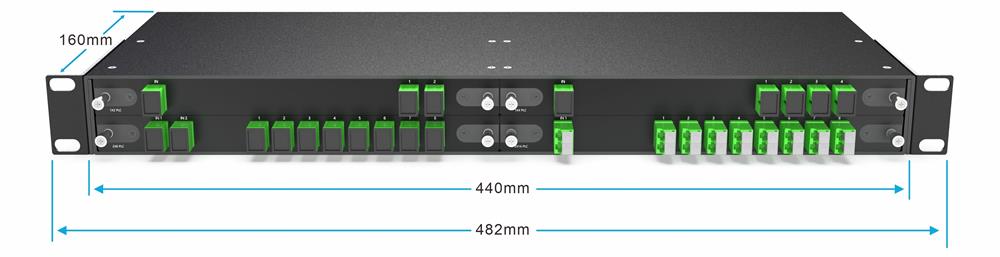

4-Slot 1U Rack for LGX BOX

4-Slot 1U Rack for LGX BOX



Order Information



Part No. Specifications
1P2-LGX02A 1x2 PLC SC/APC Plug-in LGX Box 215*150*20MM
1P4-LGX02A 1x4 PLC SC/APC Plug-in LGX Box 215*150*20MM
1P8-LGX02A 1x8 PLC SC/APC Plug-in LGX Box 215*150*20MM
1P16-LGX01A 1x16 PLC LC/APC Plug-in LGX Box 215*150*20MM
2P2-LGX02A 2x2 PLC SC/APC Plug-in LGX Box 215*150*20MM
2P4-LGX02A 2x4 PLC SC/APC Plug-in LGX Box 215*150*20MM
2P8-LGX02A 2x8 PLC SC/APC Plug-in LGX Box 215*150*20MM
2P16-LGX01A 2x16 PLC LC/APC Plug-in LGX Box 215*150*20MM
1U02-4LGX 19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm
